User manual Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW

Operating instructions and pdf manual for use - Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW User manual, User manual Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW, Panasonic, PT-DZ870ULW, WUXGA, 1-Chip, DLP, Projector,

User manual for Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW

Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 13 USD
We recommend checking out our discussion threads on the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.


User manual for the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW

The user manual for the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

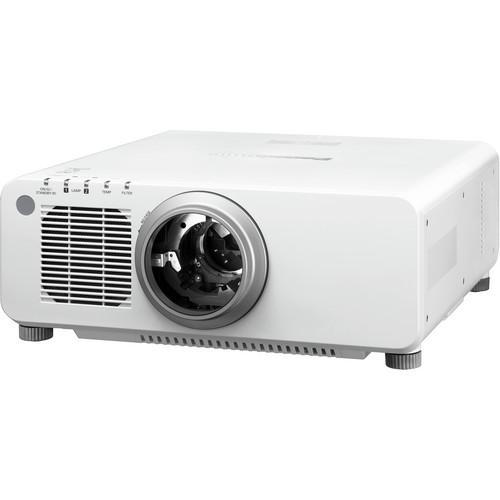

The white Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, entertainment and advertising, or as the hub of cutting-edge home theater applications.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULWDownload user manual for Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW
(PDF file, 21.08 MB)
Additional parameters of the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW:
Specifications
    Image Display
    Display System 1-Chip 0.67" / 17.02 mm DLP
    Native Resolution WUXGA - 1920 x 1200
    Format NTSC 4.43
    PAL 60, M, N
    SECAM
    HDTV Compatibility 480i
    480p
    576i
    576p
    720p
    1080i
    1080p
    Pixels 2,304,000
    Brightness Normal Mode: 8500 Lumens
    Eco Mode: 6800 Lumens
    Normal Mode: 4250 Lumens
    Eco Mode: 3400 Lumens

    The two higher lumens (8500/6800) are for the dual lamps and the two lower lumens (4250/3400) are for single mode
    Uniformity 90%
    Aspect Ratio 16:10
    Contrast Ratio 10000:1
    DLP Link 3D Yes
    Color Range R, G, B, W
    Scan Vertical: 15 - 100 kHz
    Horizontal: 24 - 120 Hz
    Features
    Keystone Correction Yes, Vertical: ± 40°
    Yes, Horizontal: ± 15°
    Picture-in-Picture Yes
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker None
    Input/Output Connectors
    Inputs/Outputs 1x M3 Remote (Input)
    1x M3 Control (Output)
    1x Ethernet LAN
    1x 5-BNC Video (Input)
    1x SDI Video (Input)
    1x RS-232C Control (Output)
    1x 9-pin VGA Control
    1x RS-232C Control (Input)
    1x BNC Video (Output)
    1x BNC Video (Input/Output)
    1x BNC Composite Video (Input)
    1x DVI-D Video (Input)
    1x 15-pin VGA Video (Input)
    1x HDMI Audio/Video (Input)
    Wireless LAN None
    General
    Lamp (Bulb) 2x UHM
    Watts 420 W
    Life Eco Mode: 4000 Hours
    Normal Mode: 3000 Hours
    Fan Noise Normal Mode: 40 dB
    Eco Mode: 35 dB
    Maximum Pixel Clock 162 MHz
    Remote Control Yes
    Security Cable Lock Slot
    Languages English
    French
    German
    Italian
    Japanese
    Korean
    Russian
    Spanish
    Traditional Chinese
    Power Requirements 120-240 VAC, 50/60 Hz
    Input Current 10 A / 5.2 A
    Heat Dissipation 3516 BTU
    3400 BTU

    Without light: 3400 BTU
    Power Consumption Normal Mode: 1030 W
    Standby Mode: 3 W
    Standby Mode (Network off): .3 W
    Altitude 0 - 8558' (0 - 2608 m)
    Temperature Operating
    32 to 113°F (0 to 45°C)
    Humidity: 10 - 80%
    Dimensions (WxHxD) 19.6 x 7.9 x 21.9" / 498.0 x 200.0 x 556.0 mm Without Lens
    Weight 40.3 lb / 18.28 kg With Supplied Lens
    Packaging Info
    Package Weight 51.6 lb
    Box Dimensions (LxWxH) 28.0 x 26.0 x 15.0"
    The user manual for the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW.

    The user manual lists all of the functions of the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector PTDZ870ULW. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
