User manual Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU

Operating instructions and pdf manual for use - Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU User manual, User manual Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU, Panasonic, PT-EZ770ZU, WUXGA, LCD, Projector, PT-EZ770ZU,

User manual for Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU

Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.


User manual for the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU

The user manual for the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

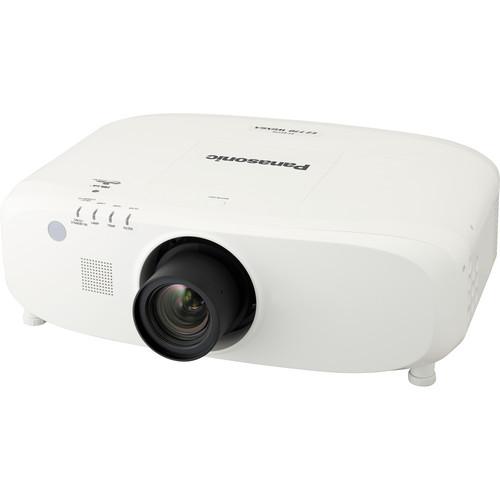

The PT-EZ770ZU WUXGA LCD Projector from Panasonic features WUXGA 1920 x 1200 resolution. It produces brightness up to 6500 lumens and the iris automatically adjusts to match the situation, which results in a 5000:1 contrast ratio. The projector features three transparent LCD panels (R/G/B) and a widescreen 16:10 aspect ratio. It's designed to afford multiple uses and solutions for the classroom and the boardroom.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZUDownload user manual for Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU
(PDF file, 27.88 MB)
Additional parameters of the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU:

Go To

Image Display
Display System 3-Chip 0.76" / 1.93 cm LCD
Native Resolution WUXGA - 1920 x 1200
Supported Resolutions VGA - 640 x 480
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480p
480i
576p
576i
720p
1080i
1080p
Pixels 6,912,000
Brightness 6500 Lumens
Uniformity 90%
Aspect Ratio 16:10
Contrast Ratio 5000:1
DLP Link 3D None
Scan Horizontal: 15 - 91 kHz
Vertical: 24 - 120 Hz
Lens
Lens F 1.7 - 2.3 (f = 26.9 - 45.4 mm)
Lens Shift Vertical: ±60%
Horizontal: ±10%
Throw Ratio 1.7 - 2.8:1
Projection Size 40 - 400" / 1016.00 - 10160.00 mm
Features
Keystone Correction Yes, Vertical: ± 40°
Yes, Horizontal: ± 30°
Picture-in-Picture Yes
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 10 W (Mono)
Input/Output Connectors
Inputs/Outputs 1x DisplayPort Video (Input)
1x DVI Video (Input)
1x 15-pin VGA Video (Input)
1x 5-BNC Video (Input)
1x BNC Composite Video (Input)
1x 15-pin VGA Video (Output)
1x Ethernet LAN
1x RS-232C Control (Input)
1x 9-pin VGA Control
1x M3 Remote (Input)
1x M3 Audio (Output)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x HDMI Audio/Video (Input)
Wireless LAN None
General
Lamp (Bulb) 1x UHM
Watts 400 W
Life Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Eco Mode: 4500 Hours
Fan Noise Normal Mode: 37 dB
Eco Mode: 31 dB
Eco Mode: 29 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Security Password Protection
Security Bar
Languages Dutch
English
French
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 590 W
Standby Mode: 10 W
Eco Mode: .3 W
Standby Mode: 37 W

37 W in Standby Mode, with audio on
Altitude 4593 - 8858' (1399 - 2699 m)
Temperature Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80%
Dimensions (WxHxD) 20.9 x 7.0 x 17.5" / 530.0 x 177.0 x 445.0 mm With Lens
Weight 23.4 lb / 10.61 kg With Lens
Packaging Info
Package Weight 38.55 lb
Box Dimensions (LxWxH) 24.45 x 23.1 x 12.0"
The user manual for the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU.

The user manual lists all of the functions of the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-EZ770ZU WUXGA LCD Projector PT-EZ770ZU. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
