User manual Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2

Operating instructions and pdf manual for use - Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2 User manual, User manual Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2, Panasonic, WJ-HD616, 16-Channel, H.264, Digi


User manual for Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2

Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 15 USD
We recommend checking out our discussion threads on the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Panasonic.



User manual for the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2

The user manual for the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

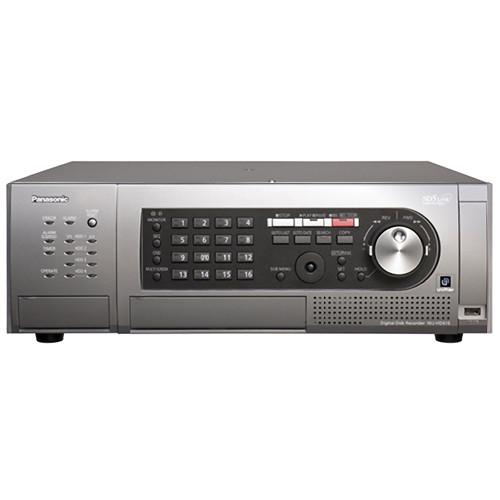

The Panasonic WJ-HD616 16-Channel H.264 Digital Disk Recorder (26 TB , NTSC) features a proprietary UniPhier system LSI platform to provide real-time field recording of 480/400 images per second (ips) and frame recording of 240/200 ips, and H.264 compression technology for more efficient use of disk space.

UniPhier is the unified Panasonic platform LSI for versatile applications with high quality AV, real time processing and low power consumption.

Dual Full HD 1080i (1,920 x 1,080) display output for both Live and Live/Playback is possible. Real-time images of up to 960 ips (NTSC) at 16ch on 2 monitors can be displayed.

This amazing new intelligence contributes to Superior Image of Super Dynamic 5. Plus, it offers efficient and reliable surveillance, preventing loss of vital scenes, and providing easy search and disk saving for recorder system. High resolution detection area and advanced motion analyze algorithm enables accurate motion detection. Stay detection and direction detection are also possible.

Basic performances have greatly improved and QVGA Live Output is possible even under narrow bandwidth while being independent from the setting of recording. It can also be integrated with i-Pro equipments or 3rd party system with PS-API.
If you own a Panasonic digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2:
Specifications
    Audio / Video IF
    TV System NTSC
    Video Inputs 16 x 1.0 V [p-p] / 75 Ω composite video inputs (BNC), 8x multiplexed control data (1 ~ 8 channel)
    Video Outputs 16 x 1.0 V [p-p] / 75 Ω composite video signal (BNC), active loop through outputs
    Monitor Outputs: 2 x HDMI, 2 x 1.0 V [p-p] / 75 Ω composite video signal (BNC), Video output (front RCA): 1 x 1.0 V [p-p] / 75 Ω composite video signal
    Audio Inputs 4 x -10 dBv, 10 KΩ (RCA) (1 ~ 4 channel)
    Audio Outputs Rear: 1 x -10 dBv, 600 Ω
    Front: 1 x -10 dBv, 600 Ω
    Audio / Video Format
    Recording H.264 (high profile), frame (720 x 480 pixels), field (720 x 240 pixels)
    Network H.264 (high profile)
    QVGA (320 x 240 pixels): Recording independent
    Field/Frame: Recording dependent
    Frame Rate 240 ips at field, 120 ips at frame
    Main Unit
    Camera Control Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode
    Mode 4 / 7 / 9 / 12 / 16 split screen display
    External Storage DVD±R (optional), SD (SDHC)
    Supported Web Browsers Windows Internet Explorer 7.0 (Microsoft Windows Vista Business 32-bit), Microsoft Internet Explorer 6.0 SP2 (Microsoft Windows XP Home/Professional SP2)
    Network
    Interface 2 x 10Base-T / 100Base-TX (RJ-45) (maintenance, network)
    Client 8 at a time
    Registration Up to 32 users
    Alarm/Events 16 x terminal inputs, 16 x camera alarm, PS-Data
    External IF
    Alarm 16 x alarm inputs (25 pin D-sub, make contact, N.O./N.C.)
    16 x alarm outputs (25 pin D-sub, open collector, N.O./N.C)
    1 x alarm reset input, 1 x alarm suspend input
    External Storage 3 x high speed serial interface, only for WJ-HDE400 Extension Unit.
    Recording Emergency recording input, external recording mode input
    Time Time adjustment input/output
    Controls Sequence switching signal input
    Power outage detection output, shut down ready output
    Controller 2 x RS-485 (RJ-11) PS-Data compatible for control from WV-CU650 or Matrix Switcher WJ-SX650
    RS-485 Camera Interface: 2 x RS-485 (RJ-11), 2/4 wire, half duplex, for 1 ~ 16 channels
    Mouse 1 x USB Mouse port (front)
    Built-In SD Card Slot 1 x SD/SDHC memory card slot (front)
    HDD
    Storage 26 TB
    Internal HDD Up to 4 HDDs, maximum 31 HDDs (with 3 x WJ-HDE400 extension units, 9 x HDDs installed in each unit)
    RAID RAID5/RAID6 supported (with WJ-HDB601)
    Power Source 120 VAC, 60 Hz
    Power Consumption 130 W
    Safety/EMC Standard UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA)
    Operating Temperature 41 to 113°F (5 to 45°C)
    Humidity Less than 85 % (without condensation)
    Dimensions 16.9 x 5.1 x 15.7 (430 x 132 x 400 mm), excluding rubber feet and projections
    Weight 30.8 lb ((14 kg) without HDD (factory default)
    37.4 lb (17 kg) with 4 HDDs
    The user manual for the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2 can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic digital video recorders (dvrs)s, where you can use our link to download the user manual for the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2.

    The user manual lists all of the functions of the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic WJ-HD616 16-Channel H.264 Digital Disk WJHD616/26000T2. User manuals are also available on the Panasonic website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
