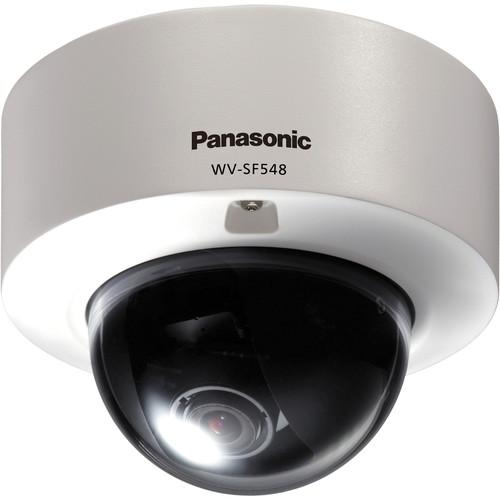

The Panasonic WV-SF548 Super Dynamic Full HD Vandal-Resistant Dome Network Camera offers high-quality 24-hour video surveillance (NTSC) in both day and night time lighting conditions.

Designed for day/night surveillance, this network camera captures clear images at F/1.3 even in locations with a minimum illumination of 0.3 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face super dynamic range technology offers blur-free images of the human face. Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in Full HD resolution of 1920 x 1080 at 30 fps. The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter. In addition, the Auto Back Focus adjusts the position of the MOS sensor to offer stable focus in both color and B&W modes.

The 2 area VIQS technology is particularly useful in installations where specific areas in a scene are of high interest while the rest of the scene does not need to be captured at the same level of detail. For example, at a parking lot entry or exit number plate capture is crucial, but the general scene of the entrance or exit area does not need to be recorded in high detail. For these types of scenarios, VIQS allows you to stay in control of bandwidth by reducing the utilization by up to 50%. Equipped with Digital Noise Reduction technology, the camera filters signals that could result in grainy images. Thanks to the picture in picture function, a cropping image or an alarm image can be added to an image and transmitted. When any movement is detected, alarm sources, including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and e-mail notification. As the WV-SF548 camera is Power over Ethernet (PoE) compatible, it can be installed almost anywhere without the need for an additional power supply.
If you own a Panasonic wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic WV-SF548 Super Dynamic Full HD WV-SF548 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic WV-SF548 Super Dynamic Full HD WV-SF548:
Specifications
Camera
Image Sensor 1/3 inch MOS sensor
Effective Pixels Approximately 3.1 megapixels
Scanning Mode Progressive scan
Scanning Area H x V: 4.51 x 3.38 mm
Minimum Illumination Color: 0.5 lux, B&W: 0.3 lux at F1.3 (Shutter: 1/30 s, AGC: High)
Color: 0.03 lux, B&W: 0.02 lux at F1.3 (Shutter: 16/30 s, AGC: High)
White Balance AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
Light Control Mode Outdoor scene: Automatic integration of ALC
Indoor scene (50 Hz): Automatic integration of ALC (up to 1/100 s)
Indoor scene (60 Hz): Automatic integration of ALC (up to 1/120 s)
ELC: (up to 1/10,000 s)
Shutter Speed Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
Super Dynamic On / Off
Dynamic Range 52 dB typical (Super Dynamic: On, Light Control Mode: Indoor)
Face Super Dynamic On / Off (Only at Super Dynamic: On)
Adaptive Black Stretch On / Off (Only at Super Dynamic: Off)
Automatic Gain Control On (Low, Mid, High) / Off
Electronic Sensitivity UP Off / Auto (2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s) Maximum
Simple Day/Night Mode Electrical Mode: Off / Auto
Digital Noise Reduction (DNR) High / Low
Video Motion Detection 4 areas, sensitivity: 15 steps, detection size: 10 steps
Privacy Zone Up to 2 zones, gray
Upside Down On / Off
VIQS Up to 2 zones
Camera Title (OSD) Up to 20 alphanumeric characters
Focus Adjustment ABF / Manual
Lens Distortion Compensation 256 steps
Lens
Focal Length 2.8 to 10 mm, 3.6x (8.4 to 30 mm, 10.8x with extra optical zoom (at 360p))
Angular Field of View H: 24.2 (tele) to 80.6°(wide)
Maximum Aperture Ratio 1 : 1.3 (wide) to 1 : 3.0 (tele)
Focusing Range 0.3 m to ∞
Adjusting Angle Horizontal: 180° (clockwise), 170° (counterclockwise),
Vertical: ±75 °, Image tilt adjustment range: ±100°
Browser GUI
Cropping/Enlargement H.264(2) / JPEG (VGA or 640 x 360) / JPEG (QVGA or 320 x 180)
Up to 4 image capture areas can be specified
Camera Control Brightness, Aux On / Off, Zoom (1, 2, 4x)
Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
Digital Zoom 1, 2, 4x controlled by browser GUI
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12 / 24H, Date: 5 formats on the browser, Daylight Savings Time (Manual/Auto)
Alarm Control Reset
One Shot Capture A still picture will be displayed on a newly opened window
GUI/Setup Menu Language English, Japanese, Italian, French, German, Spanish, Chinese, Russian
Supported OS Microsoft Windows 7
Microsoft Windows Vista
Microsoft Windows XP SP3
Supported Web Browsers Windows Internet Explorer 9.0 (32 bit)
Windows Internet Explorer 8.0 (32 bit)
Windows Internet Explorer 7.0 (32 bit)
Microsoft Internet Explorer 6.0 SP3
Network
Network IF 10Base-T / 100Base-TX, RJ-45 connector
Aspect Ratio 2 megapixel (16:9): H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
1.3 megapixel (16:9): H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
1.3 megapixel (4:3): H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
3 megapixel (4:3): H.264: 1,280 x 960, up to 15 fps
JPEG (MJPEG): 2048 x 1536, up to 15 fps
Transmission mode Constant bitrate / Framerate priority / Best effort
Frame Rate H.264 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Bit Rate/Client 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
Image Quality Low / Normal / Fine
Refresh Interval 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
Transmission Types Unicast / Multicast
Image Quality 10 steps
Refresh Interval 0.1 to 30 fps
Transmission Types JPEG (MJPEG): Pull / Push
Total Bit Rate 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocols IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, ICMPv6
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Maximum Concurrent Access Number Up to 14 users

Depends on network conditions

Cellular Phone Compatibility JPEG image
Mobile Terminal Compatibility iPad, iPhone, iPod touch
Face Detection On / Off
Alarm
Alarm Source 1 terminal input, VMD, Command alarm
Alarm Actions E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log without SDXC/SDHC/SD memory card: 1000 logs
Schedule Alarm / VMD / Access permission / H.264 recording
Input/Output
Monitor Output VBS: 1.0 V [p-p]/75 Ω, NTSC composite, RCA Jack
External I/O Terminals Alarm In / Out, Aux Out
General
Safety/EMC Standard UL (UL60950-1), FCC (Part15 Class A), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 Class A)
Power Source and Consumption 12 VDC: 510 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 115 mA (Class 2 device)

For UL listed model(s), only connect 12 VDC class 2 power supply

Ambient Operating Temperature 14 to 122°F (-10 to +50°C)
Ambient Operating Humidity 90 % or less (without condensation)
Shock Resistance Compliant with 20J IEC60068-2-75/ IEC 62262 IK10
Dimensions (Ø x H) 5.18 x 4.03" (132 x 102.5 mm)
Weight 1.57 lb (710 g)
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 8.583 x 7.795 x 6.221"
