User manual for the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810

The user manual for the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.

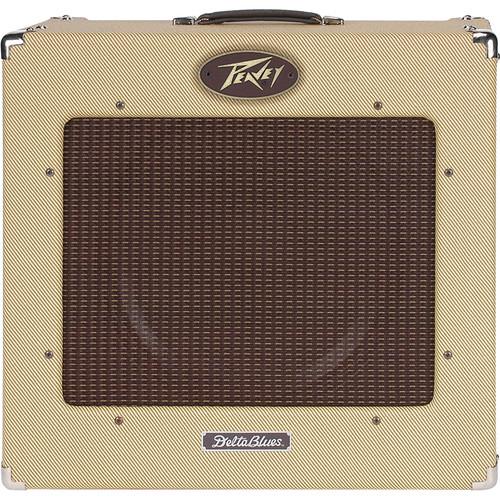

The Delta Blues 115 Tweed Tube Amplifier from Peavey is a true all-tube, 30 watt amplifier with a single 15" speaker optimized for blues. The amp features pre- and post-gain controls on the lead channel, 3-band passive EQ, a boost switch, external speaker jack, and an effects loop, as well as built-in tremolo with speed and intensity controls, and reverb. The amp is well-suited for jamming and live performances.
If you own a Peavey guitar amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810:
Power Amp Tubes: 4x 6BQ5/EL84s with 12AX7 driver
Rated Power & Load 30 W RMS into 16 or 8 ohms
Power @ Clipping (Typically) (5% THD, 1 kHz, 120 VAC line)
30 W RMS into l6 or 8 ohms
(Bias must be reduced to measure.)
Frequency Response +0, -2 dB, 50 Hz to 15 kHz, @ 20 W RMS into 16 ohms
Hum & Noise No greater than 80 dB below rated power
Power Consumption 150 watts, 50/60 Hz, 120 VAC (Domestic)
Preamplifier Tubes: 2x 12AX7

Specs are measured @ 1 kHz with the controls preset as follows:
Pre & Post (lead) @ 0
Reverb Level @ 0
Bass & Treble EQ @ 12
Middle EQ @ 0
Channel Select Out
Boost Switch Out
Nominal level is with Input Gain @ 6
Minimum level is with Input Gain @ 12
Preamp Normal Input Impedance: Very high Z, 470 kOhms
Lead Channel Nominal Input Level (Post Gain @ 12): -40 dBV, 10 mV RMS
Minimum Input Level (Post Gain @ 12): -70 dBV, 0.3 mV RMS
Normal Channel Nominal Input Level (Post Gain @ 12): -17 dBV, 140 mV RMS
Minimum Input Level (Post Gain @ 12): -28 dBV, 40 mV RMS
Maximum Input Level (Post Gain @ 12): 0 dBV, 1.0 V RMS
Equalization Custom bass, middle, and treble, passive-type EQ (Lead and Normal Channels)
Effects Sends Load Impedance: 1 kOhm or greater
Nominal Output Level: -6 dBV, 0.5 V RMS
Effects Return Impedance: High Z, 2 MOhms
Designed Input Level: -6 dBV, 0.5 V RMS
(Switching jack provides Effects Send to Effects Return connection when not used.)
Footswitch Input Jack 1: Reverb Defeat (when reverb control is raised),
Tremolo on/off
Jack 2: Normal/Lead Channel Select (when Lead activated),
Boost on/off
Weight 49.2 lb (22.3 kg)
The user manual for the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810 can be downloaded in .pdf format if it did not come with your new guitar amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey guitar amplifierss, where you can use our link to download the user manual for the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810.

The user manual lists all of the functions of the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810, all the basic and advanced features and tells you how to use the guitar amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey Delta Blues 115 Tweed Tube Guitar Amplifier 03327810. User manuals are also available on the Peavey website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.
