User manual for the Peavey Ecoustic E110 Acoustic Amplifier 03600120
The user manual for the Peavey Ecoustic E110 Acoustic Amplifier 03600120 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.

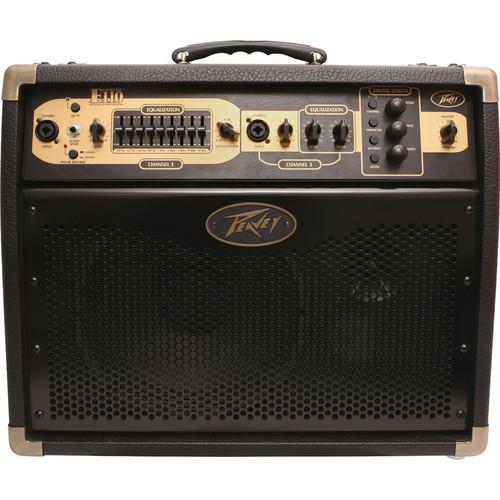

The Ecoustic E110 Acoustic Amplifier from Peavey is a versatile amplification system designed for acoustic instruments, vocals, and line-level devices such as samplers and audio players in performance and rehearsal applications.
|
If you own a Peavey guitar amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey Ecoustic E110 Acoustic Amplifier 03600120 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Peavey Ecoustic E110 Acoustic Amplifier 03600120:
| Rated Power | 100 W into 8 Ω load (internal with DDT compression) | | Frequency Response | +0, -3 dB, 20 Hz to 20 kHz @ 60 Wrms into 8 Ω | | Total Harmonic Distortion | <0.5%, 1 to 50 Wrms, 20 Hz to 20 kHz, 8 Ω | | Dynamic Range | DDT: >20 dB | | Maximum THD @ 1kHz | DDT:
<0.5% THD for 6 dB overload
<1% THD for 20 dB overload | | Hum and Noise | >90 dB below rated power | | Power Consumption | 150 W, 60 Hz, 120 VAC (domestic)
150 W, 50/60 Hz, 220 to 240 VAC (export) | | Settings | The following specs are measured @ 1 kHz with the controls preset as follows:
Channel 1 Gain @ 5
Graphic EQ Sliders @ 0 dB
Notch Filter @ 0 dB
Channel 2 Gain @ 5
Low EQ @ 0 dB
High EQ @ 0 dB
All Effects Bypassed
Master Volume @ 5 | | Input | For Channel 1:
1/4" Input:
Impedance: High Z, 10 MΩ
Nominal Input Level: -8.40 dBV, 380 mVrms
Maximum Input Level: 3.52 dBV, 1.50 Vrms
XLR Input:
Impedance: Low Z, 8.2 kΩ
Nominal Input Level: -25.1dBV, 55.8 mVrms
Maximum Input Level: -13.2 dBV, 220 mVrms
For Channel 2:
1/4" Input:
Impedance: High Z, 10 MΩ
Nominal Input Level: -8.40 dBV, 380 mVrms
Maximum Input Level: 3.52 dBV, 1.50 Vrms
XLR Input:
Impedance: Low Z, 8.2 kΩ
Nominal Input Level: -25.1 dBV, 55.8 mVrms
Maximum Input Level: -13.2 dBV, 220 mVrms | | Equalization | Channel 1:
Nine-band, Constant-Q Graphic EQ
Frequency Centers (Hz) at 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k
Available ±15 dB of boost/cut on each band
Channel 2:
Low and High Shelving-type EQ
Corner Frequencies at 80 Hz and 8 kHz, respectively
Available ±15dB of boost/cut on each
Balanced XLR Line Output (Rear):
Output Impedance: 150 Ω
Nominal Output Level: 3.23dBV, 1.45 Vrms
Available Ground Lift capability
System Hum & Noise @ Nominal Input Level:
>75 dB below rated power (20 Hz to 20 kHz un-weighted) | | Filter | Notch Filter:
Channel 1: Available 18 dB of cut at 150 Hz | | Dimensions (H x W x D) | 18.0 x 20.7 x 14.7" (457.2 x 525.8 x 373.4 mm) | | Weight | 45.0 lb (20.4 kg) | |
The user manual for the Peavey Ecoustic E110 Acoustic Amplifier 03600120 can be downloaded in .pdf
format if it did not come with your new guitar amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Peavey users keep a unique electronic library
for Peavey guitar amplifierss,
where you can use our link to download the user manual for the Peavey Ecoustic E110 Acoustic Amplifier 03600120.
The user manual lists all of the functions of the Peavey Ecoustic E110 Acoustic Amplifier 03600120,
all the basic and advanced features and tells you how to use the guitar amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Peavey service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Peavey Ecoustic E110 Acoustic Amplifier 03600120. User manuals are also
available on the Peavey website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.
