User manual for the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320

The user manual for the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

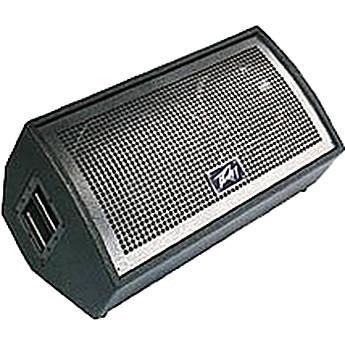

The black, left QW ML 2-Way Full-Range Floor Monitor Loudspeaker from Peavey uses the Pro Rider 15" woofer along with a 44XT compression driver and a CH-6 conical constant directivity horn. The 15" woofer features a Kevlar impregnated, water-resistant treated cone and dust cap for excellent environmental stability. The 44XT 4" titanium diaphragm compression driver handles the high frequencies and features the Radialinear Planar Phase Correction System that provides smooth and extended high frequency response. The CH-6 conical constant directivity horn provides an even 60° coverage in all directions.
If you own a Peavey pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320:
Transducer Low Frequency Section: 1 x Pro Rider 15" (38 cm) woofer, vented 1508-8 Cu CP
High Frequency Section: 1 x 44XT 1.6" (4.1 cm) exit, 4" (100 mm) voice coil compression driver on a CH 6 CD horn (without adapter)
Frequency Response Anechoic Environment: 67 Hz to 18 kHz (±3 dB)

3.3' (1 m) on-axis, swept-sine

Usable Low Frequency Limit -10 dB Point: 55 Hz
Power Handling Full Range: 1000 W continuous, 2000 W program, 4000 W peak
Low Frequency Section: 500 W continuous, 1000 W program, 2000 W peak
High Frequency Section: 100 W continuous, 200 W program, 400 W peak
SPL 1W/1m in Anechoic Environment: Full Range: 97.0 dB SPL, (2.83 V input)
Low Frequency Section: 98.6 dB SPL, (2.83 V input)
High Frequency Section: 108.4 dB SPL, (2.83 V input)
Maximum Sound Pressure Level (SPL) 3.3' (1 m): Full Range: 127.0 dB SPL continuous, 133.0 dB SPL peak
Low Frequency Section: 125.6 dB SPL continuous, 131.6 dB SPL peak
High Frequency Section: 128.4 dB SPL continuous, 134.4 dB SPL peak
Radiation Angle Measured at -6 dB Point of Polar Response: 40° (H) x 90° (V)
Box Tuning Frequency Low Frequency Section: 52 Hz
Harmonic Distortion 1% Rated Power
2nd Harmonic: 100 Hz: 0.81%; 1 kHz: 0.36%
3rd Harmonic: 100 Hz: 0.21%; 1 kHz: 0.12%

10% Rated Power
2nd Harmonic: 100 Hz: 2.00%; 1 kHz: 0.96%
3rd Harmonic: 100 Hz: 0.62%; 1 kHz: 0.19%
Crossover Frequency Low Frequency to High Frequency: 940 Hz (internal passive)
Crossover Slope Recommended Frequency Region and Slope: 1000 Hz at 24 dB/octave (low frequency to high frequency)
Offset Time: Low Frequency: 0.00 ms; High Frequency: 0.27 ms
Impedance Full Range: 8.0 Ω nominal, 6.8 Ω minimum
Low Frequency: 8.0 Ω nominal, 7.8 Ω minimum
High Frequency: 8.0 Ω nominal, 9.7 Ω minimum
Input Connections Full Range: 3 x Neutrik NL4 (2 x primary side, 1 x secondary side)
Bi-Amp Input: 1 x Neutrik NL4 switching
Bi-Amp Thru: 2 x Neutrik NL4 (1 x primary side, 1x secondary side)
Enclosure Material 0.75" (18 mm) plywood finished in black Hammer Head coating
Mounting This unit is not designed for overhead suspension
Dimensions (H x W x D) 17.75 x 29.75 x 21.25" (45.1 x 75.6 x 54.0 cm)
Weight 85.0 lb (38.6 kg)
The user manual for the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey pa speakerss, where you can use our link to download the user manual for the Peavey QW ML 2-Way Full-Range Floor Monitor Loudspeaker 00571320.
