User manual Peavey RX14 Compression Driver (Tweeter) 03495480

Operating instructions and pdf manual for use - Peavey RX14 Compression Driver (Tweeter) 03495480 User manual, User manual Peavey RX14 Compression Driver (Tweeter) 03495480, Peavey, RX14, Compression, Driver, Tweeter, 03495480,


User manual for Peavey RX14 Compression Driver (Tweeter) 03495480

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Peavey RX14 Compression Driver (Tweeter) 03495480
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Speaker Accessories
  • Safety instructions
  • Startup and operation of the speaker accessories
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 54 USD
We recommend checking out our discussion threads on the Peavey RX14 Compression Driver (Tweeter) 03495480, which address similar problems with connecting and setting up Speaker Accessories Peavey.



User manual for the Peavey RX14 Compression Driver (Tweeter) 03495480

The user manual for the Peavey RX14 Compression Driver (Tweeter) 03495480 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Speaker Accessories.

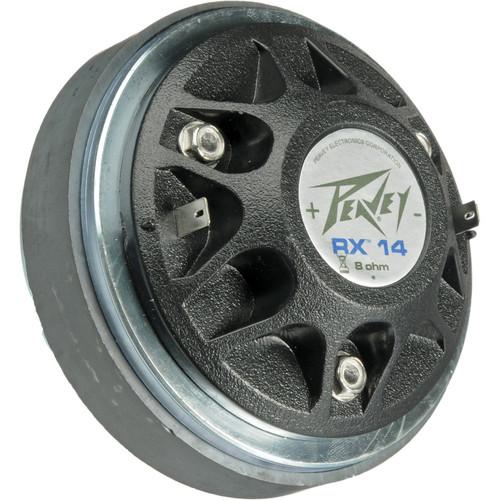

The Peavey RX14 Driver is a 1.4" titanium compression driver (tweeter) found in Peavey PR series speaker cabinets, such as the PR12. The RX14 simply replaces blown or faulty compression drivers, and restores the cabinet's high and mid frequency response.
If you own a Peavey speaker accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey RX14 Compression Driver (Tweeter) 03495480 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey RX14 Compression Driver (Tweeter) 03495480:
Driver Size 1.4" (35.55mm)
Throat Size 0.938" (23.8mm)
Impedance Nominal: 8 ohms
Minimum: 7.1 ohms
DC Resistance 6.8 ohms
Power Capacity 1000Hz to 20,000Hz
120W peak 60W program 30W continuous
Sensitivity 104dB SPL 1 Watt at 1 meter
On-axis on 90º H x 45º V horn
Efficiency Nominal: 30%
Frequency Response 1.5kHz to 20kHz
Crossover Recommended: 1,800 Hz at 12 dB / Octave
Lowest Recommended: 2,000 Hz at 12 dB / Octave
Material Diaphragm: Commercially pure titanium
Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
Voice Coil Diameter: 1.4" (34.4mm)
Flux Density 11,500 gauss (1.15T)
Dimensions 3.54 x 2.40" (90 x 61mm) (Diameter x Depth)
Horn Coupling Diameter: 0.938" (23.8mm)
Horn Coupling Threads: Standard 1 3/8" / 18"
Weight 2.1 lb (33.6 oz)
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 4.4 x 4.4 x 3.5"
The user manual for the Peavey RX14 Compression Driver (Tweeter) 03495480 can be downloaded in .pdf format if it did not come with your new speaker accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey speaker accessoriess, where you can use our link to download the user manual for the Peavey RX14 Compression Driver (Tweeter) 03495480.

The user manual lists all of the functions of the Peavey RX14 Compression Driver (Tweeter) 03495480, all the basic and advanced features and tells you how to use the speaker accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey RX14 Compression Driver (Tweeter) 03495480. User manuals are also available on the Peavey website under Pro Audio - Live Sound - Speaker Accessories.
