User manual for the Peavey Scorpion SP-15825 Low Frequency Driver (15")
The user manual for the Peavey Scorpion SP-15825 Low Frequency Driver (15") provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Speaker Accessories.

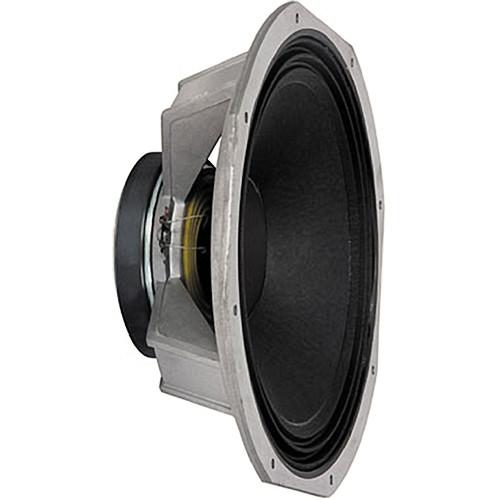

The 15” Scorpion SP-15825 Low Frequency Driver from Peavey is used with Scorpion Speakers.
|
If you own a Peavey speaker accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey Scorpion SP-15825 Low Frequency Driver (15") in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Peavey Scorpion SP-15825 Low Frequency Driver (15"):
| Power Capacity | 800 W peak
400 W program
200 W continuous | | Sensitivity | 98.7 dB / 1 W 1 m | | Usable Frequency Range | Approximately 40 Hz to 2 kHz | | Cone Material | Kevlar impregnated cellulose | | Voice Coil Diameter | 2.5" (63.5 mm) | | Material | Aluminum ribbon wire
Kapton former
Nomex stiffener
Solderless diffusion welded OFHC copper leads | | Nominal Impedance | 8 Ω | | DC Resistance (Re) | Of the Driver: 5.6 Ω | | Surface Area of Cone (Sd) | 130.200 sq. in (0.084 sq. m) | | Efficiency | Voice Coil & Magnet System: 17.1 T/m
Electrical to Acoustical Conversion Efficiency: 4.7% | | Resonance | Free Air: 50.1 Hz | | Volume | 132.4 liters | | Force | Restorative: 174.5 (µM/N) | | Mass | Total: 2.47 oz (70.30 g) | | Characteristics | Resonance Characteristics of Mechanical Factors: 6.05
Resonance Characteristics of Electrical Factors: 0.345
Resonance Characteristics of Electrical & Mechanical Factors: 0.326 | | Distance | Distance the cone can move in one direction: 0.12" (0.31 cm) | | Inductance | 0.3 mH | | SPL | 98.7 dB, 1 W/1 m | | Air Displacement | 13.9 cu. in (227 ml) | | Volume Displaced | 201 cu. in (3294 ml) | | Continuous Power | 400 Wpgm | | Cabinet | Enclosure: CE115, 215, 215C, 215D, 115TF, SP5XT, SP5G, and SP5X Enclosures
115TF, DS1502, 388S, SP3Ti, SP5Ti, 115TF Bleached Oak, DJS-4, DJS-5, TLS 6X, and SP5 Enclosures | | Diameter | 15" (381 mm) | | Weight | 12.75 lb (5.8 kg) | | Package Weight | 18.7 lb | | Box Dimensions (LxWxH) | 18.4 x 17.6 x 7.6" | |
The user manual for the Peavey Scorpion SP-15825 Low Frequency Driver (15") can be downloaded in .pdf
format if it did not come with your new speaker accessories, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Peavey users keep a unique electronic library
for Peavey speaker accessoriess,
where you can use our link to download the user manual for the Peavey Scorpion SP-15825 Low Frequency Driver (15").
The user manual lists all of the functions of the Peavey Scorpion SP-15825 Low Frequency Driver (15"),
all the basic and advanced features and tells you how to use the speaker accessories.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Peavey service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Peavey Scorpion SP-15825 Low Frequency Driver (15"). User manuals are also
available on the Peavey website under Pro Audio - Live Sound - Speaker Accessories.
