User manual Peavey TransTube Series Bandit 112 100W Guitar Combo Amp

Operating instructions and pdf manual for use - Peavey TransTube Series Bandit 112 100W Guitar Combo Amp User manual, User manual Peavey TransTube Series Bandit 112 100W Guitar Combo Amp, Peavey, TransTube, Series, Bandit, 112, 100W, Guitar, Combo,


User manual for Peavey TransTube Series Bandit 112 100W Guitar Combo Amp

Peavey TransTube Series Bandit 112 100W Guitar Combo Amp
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers
  • Safety instructions
  • Startup and operation of the guitar amplifiers
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp, which address similar problems with connecting and setting up Guitar Amplifiers Peavey.



User manual for the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp

The user manual for the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.

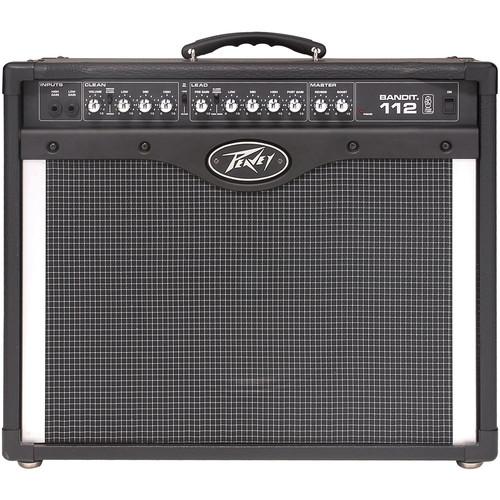

The Peavey TransTube Series Bandit 112 is a 100W combo amp with a 12" Blue Marvel speaker and TransTube circuitry that aims to recreate the tone of a tube amp. This versatile amp has many features like high and low gain inputs, footswitchable boost, clean and lead channels (footswitch is sold separately), and an effects loop.

High, Mid, and Low tone controls are featured on both the clean and lead channels, as well as an EQ switch on each channel to further control the tone. The amp also has pre and post gain controls (for the lead channel), reverb and boost controls, speaker simulated direct output, and damping level adjustment.
If you own a Peavey guitar amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp:
Specifications
    Power Output: 100 W
    Rated Power and Load (with Power Level @ 100%): 80 W RMS into 8 ohms, 100 W RMS into 4 ohms
    Consumption: 300 W @ 60 Hz, 120 VAC
    Power @ Clipping (Typically): (1 kHz, 120 VAC line) 80 W RMS into 8 ohms, 100 W RMS into 4 ohms
    Frequency Response +0, -3 dB 100 Hz to 20 kHz @ 65 W RMS into 8 ohms
    Hum and Noise Greater than 90 dB below rated power
    Speaker 12" Blue Marvel
    Effects Sends Load Impedance: 1 kOhm or greater
    Nominal Output Level: -5.4 dBV, 535 mV RMS
    Effects Return Load Impedance: High Z, 22 kOhms
    Designed Input Level: -5.4 dBV, 535 mV RMS
    Output Level Boost Level @ 10: + 10 dB boost
    Speaker Simulated Direct Output Level @ 10: 700 mV, -3 dBV
    System Hum & Noise @ Nominal Input Level: (20 Hz to 20 kHz unweighted) greater than 80 dB below rated power
    Inputs 1/4" High Gain
    1/4" Low Gain
    1/4" Effects Loop (Return)
    1/4" Remote Switch for Optional Footswitch
    Outputs 1/4" Effects Loop (Send)
    1/4" Speaker Simulated Direct Output
    1/4" External Speaker Jack (min. external speaker impedance is 8 ohms)
    Controls Front Panel Volume
    Vintage/Classic/Warm Switch
    Low, Mid, and High Clean Frequency Controls
    Channel Select Switch
    Pre Gain
    Classic/Modern/High Gain Switch
    Low, Mid, and High Frequency Controls
    Post Gain
    Reverb
    Volume Boost
    Power Switch
    Controls Rear Panel Speaker Simulated Direct Output Level
    Power Level
    Damping
    Casters No
    Dimensions (WxDxH) 20.9 x 23.3 x 11.3" (53.0 x 59.1 x 28.6 cm)
    Weight 40.9 lb (18.6 kg)
    The user manual for the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp can be downloaded in .pdf format if it did not come with your new guitar amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey guitar amplifierss, where you can use our link to download the user manual for the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp.

    The user manual lists all of the functions of the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp, all the basic and advanced features and tells you how to use the guitar amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey TransTube Series Bandit 112 100W Guitar Combo Amp. User manuals are also available on the Peavey website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.
