User manual for the Peavey Triflex II 3-Way 2-channel Sound Reinforcement 03008830
The user manual for the Peavey Triflex II 3-Way 2-channel Sound Reinforcement 03008830 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

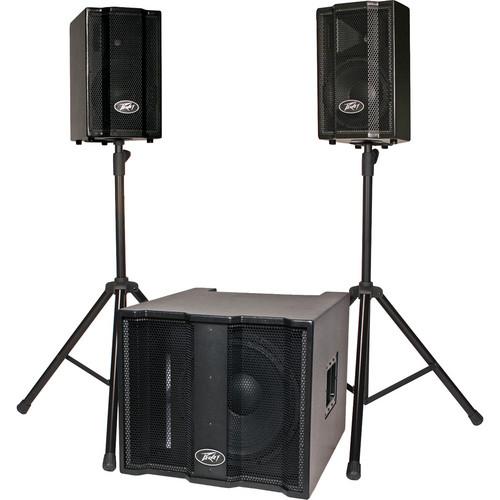

The Triflex II 3-Way 2-channel Sound Reinforcement System from PEAVEY is a 1000 Watt three piece, 2-channel sound system, already tweaked for sound reinforcement, DJ gigs, and various music playback duties. Consisting of a shared subwoofer cabinet and a pair of satellite speakers, the system has been pre-engineered for a balanced sound and a crisp, punchy presentation. This system is capable of a 3-way effective performance that provides a clear sound at high output levels, with plenty of punchy bass.
|
If you own a Peavey portable pa systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey Triflex II 3-Way 2-channel Sound Reinforcement 03008830 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Peavey Triflex II 3-Way 2-channel Sound Reinforcement 03008830:
| Transducer | Transducer complement: 1 x 15" woofer, custom heavy-duty | | Impedance | Nominal Impedance: 8 Ω | | Power Handling | Power Handling, Transducer: 350 W
Continuous,Program: 700 W | | Tuning Frequency Range | Box Tuning Frequency (Fbox): 48 Hz | | Frequency Response | Frequency Response, 1 meter on-axis,swept-sine in anechoic environment (thru system electronics): 40 Hz to 105 Hz | | Frequency | Usable Low frequency Limit (-10 dB point): 34 Hz | | Sound Pressure | Sound Pressure Level, 1 Watt, 1 meter in 1 / 2 space environment: 102 dB
Maximum Sound Pressure Level (1 meter,1 / 2 space): 127 dB | | Dimensions | Height in Transport mode: 32.0" (81.2 cm)
Dimensions (H x W x D): 19.6 X 28.0 X 28.1" (49.7 x 71.1 x 71.3 cm)(Includes feet)
(unit down on feet) 19.6" X 32.0" X 28.1"(49.7 x 81.2 x 71.3 cm) (Includes feet and casters) | | Weight | 98.0 lb ( 44.5 kg) | | Frequency | Low Frequency Section: 1 x 10" (2.5 x 25.4 cm) woofer, custom heavy-duty
High Frequency Section: 1 x 1.4" titanium compression driver on a Quadratic Throat Waveguide with 75° by 75° coverage pattern | | Impedance | Nominal Impedance: 4 Ω | | Power Handling | Power Handling, Satellite System: 200 W continuous, 400 W program, 800 W peak | | Tuning | Box Tuning Frequency (Fbox): 84 Hz | | Frequency Response | Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 88 Hz to 20 kHz | | Sound Pressure | Sound Pressure Level, 1 Watt, 1 meter in 1 / 2 space environment: 101 dB
Maximum Sound Pressure Level (1 meter,1 / 2 space): 124 dB | | Dimensions (H x W x D) | 19.6 X 11.8 X 11.8 (49.7 x 29.9 x 29.9 cm)(Upright, Includes feet) | | Weight | 24.0 lb (10.9 kg) | | Crossover Frequency | Active Crossover Frequency: 120 Hz, 24 dB/Octave | | Sound Pressure | Maximum Sound Pressure Level (1 meter, half-space): 129 dB | | Dimensions | Dimensions when in transport orientation, on casters (H x W x D): 43.0 x 20.3 x 23.5" (109.2 x 51.5 x 59.6 cm) (Includes all feet) | | Cable | Speaker Cables: Two 15 foot 16 ga. with 4-pin twist-lock connectors on each end. | | Power Output | Subwoofer Amp Power Output: 500 W peak, 250 W continuous, into 8 Ω
Satellite Amps Power Output: 250 W peak power, 125 W continuous, into 4 Ω | | Input | Inputs (Line Level): Left channel XLR or 1 / 4" phone jack combo input (female)
Right channel XLR or 1 / 4" phone jack combo input (female) | | Impedance | Input Impedance: 20 k Ω balanced, 10 k Ω unbalanced (single-ended) | | Thru | Thru (Outputs, Line Level): Left channel XLR full-range output (male)
Right channel XLR full-range output (male) | | Speaker Output | Speaker Level Outputs: Left channel 4-pin twist-lock professional connector
Right channel 4-pin twist-lock professional connector | | System Control | Master System Level (Left & Right Gain)
Subwoofer level control
Ground lift switch
Power Switch (On rear of amp panel when the Subwoofer is in use position, with rubber feet on the floor) | | Frequency Response | Nominal Amplifier Frequency Response: +0, -2 dB from 10 Hz to 20 kHz | | Hum and Noise | Greater than 90 dB below rated power | | Dynamic Range | DDT Dynamic Range: Greater than 18 dB | | THD | Typically less than 0.05 % | | Filter Protection | Infrasonic Filter Protection: 36 dB/octave roll-off | | Power Requirements | Domestic 100 to 120 VAC, 50 to 60 Hz, 230 W
Export 220 to 230 VAC, 50 to 60 Hz, 230 W | | Package Weight | 190.0 lb | | Box Dimensions (LxWxH) | 52.0 x 30.0 x 25.1" | |
