User manual for the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6

The user manual for the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Matrix Switches.

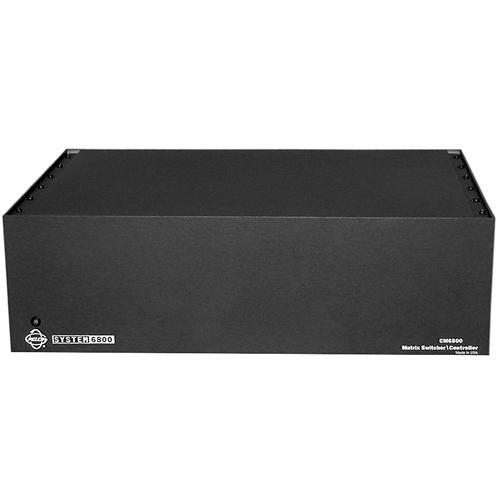

The Pelco CM6800-32X6 is a highly versatile, single box solution for medium-sized matrix switch applications. It accepts up to 32 video inputs and offers 6 monitor outputs for viewing and control of cameras, domes, PTZs, multiplexers and other devices. Each camera can be individually selected for terminating or looping video input by setting switches on the rear panel. A user-friendly on-screen menu system offers programming in eight different languages and can be accessed directly from the switcher via a local or remote keyboard or by using an external Windows based computer.
If you own a Pelco matrix switches and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6:
Signal System NTSC
Channels 32
Connectors Video In: BNC x32
Video Out (loop through): BNC x32
Video Output to Monitor: BNC x6
Keyboard Capacity: x10
Data Ports: x5
PTZ Control Port: x1

Alarm Eight, individually programmable for N.O. or N.C. on rear panel (plus an additional 128, via ALM2064, Alarm Interface Units, providing a total of 136 possible)
Languages Programming menus and onscreen text are provided in English, French, German, Italian, Polish, Portuguese, Russian, and Spanish.
Power Requirements 120 VAC
Power Consumption 10W
Operating Temperature 20 - 120 F
-70 ~ +49 C
Dimensions (WxHxD) 17.4 x 5.3 x 12.3"
(44.2 x 13.3 x 31.1cm)
Weight 11.6 lb
(5.2 kg)
Packaging Info
Package Weight 18.55 lb
Box Dimensions (LxWxH) 16.75 x 12.25 x 12.25"
The user manual for the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6 can be downloaded in .pdf format if it did not come with your new matrix switches, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco matrix switchess, where you can use our link to download the user manual for the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6.

The user manual lists all of the functions of the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6, all the basic and advanced features and tells you how to use the matrix switches. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco CM6800-32X6 32 Input 6 Output CM6800-32X6. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Matrix Solutions - Matrix Switches.
