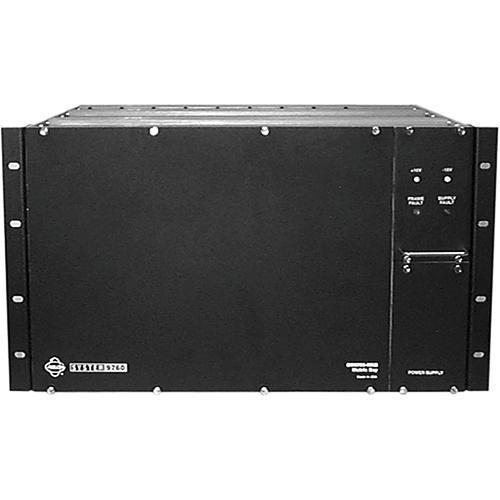

The Pelco CM9765-MXB Video Matrix Bay is used with 9765 Series Matrix Switchers and includes a power supply and mounting baffle. The bay supports modules for up to 256 camera inputs and 16 monitor outputs; use of multiple bays allows you to expand a single CPU system to support 2048 camera inputs and 512 monitor outputs.
If you own a Pelco matrix components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco CM9765-MXB Video Matrix Bay CM9765-MXB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco CM9765-MXB Video Matrix Bay CM9765-MXB:
Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz, autoranging
  • Power Consumption: 60 W maximum (fully populated)
  • Communication: Full duplex RS-422 using an RJ-45 connector
  • Video
  • Bandwidth: 15 MHz
  • Signal-to-Noise Ratio: -70.5 dB
  • Adjacent Channel Crosstalk: -60.9 dB at 3.58 MHz
  • Differential Gain: 0.51%
  • Differential Phase: 0.38°
  • Line Tilt: 0.40%
  • Field Tilt: 0.59%
  • Switching Time: 16 ms
  • Inputs: Card slots support up to 256 inputs per bay
  • Outputs: 1 output card slot for supporting 16 outputs per bay
  • Video Input Level: 0.5 to 2 Vp-p, RS-170 composite video
  • Impedance: 75 ohms terminating (looping versions available)
  • V-Sync: The Pelco V-Sync signal (sent up the coaxial cable) provides a synchronization pulse, which allows roll-free switching between cameras within the same matrix bay
  • Vertical Drive: Input connector available on rear panel
  • Overall Frequency Response: Flat to 8 MHz
  • Luminance Nonlinearity: 20%
  • General
  • Operating Temperature: 32 - 122°F (0 - 50°C), noncondensing
  • Dimensions Matrix Bay (DxWxH): 21.7 x 19 W x 10.5" (55.10 x 48.26 x 26.67cm)
  • Dimensions Mounting Baffle (DxWxH): 24 x 19 x 1.8" (60.96 x 48.26 x 4.45cm)
  • Mounting: Fits 19" EIA-standard rack (matrix bay: 6 RUs; mounting baffle: 1RU)
  • Unit Weight: 33 lbs (14.99kg) / 52 lbs (23.59kg), fully populated
  • Packaging Info
    Package Weight 41.0 lb
    Box Dimensions (LxWxH) 24.0 x 8.75 x 8.75"
