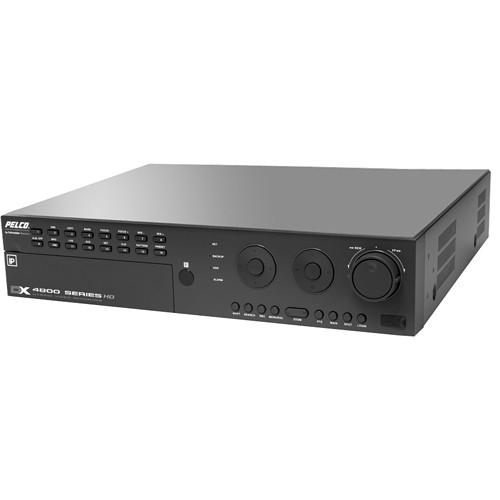

Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR
  • Manufacturer: Pelco
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Pelco
  • Settings and expert assistance
  • Contact Pelco service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Pelco.



User manual for the Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR

The user manual for the Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

The Pelco DX4816 H.264 18-Channel Hybrid Video Recorder (8 TB) brings a new range of performance and capability to the Pelco DX series product line, including support for 16 analog channels plus 2 IP cameras (up to 3 MPx each). Customers can now benefit from megapixel image detail where they need it most. For example, customers can monitor registers, cash counting operations, high-value merchandise areas, or lobbies and entrances while still receiving maximum value from existing analog cameras and cabling.

Customers, who have continued requirements for 16 analog cameras and want to expand their systems with megapixel IP recording, have a cost-effective solution in the DX4816 HVR. The ability to support 2 Pelco megapixel IP cameras, or Axis cameras, gives customers new power and flexibility in their IP migration path. The CPU resource meter monitors system resources in real time and is a useful gauge for the addition of IP cameras to the system.

This HVR gives customers the ability to record at the speed and resolution they need. It records up to 30 ips on all channels. In addition, this HVR adds the ability to record full frame rate video at 4CIF resolution for all cameras. With this kind of recording power, previous analog investments gain extended life.

With 8 TB of internal storage, you can overcome the higher storage demands of megapixel and high speed recording without sacrificing speed for resolution. The H.264 Hybrid Video Recorder also matches the security requirements to storage needs with the unique HDD partitioning feature, which allocates individual disk partitions for normal and alarm recording. And, you can ease storage costs for backup video by using optional, external USB-attached HDD enclosures up to 1 TB (not included).

The HVR provides the unique ability to leverage installed systems. The DX series remote client provides operational functionality for DX4000 and DX8000 series DVRs/HVRs, and the optional DS ControlPoint software allows integration with DX series products as well as Digital Sentry systems.

This HVR is full-featured and meets the needs of a wide range of customers. Retail, branch office customers, and others will benefit from its robust capabilities including the ability to capture and overlay ATM/POS text with video recording, access instant playback for quick investigative work, and the use of bidirectional audio for enhanced security.

This recorder reduces installation overhead with out of the box recording. An intuitive interface makes custom installation easy and reduces learning time for end customers.

With a wide new range of capabilities, the DX4816 H.264 HVR well suits the needs of existing analog markets and becomes an integral part of an efficient megapixel IP migration strategy.

This HVR is perfect for customers who want higher resolution images than analog cameras can provide for specific critical areas of their business, including cash-counting, cashiers, entry/exit, or high-value merchandise areas.

Client-to-server connectivity allows operation from a remote location and can connect to as many as 100 DX series systems simultaneously. Up to 100 systems can be added to the DX series client site tree. Multiple DX series clients, running on dispersed computers, can host a variety of servers in their respective site trees. The DX series client can operate multiple DX series systems including DX4700/DX4800, DX4100, DX4500/DX4600, DX8000, and DX8100 systems. Each server supports 5 simultaneous remote connections. The optional DS ControlPoint client can be used to simultaneously operate any of the current DX series systems as well as any Integral or Digital Sentry DVR/HVR.

The DX4816 HVR expands security by adding the value of 2 megapixel cameras to an analog environment of 16 cameras and the performance of 4CIF/30 ips. It also supports ATM/POS recording. This HVR provides valuable audio recording capabilities for those applications where policy and legislation allow. Bidirectional audio is an excellent tool for training or for an increased security presence. With up to 4 audio inputs and 2 audio outputs, full recording, search, export, and playback capabilities are available at the server. IP streams can be viewed in standard resolution at the server and in megapixel resolution at the client.
If you own a Pelco digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco DX4816 H.264 18-Channel Hybrid Video DX48168000DVR:
Supported IP Cameras 2x
Images Per Second at 4CIF 480
Multi-Event Recording Yes
Optical Disk Drive DVD±RW
Storage 8 TB
Audio 4x inputs / 2x outputs
Line in: 4x Mono, RCA
Output: 2x Mono, 0 dB, RCA
Sampling Rate: 128 Kbps (16 KHz)
Two-way audio: Mic-in, line-out
Alarm 16x inputs screw terminal; N.C. or N.O., supervised or nonsupervised
4x outputs
Electrical
Input Voltage 90 to 264 VAC, 50/60 Hz, autosensing
Power Consumption Maximum 250 W
Signal System NTSC/PAL, switchable
Operating System Embedded Linux
Video Compression H.264
Recording Resolution NTSC: 704 x 480, 704 x 240, 352 x 240
PAL: 704 x 576, 704 x 288, 352 x 288
Video Outputs 1x main VGA or analog multiscreen for live viewing
Screen Multiscreen: 1x configurable, analog spot monitor
Display Resolution Server: SVGA
Client: Up to 1920 x 1080
Remote Connection LAN/WAN
TCP/IP
Network Connection Gigabit Ethernet, RJ-45
Remote Connection 5x simultaneous remote connections
Bandwidth Throttle Server-based, 32 Kbps to 100 Mbps
Network Stream Configurable per camera
Supported PTZ Protocols Pelco C, Pelco D, Pelco P, Bosch_Autodome, Ganz_DSCP, Ganz_P360V1, Kalatel_Cyberdome, LG_Multix, LG_SD168, Panasonic_CS850, Samsung_SCC
Mechanical
Connectors Video Input: 16x BNC
Video Output: 16x BNC, looping
Data Inputs: 2x RS-422/RS-485 terminals for connecting PTZ cameras
DB9: 1x RS-232C connector for interfacing an ATM/POS Device
USB: 3x high-speed USB 2.0 ports (1x front, 2x back)
Relays Output: 4x (N.C. or N.O.)
Contact ratings: Rated (resistive) load 0.5 A at 120 VAC or 1 A at 24 VDC

Relays are grounded

Video Output SVGA or analog
TCP/IP Port RJ-45, 10/100/1000
General
Operating Temperature 32 to 122°F (0 to 50°C)
Relative Humidity Maximum 80%, non-condensing
Mounting Standard 19" rack mount (2x unit)
Camera Views Server: 1, 4, 6, 8, 9, 16
Client: 1 to 36
Certifications CE
FCC, Class A
UL/cUL
C-Tick
CCC
KCC
S Mark for Argentina
PC Requirements Processor: Intel Pentium 4 (or later), 1 GHz
Operating system: Microsoft Windows 2000, XP (SP3), Vista, or 7
DirectX 9.1 (or later)
Memory: 256 MB
Video: 64 MB
Display resolution: 1024 x 768, 32-bit color
Compatible Devices Pelco Sarix IP cameras (IM, IX, ID, and IE series)
Axis IP cameras (must be compatible with VAPIX3)
KBD300A keyboard
COTS HDD enclosures
DX series client
DS ControlPoint
API
American video equipment Hydra
Dimensions (DxWxH) 19.6 x 19.0 x 3.5" (49.78 x 48.26 x 8.89 cm)
Weight With HDD: 19.8 lb (9 kg )
Without HDD: 13.2 lb (6 kg)
