User manual for the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A

The user manual for the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Power - Power Supplies.

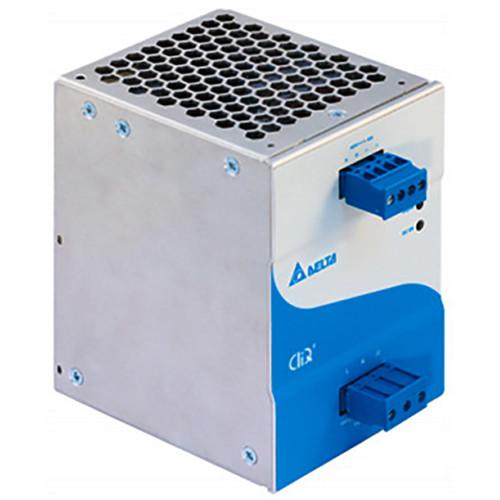

The ECPS-48VDC-5A Switching Power Supply from Pelco allows powering of stand-alone IP/analog fiber and Ethernet modules. It can be DIN rail mounted and is suited for PoE applications.
If you own a Pelco power supplies and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A:
Output
Voltage Minimum: 48 VDC typical
Maximum: 56 VDC typical
Current 5 A
Efficiency >90% at 115 VAC
>92% at 230 VAC
Line Regulation <0.5% typical
Load Regulation <1% typical
Voltage Tolerance ±1% (initial set point tolerance from factory)
Hold-Up Time >20 ms at 115 VAC and 230 VAC (100% load)
Overvoltage Protection <57 VDC
Short Circuit Protection Hiccup mode, non-latching (auto-recovery when the fault is removed)
Overload Protection >150% of rated load current, hiccup mode, non-latching (auto-recovery)
Input
Voltage Range AC: 85 to 264 VAC; DC: 120 to 375 VDC
Rated Current 2.5 A @ 115 VAC; 1.3 A @ 230 VAC
Frequency Range 47 to 63 Hz
Inrush Current <35 A maximum
General
Certifications CE, class B; FCC, class B; UL/cUL recognized
Operating Temperature -13 to 176°F (-25 to 80°C)
Power Derating:
Vertical Mounting: >122°F (50°C), derate power by 2.5% per °C
Horizontal Mounting: >104°F (40°C), derate power by 2.5% per °C
Storage Temperature -13 to 185°F (-25 to 85°C)
Relative Humidity <95%, non-condensing
Mechanical
Cooling Natural convection: requires 2" (5 cm) free space above and below and lateral distance of 0.79" (2 cm) from other units to ensure adequate cooling
Mount Cable Mount:
Screw Terminal Blocks - 12 to 20 AWG flexible or solid cable
Dimensions 4.8 x 3.4 x 4.9" (12.1 x 8.5 x 12.4 cm)
Weight 2.12 lb (0.96 kg)
The user manual for the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A can be downloaded in .pdf format if it did not come with your new power supplies, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco power suppliess, where you can use our link to download the user manual for the Pelco ECPS-48VDC-5A 48 VDC Switching Power Supply ECPS48VDC5A.
