User manual for Pelco EH3014 14" Enclosure EH3014
- Manufacturer: Pelco
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Mounts & Housings - Housings
- Safety instructions
- Startup and operation of the housings
- Tips for setting up your Pelco
- Settings and expert assistance
- Contact Pelco service
- Troubleshooting
- Warranty information
- Price: 100 USD
|
We recommend checking out our discussion threads on the Pelco EH3014 14" Enclosure EH3014,
which address similar problems with connecting and setting up Housings Pelco.
|
User manual for the Pelco EH3014 14" Enclosure EH3014
The user manual for the Pelco EH3014 14" Enclosure EH3014 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

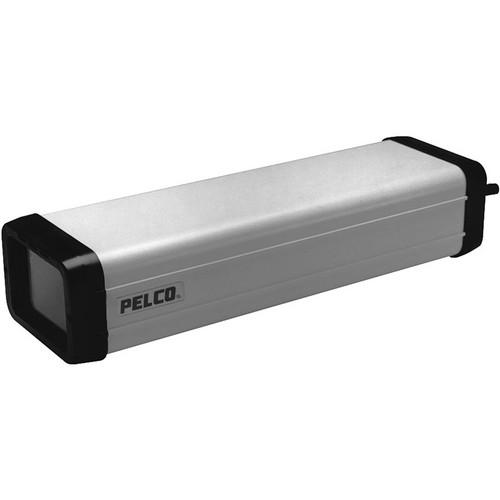

The Pelco EH3014 Enclosure, manufactured with a gray polyester powder coat finish, complements any office or business décor. The camera enclosure is designed to accommodate small-to-medium sized cameras with fixed or vari-focal lenses.
While the removable rear cap lets you easily access the slide-out platform on which the camera is mounted, the adjustable glands on the rear cap enables easy installation of the power and video cables. With the removable front cap, you get to manually adjust the camera lens without removing the camera.
The low cost indoor camera enclosure is ideal for upright or inverted use. Additionally, this enclosure can be used in fixed mount applications or mounted to a light duty pan/tilt. Besides, the 10" Enclosure can be used indoors with the PS20 Series scanner.
|
If you own a Pelco housings and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Pelco EH3014 14" Enclosure EH3014 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Pelco EH3014 14" Enclosure EH3014:
| Indoor/Outdoor | Indoor | | Mount Type | Ceiling/Pedestal: CM4400 / EM1009U / EM1015U / EM3000
Wall: EM1400 / EM1900U / EM2400 / EM4400
Pipe/Pole: EM1109 / EM2000 / EM2200
Motorized P/T: PT280 Series | | Compatible Cameras | Fixed CCTV Camera | | Clear or Tinted | Clear | | Maximum Camera/Lens Size | 3.8 x 2.8 x 12" (9.5 x 7 x 30.5cm) | | Construction | Material: Extruded aluminum body; injection molded black ABS plastic end caps
Finish: Gray polyester powder coat
Viewing Window: 0.125" (3.17 mm) thick Lucite SAR (Super Abrasion Resistant) acrylic
Cable Entry: Two compression glands on rear cap | | Operating Temperature | 32 - 120°F (0 - 49°C) | | Dimensions (WxHxD) | 4.7 x 3.4 x 15.5" (11.8 x 8.6 x 39.4cm) | | Weight | 5 lbs (2.3kg) | |
The user manual for the Pelco EH3014 14" Enclosure EH3014 can be downloaded in .pdf
format if it did not come with your new housings, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Pelco users keep a unique electronic library
for Pelco housingss,
where you can use our link to download the user manual for the Pelco EH3014 14" Enclosure EH3014.
The user manual lists all of the functions of the Pelco EH3014 14" Enclosure EH3014,
all the basic and advanced features and tells you how to use the housings.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Pelco service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Pelco EH3014 14" Enclosure EH3014. User manuals are also
available on the Pelco website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
