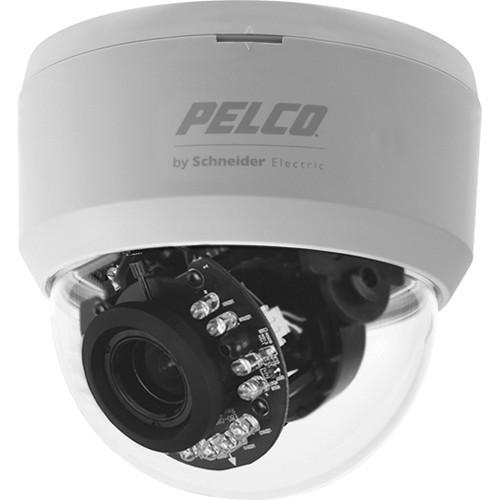

The Pelco FD2DV106X 1/3” CCD 650TVL High-Resolution Varifocal Day & Night Camera is a versatile indoor camera that can be mounted directly onto a ceiling or a wall. The 3-axis camera features a lens positioning system that is capable of a wide variety of pan and tilt angles. This high-resolution 650TVL day & night camera features an auto iris and varifocal lens. The camera uses a movable IR cut filter to switch between color and B&W modes in changing environmental lighting conditions and also when the need for low-light sensitivity is realized. This camera can be used in environments that require color images during the day and monochrome images at night.
If you own a Pelco pal security cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco FD2DV106X 1/3" CCD 650TVL High-Resolution FD2DV106X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco FD2DV106X 1/3" CCD 650TVL High-Resolution FD2DV106X:
Image Sensor Sony 1/3" EXview HAD CCD II
Signal Processing Sony DSP, Effio-E
Effective Pixels (H x V) 976 x 582
Scanning Area (H x V) 0.22 x 0.18" (5.58 x 4.67 mm)
Scanning System 625 lines, 2:1 interlace
Scanning Frequency Horizontal, 15.625 kHz
Vertical, 50.00 Hz
Synchronization Internal
Horizontal Resolution 650 TVL
Minimum Illumination f/1.2; 2,850 K; 30 IRE
Color: 0.1 lux
Mono: 0.05 lux
IR Cut Filter With day and night switch
Dynamic Range Gamma selectable (ATR)
Low Light Capability ICR, digital day/night
Electronic Shutter Auto/Manual: 1/60 to 1/10,000 sec
Auto/Manual: 1/50 to 1/10,000 sec
Video Output 1 Vpp, PAL composite, 75 Ω, BNC connector
White Balance ATW / Manual / Push / Push / Lock / User1 / User2 / Anti CR
S/N Ratio 48 dB (>52 dB by parameter adjustment)
Lens Type Varifocal
F-Number (f) f/1.2
Focal Length 2.8 to 10.5 mm
Focus Range Infinity to 1.0' (0.3 m)
Horizontal Angle of View 101.8° at 2.8 mm wide zoom;
27.4° at 10.5 mm telephoto zoom
Vertical Angle of View 73.7° at 2.8 mm wide zoom;
20.6° at 10.5 mm telephoto zoom
Adjusting Angle Panning Range: ± 180°
Tilting Range: ± 90 to 0°
Rotation Range: ± 180°
Noise Reduction 2D
Motion Detection 4 areas
Privacy Zone 8 areas
Alarm Out 1
Electrical
Power Requirement 18 to 32 VAC 50 Hz / 12 VDC 10 to -15%
Power Consumption 2.5 W
Power Connector 2-pin terminal block with screw terminal
Video Connector BNC
Alarm Output 2-pin terminal block with screw terminals
Environmental
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-20° to 60°C)
Operating Humidity 20 to 80%, non-condensing
Storage Humidity 20 to 90%, non-condensing
General
Material of Construction Back Box: ABS plastic
Bubble Lightly obscured
Certifications CE, Class B, FCC, Class B, and UL/cUL listed
Dimensions (WxH) 4.6 x 4.2" (11.6 x 10.6 cm)
Weight 0.7 lb (0.3 kg)
