User manual for the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0

The user manual for the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

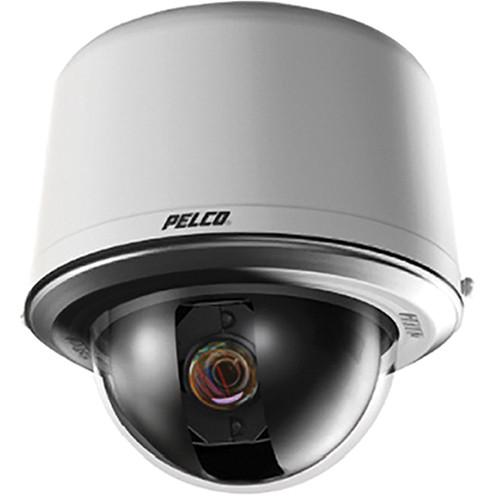

The black S5220-FW0 Spectra HD IP High-Speed Indoor Dome Camera System from Pelco features ease of installation and maintenance. This dome system includes D5220P Dome Drive with integrated 2.0 Mp, 20x Day/Night Camera, B52-F In-Ceiling Indoor Black Back Box with White Trim Ring, and LDHQF-0 High-Quality Lower Dome with Smoked Bubble. The Spectra HD IP dome camera system delivers crystal clear live streaming images over the Internet using a standard Web browser (Microsoft Internet Explorer or Mozilla Firefox). This system is suitable to view details such as faces, license plates, tattoos, playing cards (in casinos), or other specific features.

The Spectra HD IP camera system supports High-Profile H.264 compression, a vast improvement in quality over MPEG-4 and 20 times more efficient than M-JPEG. The dome system features open architecture connectivity for third-party software recording solutions allowing integration into virtually any IP-based HD system. It is also compatible with Digital Sentry video management systems. Moreover, the Spectra HD system is Endura Enabled to record, manage, configure, and view multiple live streams. When connected to an Endura HD network-based video security system, the dome system has access to EnduraStor and EnduraView for optimized image quality and bandwidth efficiency.

The built-in Pelco Analytics Software enhances the flexibility and performance of the Spectra HD dome camera system. 9 user-configurable behaviors are preloaded and included as standard features. The Pelco behaviors can be configured and enabled using a standard Web browser, and they are compatible with Endura or a third-party system that supports alarms using Pelco's API.

The camera is capable of running up to 3 behaviors at the same time; although, the number of behaviors is limited to the available processing power of the camera and the type of analytic being used. The available processing power is determined by the settings for compression standards, resolution, image rate, bit rate, and analytic configuration. For each behavior, you can create several custom profiles that contain different camera settings. With these profiles, you can set up different scenarios for the behavior, which will automatically detect and trigger alarms when specific activity is detected. The Pelco behavior alarms are compatible with Endura or a third-party system that supports Pelco's API system.

The multiple Pelco Analytics Software behaviors can be scheduled to work during a certain time or condition. The Spectra HD dome camera system uses a standard Web browser for powerful remote setup and administration. Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator. Spectra HD supports up to 32 blanked windows. A blanked area will appear on the screen as a solid gray window.

The Spectra HD camera system easily connects to Pelco IP and hybrid systems such as Endura version 2.0 or later and Digital Sentry version 7.3 or later. The camera is also compatible with Digital Sentry NVs (DS NVs), which is a full-featured video management software (downloadable from the Pelco website). DS NVs video management software includes 4 free Pelco IP licenses and allows for the management of videos from up to 64 cameras. The Spectra HD dome camera system features open architecture connectivity to third-party software. Pelco offers API (Application Programming Interface) and SDK (Software Developer's Kit) for interfacing with Pelco's IP cameras.
If you own a Pelco wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0:
Camera
Sensor Type 1/2.8" type Exmor CMOS
Zoom 20x optical, 12x digital
Maximum Resolution 1920 x 1080
Lens Focal Length: 4.7 mm (wide) to 94.0 mm (tele)
Aperture: f/1.6 to 3.5
Horizontal Angle of View 55.4° (wide) to 2.9° (tele)
Aspect Ratio 16:9
Light Sensitivity Color: 0.65 lux @ 33 ms, 0.07 lux @ 250 ms
Mono: 0.20 lux @ 33 ms, 0.015 lux @ 250 ms

Sensitivity in lux for 90% reflectance, f/1.6 (wide-angle), 28 dB gain at 30 IRE (30% of signal level) with Sensitivity Boost off. 4x improvement to sensitivity with Sensitivity Boost on.

Infrared IR Trace: Curves 850 nm and 950 nm
Frame Rate 80 dB
Iris Control Auto iris with manual override
Video
Video Encoding H.264 High, Main, or Base profiles and MJPEG
Video Streams Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream
Frame Rate Up to 30, 25, 15, 12.5, 10, 8.333, 7.5, 6, 5, 3, 2.5, 2, 1 (depending on the coding, resolution, and stream configuration)
Available Resolutions 2.07 Mp, 1920 x 1080 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 12 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 3.5 Mb/s

0.92 Mp, 1280 x 720 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 12 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 2.9 Mb/s

0.36 Mp, 800 x 448 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 5.75 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 1.8 Mb/s

0.23 Mp, 640 x 352 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 3.6 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 1.15 Mb/s

0.13 Mp, 480 x 272 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 2.05 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 0.75 Mb/s

0.06 Mp, 320 x 176 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 0.9 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 0.35 Mb/s
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP)

Supports mixed IPv4 and IPv6 installations, but not IPv6-only deployments.

Users Unicast: Up to 20 simultaneous users depending on resolution settings (2 guaranteed streams)
Multicast: Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
Pelco System Integration Endura 2.0 or later
Digital Sentry 7.3 or later
Interface Open Application Programming Interface: Pelco API or ONVIF v1.02
Minimum System Requirements Processor: Intel Core i3 Processor, 2.4 GHz
Operating System: Microsoft Windows 7 (32-bit and 64-bit) with DirectX 11, Windows XP Service Pack 3 with DirectX 9.0c, or Mac OS X 10.4 or later
Memory: 4 GB RAM
Network Interface Card: 100 megabits or greater
Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser: Internet Explorer 8.0 or later or Mozilla Firefox 3.5 or later; Internet Explorer 8.0 or later is recommended for configuring analytics
Media Player: Pelco Media Player or QuickTime 7.6.5 for Windows XP, Windows Vista, and Windows 7; or QuickTime 7.6.4 for Mac OS X 10.4 or later Note:
This product is not compatible with QuickTime version 7.6.4 for Windows XP or Windows Vista. If you have this version installed on your PC, you will need to upgrade to QuickTime version 7.6.5.

Pelco Media Player is recommended for control, smoothness, and reduced latency as compared to QuickTime.
Software
System Requirements Pelco Interface: WS5200 Advanced System Management Software on an Endura 2.0 (or later) system
Open API: The Pelco API can transmit behavior alarm data to third-party applications, available at pdn.pelco.com
Dome Drive
Variable Speed 0.1 to 280°
Preset Accuracy ±0.1°
Pan Movement 360° continuous pan rotation
Vertical Tilt +1 to -90°
Manual Pan/Tilt Speeds Pan: 0.1 to 80°/sec manual operation
Tilt: 0.1 to 40°/sec manual operation
Preset Speeds Pan: 280°/sec
Tilt: 160°/sec
General
Construction Back Box: Aluminum
Dome Drive: Aluminum, thermo plastic
Bubble: Acrylic
Light Attenuation f/0.5 light loss
Cable Entry Back Box: Through 1.5" NPT pendant mount
Electrical
Ports RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Auto negotiate/Manual setting
Cabling Type CAT5 or better for 100Base-TX
Input Voltage 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power 24 VAC: 23 VA nominal (without heater and blower); 73 VA nominal (with heater and blower)
24 VDC: 0.7 A nominal (without heater and blower); 3 A nominal (with heater and blower)
PoE: IEEE802.3af (without heater and blower)

Heater sold separately

General
Certifications CE, Class A
FCC, Class A
C-Tick
U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2; 7,161,615 B2
ONVIF 1.02
KCC
Cisco Medianet Media Services Proxy 2.0 compatible
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, and IEC 60068-2-78
Effective Projected Area (EPA) 20.5 sq in. without mount
47 sq in. with IWM Series mount (sold separately)
Operating Temperature 0 to 50°C (32 to 122°F)
Operating Humidity 10 to 90% RH (condensing)
Overall Dimensions 8.2 x 8.7" (20.8 x 22.0 cm)
Weight 4.6 lb (2.1 kg)
The user manual for the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco wired ip camerass, where you can use our link to download the user manual for the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0.

The user manual lists all of the functions of the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Wired IP Cameras.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Pelco S5220-FW0 Spectra HD IP High-Speed Indoor Dome S5220FW0
