User manual for the Pelco Sarix IBP Series IBP319-ER 3MP Environmental IR IBP319ER

The user manual for the Pelco Sarix IBP Series IBP319-ER 3MP Environmental IR IBP319ER provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

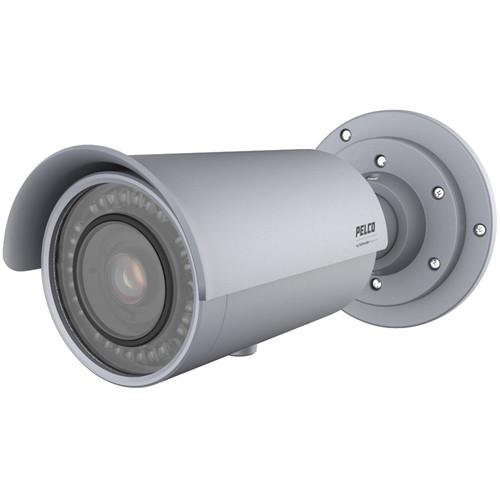

The light gray Sarix IBP Series IBP319-ER 3MP Environmental IR Bullet Camera with 3 to 9mm lens from Pelco features a remote zoom lens for wide angle or long range surveillance needs. Autofocus capability ensures the camera can be automatically refocused when needed. Additionally, the camera offers advanced color accuracy and advanced integrated adaptive IR illumination for increased sensitivity in low-light installations. It features a mechanical IR-cut filter.
If you own a Pelco wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco Sarix IBP Series IBP319-ER 3MP Environmental IR IBP319ER in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco Sarix IBP Series IBP319-ER 3MP Environmental IR IBP319ER:
Specifications
    Camera
    Sensor 1/3" CMOS
    Sensor Resolution 2048 x 1536 (3.1MP)
    Imager Readout Progressive scan
    Electronic Shutter Speed 1/5 to 1/10,000 sec
    Dynamic Range 65 dB
    White Balance 2,500 to 8,000 K
    Digital Noise Reduction (DNR) Yes (On/Off selectable)
    Minimum Illumination Color @ f/1.2: 0.30 lux @ 33 ms; 0.02 lux @ 200 ms
    Mono with IR Illumination @ f/1.2: 0 lux @ 33 ms
    0 lux @ 200 ms
    Mechanical IR Cut Filter Yes (Auto/Manual selectable) with different set points on lux
    IR Illumination Adaptive IR up to 82' (25 m); Auto On in night mode or Off
    Lens
    Type Built-in, varifocal
    Focal Length f/1.2, 3 to 9 mm
    Focus Autofocus, motorized
    Zoom Remote
    Auto Iris Control DC drive P-iris lens
    Video
    Video Streams Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream
    Overlay Camera name, date, time
    Available Resolutions 2048 x 1536 (3.1MP); 4:3 aspect ratio
    1920 x 1080 (2.1 MP); 16:9 aspect ratio
    1600 x 1200 (1.9 MP); 4:3 aspect ratio
    1280 x 960 (1.2 MP); 4:3 aspect ratio
    1280 x 720 (0.9 MP); 16:9 aspect ratio
    1024 x 576 (0.6 MP); 16:9 aspect ratio
    800 x 600 (0.5 MP); 4:3 aspect ratio
    640 x 480 (0.3 MP); 4:3 aspect ratio
    320 x 240 (0.1 MP); 4:3 aspect ratio
    320 x 180 (0.1 MP); 16:9 aspect ratio
    Supported Frame Rates 20 (full), 16.67, 15, 12.5, 10, 5, 1 fps

    Available frame rates are selectable for each independent stream depending on the coding, resolution, and stream configuration.
    Video Encoding H.264 High or Main profiles and MJPEG
    Bitrate Control Constant bit rate (CBR), constrained variable bit rate (CVBR) with target range
    Service Service Stream: 320 x 240 (0.1 MP) or 320 x 180; 2 ips, MJPEG
    Privacy Masking 4 configurable windows
    Audio
    Streaming Dual-channel
    Input Line in/terminal block
    Output Line out/terminal block
    Encoding G.711 A-law/G.711 U-law
    Networking
    Port RJ-45 connector for 100Base-TX
    Cable Type CAT5 or better for 100Base-TX
    Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP), ICMP, IPv4, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS
    Users Unicast: 1 administrator, up to 4 viewers
    Multicast: Unlimited users H.264
    Security Access Multiple user access levels with password protection
    Electrical
    Power Input PoE (IEEE 802.3af, Class 3); 24 VAC nominal, 18 to 32 VAC range
    Power Consumption <11.50 W
    Alarm Input: 1
    Output: 1; PhotoMOS relay (30 V, 1 A)
    Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.)
    Environmental
    Operating temperature -40 to 122°F (-40° to 50°C)

    Thermostatically controlled heating provides ramped heating control between the initial heater on at 15°C (59°F) and full heating mode at -40°F (-40°C)
    Storage Temperature -40° to 140°F (-40° to 60°C)
    Humidity Operating: 15 to 85%, RH condensing
    Storage: 20 to 80%, RH non-condensing
    Integration
    Video Management Software Digital Sentry 7.3 (or later); Endura 2.0 (or later); Third-party VMS through Pelco API 1.0 and ONVIF Profile S
    Mobile Apps Integrated to Pelco Mobile App
    Video Motion Detection Simple motion detection and camera sabotage
    Local Storage Captures 5- or 10-sec video clips on camera sabotage, motion detection, or alarm input
    Records video continuously in case of network outage with the option to overwrite
    Access video through FTP protocol
    Firmware Upgrade Discovery and firmware upgrade through Pelco Device Utility 2 version 2.2 and Endura Utilities
    Interface Web browser view and setup
    Web Browser Support Microsoft Internet Explorer 8.0 and later
    Language Support Chinese, English, French, German, Italian, Portuguese, Russian, Spanish, and Turkish
    Certifications and Approvals
    Certifications CE, EN 55022 (Class A), EN 50130-4, EN 60950-1
    FCC (Class A) - 47 CFR Part 15
    UL/cUL listed, UL60950-1
    CAN/CSA-C22.2 No. 60950-1-07
    ICES-003, KCC, NOM
    ONVIF Profile S conformant
    Shock and Vibration IEC 60068:2-27; IEC 60068:2-6
    General
    Construction Die-cast aluminum, cylindrical
    Ingress protection IP66 per IEC 60529
    Finish Light gray, RAL 7035; satin texture
    Vandal Resistance IK10 (20 J impact) per IEC 62262
    Dimensions With Bracket: 4.33 x 10.61" (11.01 x 26.96 cm)
    Weight 3.89 lb (1.76 kg)
    Packaging Info
    Package Weight 5.55 lb
    Box Dimensions (LxWxH) 13.5 x 6.9 x 6.7"
