User manual for the Pentax 8.5x21 U-Series Papilio II Binocular 62002
The user manual for the Pentax 8.5x21 U-Series Papilio II Binocular 62002 provides
necessary instructions for the proper use of the product Optics - Binoculars - Binoculars.

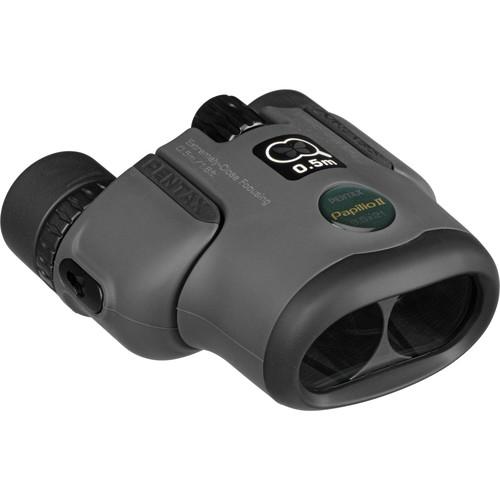

The compact and lightweight 8.5x21 U-Series Papilio II Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a 51° apparent angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With a 8.5x magnification and 21mm objectives, you obtain a notable magnification, insignificant image jitter due to unsteady hands, and a compact form factor. You can easily spot your targets with a wide 6° angular field of view and quickly bring them into focus with a center focus wheel. In addition to observing distant scenes, birds and game, the minimum focus of 20" allows you to study in detail close objects like butterflies, animal footprints, marks or landscape features. To reduce image jitter while observing distant objects or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. The binocular also features a 2.5mm exit pupil, a 15mm eye relief, an interpupillary and a diopter adjustments.
The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers twist-up rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers.
If you own a Pentax binoculars and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Pentax 8.5x21 U-Series Papilio II Binocular 62002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pentax 8.5x21 U-Series Papilio II Binocular 62002:
| Prism Type || Porro |
| Magnification || 8.5x |
| Objective Lens Diameter || 21mm |
| Angle of View || 6° (actual) |
| Field-of-View || 346.5' @ 1000 yd / 115.04 m @ 1000 m |
| Minimum Focus Distance || 1.65' / .50 m |
| Exit Pupil Diameter || 2.5 mm |
| Eye Relief || 15 mm |
| Interpupillary Adjustment || Not Specified By Manufacturer |
| Dioptric Correction || Not Specified By Manufacturer |
| Focus Type || Center |
| Tripod Mount || Yes |
| Dimensions || 4.57 x 4.33 x 2.1" / 11.61 x 11.00 x 5.33 cm |
| Weight || 10.2 oz / 289 g |
| Package Weight || 1.05 lb |
| Box Dimensions (LxWxH) || 5.8 x 5.4 x 2.8" |
The user manual for the Pentax 8.5x21 U-Series Papilio II Binocular 62002 can be downloaded in .pdf
format if it did not come with your new binoculars, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Pentax users keep a unique electronic library
for Pentax binocularss,
where you can use our link to download the user manual for the Pentax 8.5x21 U-Series Papilio II Binocular 62002.
The user manual lists all of the functions of the Pentax 8.5x21 U-Series Papilio II Binocular 62002,
all the basic and advanced features and tells you how to use the binoculars.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Pentax service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Pentax 8.5x21 U-Series Papilio II Binocular 62002. User manuals are also
available on the Pentax website under Optics - Binoculars - Binoculars.
Question and answer discussion forum concerning user instructions and resolving problems with the Pentax 8.5x21 U-Series Papilio II Binocular 62002
Post new comment to Pentax 8.5x21 U-Series Papilio II Binocular 62002
|Subject: right eyepiece|
|Date: 02.07.2020 22:20:41||Author: Rachel|
|My right eyepiece has come apart. How do I reassemble it? I hve three rings|
