User manual Photogenic AKC160 Studiomax III 160W/s Monolight 906894

Operating instructions and pdf manual for use - Photogenic AKC160 Studiomax III 160W/s Monolight 906894 User manual, User manual Photogenic AKC160 Studiomax III 160W/s Monolight 906894, Photogenic, AKC160, Studiomax, III, 160W/s, Monolight, 906894,


User manual for Photogenic AKC160 Studiomax III 160W/s Monolight 906894

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Photogenic AKC160 Studiomax III 160W/s Monolight 906894
  • Manufacturer: Photogenic
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Strobe Lighting - Monolights
  • Safety instructions
  • Startup and operation of the monolights
  • Tips for setting up your Photogenic
  • Settings and expert assistance
  • Contact Photogenic service
  • Troubleshooting
  • Warranty information
  • Price: 230 USD
We recommend checking out our discussion threads on the Photogenic AKC160 Studiomax III 160W/s Monolight 906894, which address similar problems with connecting and setting up Monolights Photogenic.



User manual for the Photogenic AKC160 Studiomax III 160W/s Monolight 906894

The user manual for the Photogenic AKC160 Studiomax III 160W/s Monolight 906894 provides necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Monolights.

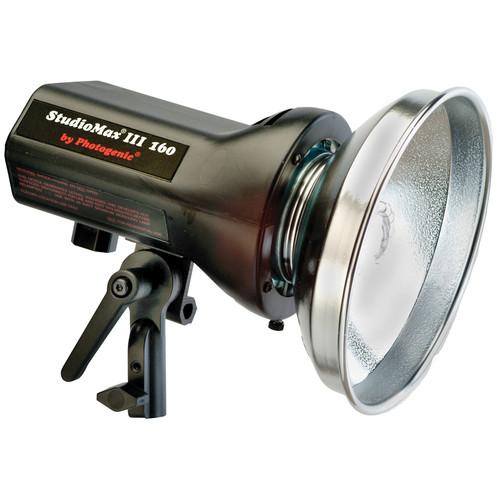

The Photogenic AKC160 Studiomax III 160W/s Monolight is an ideal way to add a lightweight (2.6 lb) fixture to your kit for a main light, backlight or fill light. The AKC160 offers a six stop power range from 5.0 to 160W/s, steplessly adjustable via a simple knob. Constant Color technology ensures that the color balance remains within 200K of an ideal 5,400K regardless of the power level chosen, to insure shot to shot consistency and minimize post-production work.
If you own a Photogenic monolights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Photogenic AKC160 Studiomax III 160W/s Monolight 906894 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Photogenic AKC160 Studiomax III 160W/s Monolight 906894Download user manual for Photogenic AKC160 Studiomax III 160W/s Monolight 906894
(PDF file, 1.92 MB)
Additional parameters of the Photogenic AKC160 Studiomax III 160W/s Monolight 906894:
Specifications
    Maximum Watt/Seconds 160
    Guide Number 81 @ 10' (3.0 m), ISO 100 with PL7R reflector, 25 with no reflector
    Recycle Time 1.5 Sec. @ max. power
    0.1 Sec @ min. power
    Flash Duration 1/175 Sec. @ max. power
    1/7,400 Sec. @ min. power
    Flash Variability 6.0 Stops, full to 1/32 power (stepless), 160 to 5.0W/s
    Color Temperature 5,400K ± 200K
    User Replaceable Flashtube C4-12C (UV)
    Changeable Reflector Yes
    Modeling Light 100W (ESR)
    Control: On/Off
    Voltage Stabilization No
    Material ABS plastic
    Operating Voltage 105-125VAC, 50/60Hz, 3.0 amps
    Power Consumption 1.0 Amp idling, 5.0 amps charging
    Flash Ready Indicator Ready light
    Sync Voltage 5V, 1/8" (3.5 mm) outlet
    Built-in Slave Cell Photocell
    Circuit Protection Fuse, 3AG type 8.0 amp, SLO-BLO
    Fan Cooled No, convection
    Auto Dump No
    Mount 5/8" (16 mm) female
    Dimensions 5.25 x 5.25 x 7.0" (13.3 x 13.3 x 17.8 cm)
    Weight 2.6 lb (1.17 kg)
    Packaging Info
    Package Weight 5.05 lb
    Box Dimensions (LxWxH) 12.5 x 10.6 x 10.3"
    The user manual for the Photogenic AKC160 Studiomax III 160W/s Monolight 906894 can be downloaded in .pdf format if it did not come with your new monolights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Photogenic users keep a unique electronic library for Photogenic monolightss, where you can use our link to download the user manual for the Photogenic AKC160 Studiomax III 160W/s Monolight 906894.

    The user manual lists all of the functions of the Photogenic AKC160 Studiomax III 160W/s Monolight 906894, all the basic and advanced features and tells you how to use the monolights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Photogenic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Photogenic AKC160 Studiomax III 160W/s Monolight 906894. User manuals are also available on the Photogenic website under Lighting & Studio - Strobe Lighting - Monolights.
