User manual Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378

Operating instructions and pdf manual for use - Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378 User manual, User manual Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378, Phottix, Scott, Kelby, Mitros, TTL, Flash, Odin,


User manual for Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Phottix Scott Kelby Mitros  TTL Flash and Odin TCU TTL PH80378
  • Manufacturer: Phottix
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Strobe Lighting - Battery Powered Strobe Kits
  • Safety instructions
  • Startup and operation of the battery powered strobe kits
  • Tips for setting up your Phottix
  • Settings and expert assistance
  • Contact Phottix service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
Phottix Scott Kelby Mitros  TTL Flash and Odin TCU TTL PH80378 Phottix Scott Kelby Mitros  TTL Flash and Odin TCU TTL PH80378
Click to enlarge image

We recommend checking out our discussion threads on the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378, which address similar problems with connecting and setting up Battery Powered Strobe Kits Phottix.



User manual for the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378

The user manual for the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378 provides necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Battery Powered Strobe Kits.

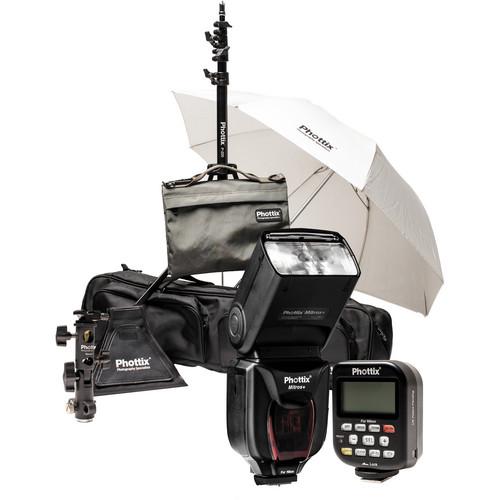

The Scott Kelby Mitros+ TTL Flash and Odin TCU TTL Flash Trigger Kit for Nikon from Phottix features the Mitros+ TTL flash for Nikon, the Odin TCU TTL flash trigger, 10" flash softbox with strap, a 36" Double-Small white shoot-through umbrella, Varos II multi-function flash shoe umbrella holder, a 6.6 pound Stay-Put Sandbag II, a 28" gear bag, and a 6.5' 5-section compact light stand. This gives you a wide variety of tools and accessories for advanced off-camera flash photography.

The basis of this kit is the Mitros+ flash, which has a guide number of 190' at ISO 100 and 105mm and a built-in Odin transmitter/receiver. This works well with the Odin TCU flash trigger for remote flash control and firing. They work within 4 channels and 3 groups within a range of 328' with a 2.4 GHz frequency. These are specific to Nikon cameras with i-TTL.

The 10" softbox and strap lets you diffuse the light of your shoe-mount flash unit. It even has movable inner diffusers for more control and a top vent for bouncing light. There is also a Varos II Multi-Function umbrella holder for mounting a flash to a stand and utilizing the included 36" Double-Small folding white shoot-through umbrella. Additionally, there is a 5-section 6.5' light stand, a 28" gear bag, and a 6.6 pound Stay-Put II sandbag.
If you own a Phottix battery powered strobe kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378:
Specifications
    Mount Shoe
    Guide No. 190.29' (58 m) ISO100 at 105 mm position
    Vari-Power Manual: 1/1 - 1/128
    Bounce Head -7° to +90°
    Swivel Head 360°
    Coverage 14 mm - 105 mm (Full frame)
    Zoom Head Full frame: 24 mm - 105 mm
    Off Camera Terminal 3.5mm
    Recycle Time Approximately 0.1 - 5 seconds
    Flash-ready Indicator Yes
    Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Wireless Operation Method: Optical pulse
    Distance: Up to 52.5' / 16.00 m
    Method: RF
    Distance: Up to 328.08' / 100 m
    Wireless Communication Channels 4 Channels
    Wireless Groups 3 Groups
    Power Source 4x AA Alkaline, Rechargeable NiMH Batteries
    Dimensions (WxHxD) 8.0 x 3.1 x 2.3" / 20.3 x 7.9 x 5.8 cm
    Weight 15.06 oz / 427 g (flash unit only)
    Packaging Info
    Package Weight 10.3 lb
    Box Dimensions (LxWxH) 29.8 x 8.3 x 6.5"
    Product Demo
    The user manual for the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378 can be downloaded in .pdf format if it did not come with your new battery powered strobe kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Phottix users keep a unique electronic library for Phottix battery powered strobe kitss, where you can use our link to download the user manual for the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378.

    The user manual lists all of the functions of the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378, all the basic and advanced features and tells you how to use the battery powered strobe kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Phottix service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Phottix Scott Kelby Mitros TTL Flash and Odin TCU TTL PH80378. User manuals are also available on the Phottix website under Lighting & Studio - Strobe Lighting - Battery Powered Strobe Kits.
