User manual PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB

Operating instructions and pdf manual for use - PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB User manual, User manual PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB, PNY, Technologies, 480GB, 2.5, 7mm, CS2111, SSD7CS2111-480-R


User manual for PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB

PNY Technologies 480GB 2.5
  • Manufacturer: PNY Technologies
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your PNY Technologies
  • Settings and expert assistance
  • Contact PNY Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 186 USD
PNY Technologies 480GB 2.5 PNY Technologies 480GB 2.5 PNY Technologies 480GB 2.5
Click to enlarge image

We recommend checking out our discussion threads on the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB, which address similar problems with connecting and setting up Internal Drives PNY Technologies.



User manual for the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB

The user manual for the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

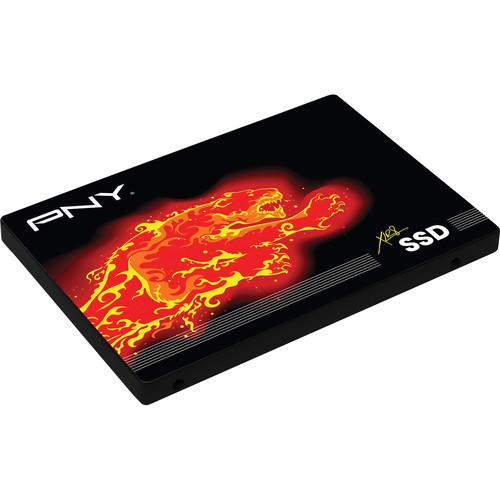

The 480GB 2.5" 7mm CS2111 XLR8 SSD from PNY Technologies is an SSD designed for enthusiasts and gamers who are seeking a competitve edge over their opponents in high performance gaming environments. When coupled with PNY XLR8 graphics cards, this SSD can help to further boost graphics intensive gaming experiences.

While this SSD is designed for gamers, that is by no means its only use. The CS2111 is also able to store and quickly access up to 480GB of your files such as movies, music, photos, documents and more. It is also well suited for hard drive replacement and for use as a boot drive. This SSD uses a SATA III 6 Gb/s interface that is compatible with SATA II 3 Gb/s, an SMI SM2246EN controller, MLC NAND flash memory, and will fit into 2.5" drive bays that are 7mm in height. Using an included 2.5"mm spacer, this drive will also fit into 2.5" drive bays that are 9.5mm in height.

With solid state drive technology, you benefit from load and access times for your files and programs that are faster than a conventional 7200 rpm hard drive. As SSDs have no moving parts, they are also more durable and than traditional hard drives and are better protected against damage from drops and bumps. Having no moving parts also means that SSDs receive less wear and tear, as there are no read or write heads for the drive media to come into contact with.

In terms of speed, this drive offers sequential read speeds of up to 560 MB/s, sequential write speeds of up to 455 MB/s, random read speeds of up to 71,000 IOPS, and random write speeds of up to 75,000 IOPS. In addition to the included 2.5mm spacer, this SSD also comes with a limited 2-year warranty. A limited 4-year warranty is granted upon product registration at PNY.com within 90 days of purchase.
If you own a PNY Technologies internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB:
Capacity 480 GB
Model Number SSD7CS2111-480-RB
Type of Drive Solid State Drive
Form Factor 2.5"
Height 7 mm (9.5 mm with supplied 2.5 mm spacer)
Interface SATA III 6 Gb/s (compatible with SATA II 3 Gb/s)
Sequential Read Speed Up to 560 MB/s
Sequential Write Speed Up to 455 MB/s
Random Read Speed Up to 71,000 IOPS
Random Write Speed Up to 75,000 IOPS
Controller SMI SM2246EN
NAND Type MLC
Dimensions Not specified by manufacturer
Weight 2.1 oz / 59.5 g
Packaging Info
Package Weight 0.3 lb
Box Dimensions (LxWxH) 5.4 x 4.8 x 1.4"
The user manual for the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PNY Technologies users keep a unique electronic library for PNY Technologies internal drivess, where you can use our link to download the user manual for the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB.

The user manual lists all of the functions of the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PNY Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PNY Technologies 480GB 2.5" 7mm CS2111 SSD7CS2111-480-RB. User manuals are also available on the PNY Technologies website under Computers & Solutions - Drives & Storage - Internal Drives.
