User manual for the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB
The user manual for the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Graphic Display Cards.

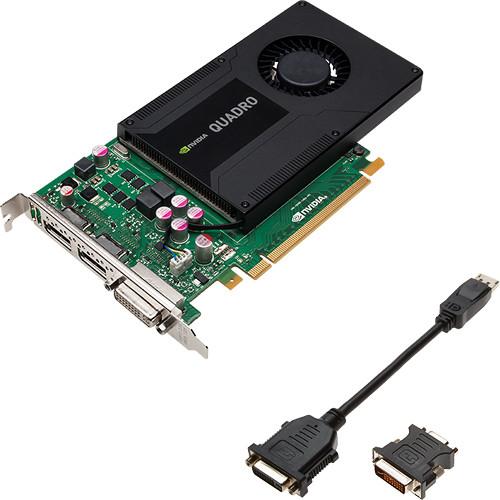

The nVIDIA Quadro K2000 Display Card from PNY Technologies is a PCI Express 2.0 x16 graphics card featuring 384 CUDA cores along with 2GBs of GDDR5 GPU memory for enhanced graphics performance. With a 128-bit memory interface you benefit from memory bandwidth up to 64.0GB/s.
The Quadro K2000 comes equipped with one DVI and two DisplayPort 1.2 connecters, supporting the use of up to four displays simultaneously. Included adapters provide further display support, with one DisplayPort to DVI-D SL adapter and one DVI-I to VGA adapter. Once connected, you'll benefit from an ultra-high resolution of 3840 × 2160 at 60Hz via the DisplayPort 1.2 input.
|
If you own a PNY Technologies graphic display cards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB:
| System Interface | PCI Express 2.0 x16 | | CUDA Cores | 384 | | GPU Memory | 2GB GDDR5 | | Memory Interface | 128-bit | | Memory Bandwidth | 64.0GB/s | | Maximum Power Consumption | 51W | | ENERGY STAR Qualified | Yes | | Thermal Solution | Ultra-quiet active fan sink | | Form Factor | Single Slot, Full Height | | Display Connectors | DVI-I DL + DP 1.2 + DP 1.2 | | DisplayPort 1.2 | Yes | | DisplayPort with Audio | Yes | | DVI-D Single-Link Connector | Via included adapter | | VGA Support | Via included adapter | | Number of Displays Supported | 3 direct, 4 DP 1.2, 2 Win XP | | Maximum DP 1.2 Resolution | 3840 x 2160 at 60Hz | | Maximum DVI-I DL Resolution | 2560 x 1600 at 60Hz | | Maximum DVI-I SL Resolution | 1920 x 1200 at 60Hz | | Maximum VGA Resolution | 2048 x 1536 at 85Hz | | HDCP Support | Yes | | Graphics APIs | Shader Model 5.0, OpenGL 4.3, DirectX 11 | | Compute APIs | CUDA, DirectCompute, OpenCL | | NVIEW | Yes | | Mosaic Mode | Yes (Windows 7 and Linux) | | NVIDIA 3D / 3D Vision Pro | Yes, via USB Port | | Minimum System Requirements | Windows 8, 7, Vista, XP SP3, Linux, or Solaris
PCIe x16 expansion slot
1GB or more of system memory, 2GB recommended
200MB of available disk space for full driver installation
Blu-ray, DVD-ROM drive
DisplayPort, DVI or VGA compatible display(s) | | 3D Graphics Architecture | Scalable geometry architecture
Hardware tessellation engine
FXAA/TXAA dedicated anti-aliasing engine
Bindless textures
Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
Up to 16K x 16K texture and render processing
Transparent multisampling and super sampling
16x angle independent anisotropic filtering
32-bit per component floating point texture filtering and blending
Up to 64x full scene antialiasing
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
Dedicated H.264 encoder
Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) | | nVIDIA CUDA Parallel Processing Architecture | SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
NVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches) | | Advanced Display Features | Simultaneously run three directly connected displays, each with full display capabilities
Support up to four displays with DisplayPort 1.2 Multi-Stream technology
Dual DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 3840 x 2160 at 60Hz)
DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz)
Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link) and DisplayPort to HDMI cables available
DisplayPort, DVI, and HDMI support HDCP
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connections)
NVIDIA 3D Vision technology, 3D DLP, interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology
NVIDIA Mosaic technology
Only two displays supported under Windows XP SP3 | | DisplayPort and HDMI Digital Audio | Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
Data rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz, and 192kHz
Word sizes of 16-bit, 20-bit, and 24-bit | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.0 x 6.5 x 2.5" | |
The user manual for the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB can be downloaded in .pdf
format if it did not come with your new graphic display cards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other PNY Technologies users keep a unique electronic library
for PNY Technologies graphic display cardss,
where you can use our link to download the user manual for the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB.
The user manual lists all of the functions of the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB,
all the basic and advanced features and tells you how to use the graphic display cards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from PNY Technologies service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the PNY Technologies nVIDIA Quadro K2000 Display Card VCQK2000-PB. User manuals are also
available on the PNY Technologies website under Computers & Solutions - Computer Components - Graphic Display Cards.
