Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5
  • Manufacturer: Polsen
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Polsen
  • Settings and expert assistance
  • Contact Polsen service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD
We recommend checking out our discussion threads on the Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5, which address similar problems with connecting and setting up Wireless Systems Polsen.


User manual for the Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5

The user manual for the Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

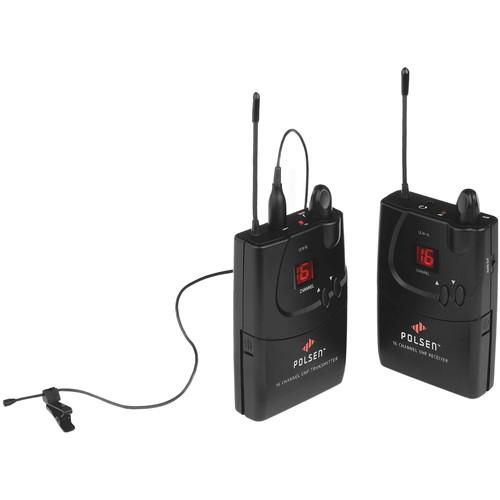

The Polsen ULW-16 is a 16-channel camera-mountable UHF wireless system designed to transmit audio up to 300'. Engineered to be exceptionally quiet, and with many professional features like headphone monitoring, line input, and frequency agility, the ULW-16 is ideal for EFP (electronic field production),DSLR, and many other video applications.
If you own a Polsen wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5Download user manual for Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5
(PDF file, 1.47 MB)
Additional parameters of the Polsen ULW-16 - 16-Channel Camera-Mountable UHF ULW-16-PL5:
Specifications
    System
    Frequency Range 584.400 to 602.450 MHz
    Number of Channels 16
    Frequency Bands Ch. 1: 584.400 MHz

    Ch. 2: 587.500 MHz

    Ch. 3: 589.575 MHz

    Ch. 4: 591.050 MHz

    Ch. 5: 593.425 MHz

    Ch. 6: 595.200 MHz

    Ch. 7: 598.450 MHz

    Ch. 8: 599.650 MHz

    Ch. 9: 601.275 MHz

    Ch. 10: 603.775 MHz

    Ch. 11: 605.500 MHz

    Ch. 12: 606.750 MHz

    Ch. 13: 586.025 MHz

    Ch. 14: 590.525 MHz

    Ch. 15: 594.150 MHz

    Ch. 16: 602.450 MHz



    Switching Bandwidth 25 MHz
    Peak Deviation ±55 kHz
    Total Harmonic Distortion <0.8%
    Operating Distance >100' (30.5 m); 300' (91.4 m) in optimum conditions
    Transmitter
    Frequency Response 60 Hz to 80 kHz
    RF Output Power 10 mW
    Spurious Rejection >55 dBc
    Maximum Input Voltage 1,000 mV
    Input 1/8" (3.5 mm)
    Power Supply Two (2) AA batteries
    Operating Time Approximately 8 hours
    Dimensions 4.4 × 2.6 × 1.1" (11.3 × 6.5 × 2.9 cm)
    Weight 3.3 oz (94 g)
    Receiver
    Sensitivity -102 dBm
    Dynamic Range >95 dB
    Signal-to-Noise Ratio >105 dB (A)
    Image Rejection 56 dB
    Output 1/8" (3.5 mm) 1 kΩ
    Power Supply Two (2) AA batteries
    Operating Time Approximately 8 hours
    Dimensions 4.4 × 2.6 × 1.4" (11.3 × 6.5 × 3.5 cm)
    Weight 3.5 oz (100 g)
    Lavalier
    Transducer Back electret condenser
    Polar Pattern Omnidirectional
    Frequency Response 20 Hz to 20 kHz
    Sensitivity -45 dB ±3 dB
    Impedance 2000 ohm
    Maximum SPL 135 dB
    Dynamic Range 105 dB
    Operating Voltage 1.5 - 12 VDC
    Connector 1/8" (3.5 mm)
    Head Diameter 0.14" (3.5 mm)
    Packaging Info
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 11.9 x 8.7 x 2.8"
