User manual for the Powerwerks PW50 50 Watt Personal PA System PW50
The user manual for the Powerwerks PW50 50 Watt Personal PA System PW50 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

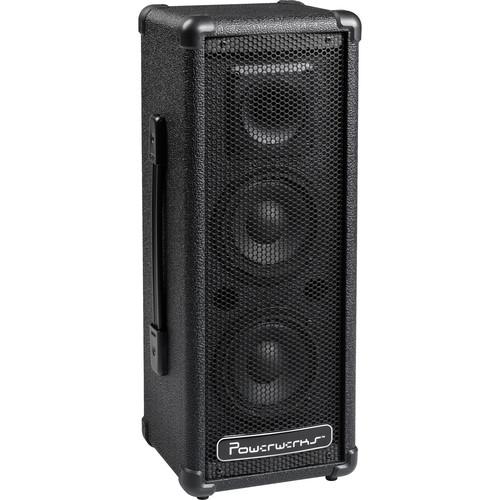

The PW50 50 Watt Personal PA System from PowerWerks is designed for use in a variety of PA applications, such as vocals, instruments, keyboards, drum machines, audio devices, and more. It boasts twin 4.5-inch speakers in addition to a high-frequency driver for balanced mid- and high-range sounds, helping vocals cut through in a mix. The PA has a heavy-duty steel grille for durability, and features a 1/4" subwoofer output for connecting an optional subwoofer.
If you own a Powerwerks portable pa systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Powerwerks PW50 50 Watt Personal PA System PW50 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Powerwerks PW50 50 Watt Personal PA System PW50:
| Output Power || Output Power 1%: 50 W @ 8 Ω |
| Inputs || Channels 1 & 2: |
Mic: Balanced XLR
Line Level: Unbalanced 1/4" (6.3 mm)
Line Level: 1/8" (3.5 mm) headphone/line stereo mixed mono
| Frequency Response || 20 Hz to 20 kHz, Actual response is tailored to speaker cabinet for accurate acoustical response |
| Hum and Noise || Residual Noise, All Level Controls 0% Minimum: -65 dB |
Nominal System Noise, All Level Controls at 50%: -48 dB
| System Gain || Mic to Speaker Output (Channels 1 & 2): +70 dB @ 1 kHz |
Line to Speaker Output (Channels 1 & 2): +56 dB @ 1 kHz
Aux In to Speaker Output: +42 dB @ 1 kHz
| Channel EQ || 4 kHz and above , 800 Hz and below |
| Sync || In and Out: Both jacks accept a balanced input and send a pre-master volume output mix of channels. Recommended use: Linking two PW50's together. |
| Subwoofer Output || Line Out, 20 to 150 Hz |
| Phantom Power || +15 V on Channels 1 & 2 |
| Power Requirements || USA/Canada: 120 VAC/60 Hz, 80 W nominal |
Europe: 230 VAC/50 Hz, 80 W nominal
UK: 230 VAC/50 Hz, 80 W nominal
Australia: 240 VAC/50 Hz, 80 W nominal
Japan: 100 VAC/50-60 Hz, 80 W nominal
| Speakers || 2x 4.5", 50 W @ 4 Ω |
| Horn || 3.5" piezo driver |
| Power Capacity || 50 W RMS |
| Frequency Response || Full Range (Subwoofer jack not used): 60 Hz to 20 kHz |
Crossover Active (Subwoofer jack in use): 150 Hz to 20 kHz
| Nominal Impedance || 8 Ω (not designed for external speakers) |
| Dimensions (W x H x D) || 7.5 x 18.0 x 6.5" (190 x 460 x 165 mm) |
| Weight || 14.7 lb (6.7 kg) |
| Package Weight || 18.0 lb |
| Box Dimensions (LxWxH) || 22.0 x 10.2 x 9.8" |
The user manual for the Powerwerks PW50 50 Watt Personal PA System PW50 can be downloaded in .pdf
format if it did not come with your new portable pa systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Powerwerks users keep a unique electronic library
for Powerwerks portable pa systemss,
where you can use our link to download the user manual for the Powerwerks PW50 50 Watt Personal PA System PW50.
The user manual lists all of the functions of the Powerwerks PW50 50 Watt Personal PA System PW50,
all the basic and advanced features and tells you how to use the portable pa systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Powerwerks service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Powerwerks PW50 50 Watt Personal PA System PW50. User manuals are also
available on the Powerwerks website under Pro Audio - Live Sound - Portable PA Systems.
Question and answer discussion forum concerning user instructions and resolving problems with the Powerwerks PW50 50 Watt Personal PA System PW50
Post new comment to Powerwerks PW50 50 Watt Personal PA System PW50
|Subject: Powerwerks PW50|
|Date: 18.02.2020 05:06:56||Author: James Ulan|
Please email the schematic for this amplifier.
