User manual for the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI

The user manual for the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

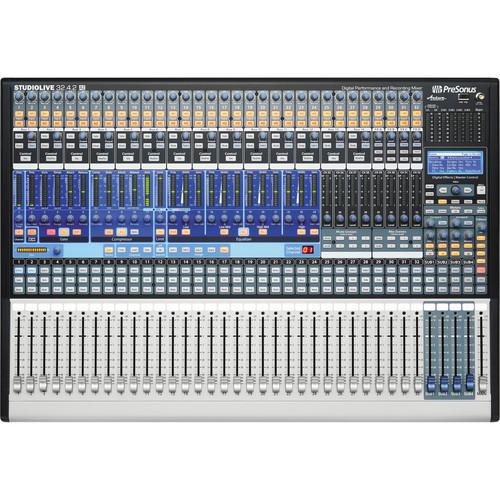

The PreSonus StudioLive 32.4.2AI Digital Recording Console with Active Integration is designed for live sound reinforcement, live recording, and studio recording applications. The mixer is an integrated hardware and software system with dual digital Fat signal processing on every channel, recallable scene presets, virtual sound check, remote control using a Windows computer, Mac, or iPad, remote monitor mixing using an iPhone or iPod Touch, and all the software you need for live mixing, recording, and distributing your music online.

The unit features 32 input channels with +48V phantom powered XLR XMAX microphone preamplifiers and bypass-able balanced 1/4" TRS line-level inputs, a 48-In/34-Out FireWire s800 recording and playback interface with two FireWire ports, 14 auxiliary buses, 4 subgroups, a talkback button, and extensive LED metering. For outputs the mixer includes a balanced XLR mono output, a left and right pair of balanced stereo XLR main outputs, a left and right pair of balanced 1/4" TRS control-room outputs, a left and right stereo pair of RCA connectors for Tape output, an SPDIF out, and three balanced 25-pin D-sub pre-insert direct outputs.

For effects, the mixer features 32-bit floating point processing with 4-band parametric EQs, eighteen 31-band graphic EQs, high-pass filters, limiters, compressors, expander/gates with key listen and key filter, reverbs, and delays.

For mixing, each channel features a 100mm long-throw fader, military-grade quick-touch buttons for toggling effects, and rotary encoders for controlling functions such as the attack, ratio, and release of the compressor, the panning position of a channel, and the frequency setting of the equalizers or filters.

The mixer comes with Active Integration Virtual StudioLive advanced librarian/editor control software for a Windows computer or Mac: the StudioLive remote control application for Apple iPad (free from Apple App Store), the QMix remote auxiliary mix application for iPhone or iPod Touch (free from Apple App Store), Capture integrated multi-track-recording software, and Studio One digital audio workstation including 6GB of loops, plug-ins, and virtual instrument sounds.
If you own a PreSonus digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AIDownload user manual for PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI
(PDF file, 19.88 MB)
Additional parameters of the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI:
Specifications
    Preamp
    Number of Channels 32
    Type Balanced XLR Female
    Frequency Response To Direct Output: 20 Hz to 40 kHz at ± 0.5 dBu
    To Main Output: 20 Hz to 20 kHz at ± 0.5 dBu
    Input Impedance 1 kOhm
    THD To Direct Output: <0.007%, +4 dBu, 20 to 20,000 Hz unity gain, un-weighted
    To Main Output: <0.005%, +4 dBu, 20 to 20,000 Hz, unity gain un-weighted
    EIN +125 dB un-weighted, +130 dB A-weighted
    S/N Ratio To direct output: 105 dB
    To main output: 94 dB
    Common Mode Rejection +65 dB
    Gain Control -15 dB to +65 dB (± 1 dB)
    Maximum Input Level +22 dBu
    Phantom Power +48 VDC
    Line Inputs
    Type 1/4" (6.3 mm) TRS Female, balanced mono
    Frequency Response To direct outputs: 10 Hz to 40 kHz at 0/-0.5 dBu
    To main outputs: 20 Hz to 20 kHz at ± 0.5 dBu
    Input Impedance 10 kOhms
    THD To direct output: <0.0007% +4 dBu, 20 to 20,000 Hz at unity gain un-weighted
    To main output: <0.005% +4 dBu, 20 to 20,000 Hz, unity gain, un-weighted
    S / N Ratio To direct output: 105 dB
    To main output: 94 dB
    Gain Control -20 dB to +20 dB
    Maximum Input Level +22 dBu
    Tape
    Type Inputs: Balanced Mono 1/4" (6.3 mm) TRS female
    Maximum Input Level +22 dBu
    AUX Section
    Input Inputs: 2 x Stereo balanced 1/4" (6.3 mm) TRS pairs
    Maximum Input Level +18 dBu
    Outputs
    Type Main Outputs:2 x balanced stereo XLR male
    2 x balanced stereo 1/4" (6.3 mm) TRS female
    1 x balanced mono XLR male

    Aux:1 x balanced mono 1/4" (6.3 mm) TRS female

    Subgroup:4 x balanced mono 1/4" (6.3 mm) TRS female

    Tape: 2 x unbalanced stereo RCA Female (pair)

    Control room:2 x balanced stereo 1/4" (6.3 mm) TRS female (pair)
    Output Level Main Outputs: +24 dBu

    Aux: +18 dBu

    Subgroup: +18 dBu

    Tape: +18 dBu

    Control room: +18 dBu
    Output Impedance Main Outputs: 100 ohms

    Aux: 100 ohms

    Tape: 100 ohms

    Control room: 100 ohms
    Crosstalk Input to Output: -90 dBu
    Adjacent Channels: -87 dBu
    Processing
    A/D Converter Burr Brown
    D/A Converter Burr Brown
    DSP OMAP L138 processor
    Gate Key listen: 2nd-order resonant bandpass
    Q = 0.7
    Off, 40 Hz to 16 kHz

    Threshold Range: -84 dB to 0 dB

    Gate Attenuation Range; -84 dB to 0 dB / infinity

    Attack Time: 0.02s to 500 ms/ 0.5 ms

    Release Time: 005 to 2 s

    Expander Attenuation Range: 2:1
    Limiter Threshold: -56 dB to 0 dB/-28 dBFS
    Ratio: ∞:1
    Attack: 20 ms
    Hold: 10 ms
    Release: 20 ms
    Compressor Threshold Range: -56 to 0 dB
    Ratio: 1:1 to 14:1
    Attack Time: 0.2 to 150 ms
    Release Time: 40 to 1000 ms
    Auto Attack: 10 ms
    Auto Release: 150 ms
    Curve Types: Hard and soft knee
    Parametric Equalizer Type: 2nd-order shelving filter (Q = 0.55)
    Low (lowpass or bandpass): 36 to 465 Hz ± 15 dB
    Low Mid: 90 to 1,200 Hz ±15 dB
    High Mid: 380 to 5,000 Hz ±15 dB
    High (highpass or bandpass): 1,400 to 18,000 Hz ±15 dB
    Q: 0.1 to 4
    Graphic EQ 31-Band 1/3 Octave Controls: Curve-fitting algorithm
    Gain/Attenuation: ±15 dB
    Digital Audio
    ADC Dynamic Range A-weighted at 48 kHz: 118 dB
    DAC Dynamic Range A-weighted at 48 kHz: 118 dB
    Firewire S800 at 800 Mb/s
    Internal Processing 32-bit, floating point
    Sampling Rate 44.1 and 48 kHz
    Resolution 24-bit
    Reference Level +18 dBu
    Clock
    Jitter <20 ps RMS(20 to 20,000 Hz)
    Attenuation >60 dB (1 ns in approximately 1 ps out)
    Environmental
    Connector IEC
    Input Voltage Range 100 to 230 V at 50 to 60 Hz
    Power Requirements 200 W
    Temperature Range 32 to 104°F (0 to 40°C)
    Network Connectivity 1 x Ethernet port for connecting to a network switch
    1 x USB 2.0 port with Wi-Fi LAN adapter (included)
    Computer Requirements
    General For Virtual StudioLive

    PreSonus Universal Control 1.5.3 or later
    IEEE 1394 FireWire 800 port
    Internet connection recommended
    DVD-ROM drive
    Internal or External 7200rpm storage drive highly recommended
    Monitor with 1024 x 768 resolution
    Windows Windows Vista x64/x86 SP2, Windows 7 x64/x86 SP1, Windows 8 x64/x86
    Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
    2 GB RAM (4 GB or more recommended)
    Mac Mac OS X 10.6.8 or later
    Intel Core Duo processor (Intel Core 2 Duo or Core i3 or better recommended)
    2 GB RAM (4 GB or more recommended)
    Physical
    Dimensions (L x W x D) 21.31 x 31.58 x 7.02" (54.13 x 80.21 x 17.82 cm)
    Weight 50.00 lb (22.68 kg)
    Packaging Info
    Package Weight 62.6 lb
    Box Dimensions (LxWxH) 38.0 x 32.0 x 14.0"
    The user manual for the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus digital mixerss, where you can use our link to download the user manual for the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI.

    The user manual lists all of the functions of the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI. User manuals are also available on the PreSonus website under Pro Audio - Recording - Digital Mixers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI

    Post new comment to PreSonus StudioLive 32.4.2AI Digital STUDIOLIVE 32.4.2 AI

    Subject: Needing to reset sliders
    Date: 18.05.2017 18:15:15Author: Phil Alford
    I have started needing to run sliders up and down after powering up and loading a scene. Otherwise, there is minimal response.
