User manual for the Proavio DS240FS 21.6TB (24 x 900GB) 24-Bay SAS HDD DS240F8-F21TS

The user manual for the Proavio DS240FS 21.6TB (24 x 900GB) 24-Bay SAS HDD DS240F8-F21TS provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

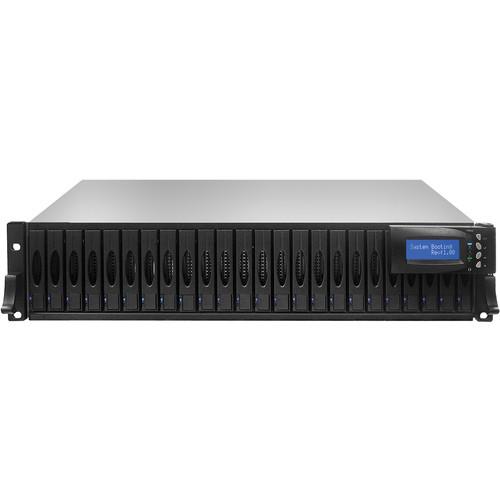

The DS240FS 21.6TB (24 x 900GB) 24-Bay SAS HDD RAID Array with Dual Controllers from Proavio combines a dual active RAID design and twenty four 900GB 2.5" 10,000 rpm SAS hard drives for capturing, editing, and rendering full resolution videos without compromising on quality. This array offers four high-speed 16 Gb/s SFP optical ports on two controllers which delivers data at full performance and redundancy that is expected of an enterprise solution. It is designed in a 2RU form factor and includes 16GB of RAM.

The hot-swappable hard drives can be configured in RAID modes such as performance, redundancy, or both. This array supports SAN network configurations such as VMware, Xsan, and more. These features provide real-time file sharing in IT infrastructures as well as postproduction workflows. When the drives are set for performance, the increased read and write speeds will better handle 4K media formats such as DPX, RED R3D, ARRIRAW, and more. Furthermore, a dual-port 6 Gb/s SAS expansion bus allows data growth capacities up to 192TB with multiple expansion nodes.

This storage array comes equipped with redundant hot-swappable modules that offer power and cooling with dual power supplies and smart cooling fans. This feature provides redundancy and reliability for critical and intensive data applications. In addition to the modules, this array is compatible with Thunderbolt-to-FC bridging technologies to add support for both Fibre and Thunderbolt users.
If you own a Proavio hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Proavio DS240FS 21.6TB (24 x 900GB) 24-Bay SAS HDD DS240F8-F21TS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Proavio DS240FS 21.6TB (24 x 900GB) 24-Bay SAS HDD DS240F8-F21TS:
Total Raw Capacity 192 TB
Maximum Number of Drives Supported 120
Included Storage Capacity 21.6 TB
24 x 900 GB 10,000 rpm, 2.5" SAS hard drives
Form Factor 2 x dual active-active controllers
24-Disk, 2 RU storage/SAN array
Memory 16 GB (2 x 8 GB)
Ports 4 x 16 Gb/s FC, SFP, optical
2 x 6 Gb/s SAS ports
Disk Support 2.5" / SAS SSD / 6 Gb/s and 12 Gb/s
2.5" / 10,000 rpm enterprise SAS / 6 Gb/s
Storage Protocols 16 Gb/s Fibre Channel
RAID & Volume Operation RAID level 0 ( 0+1 ), 3, 5, 6, 10, 30, 50, 60, and JBOD
Multiple array support
Up to 128 logical volumes
Hot-swap drive support
Global and dedicated spare drive assignment
Online volume expansion
High Availability Dual-active RAID controller
Flexible RAID group ownership management
Multi-path and load-balancing support
Expansion 6 Gb/s SAS Expansion Bus (SFF8088), Up to 96 Disks
Infrastructure Support Direct attached or SAN
OS Support Windows 7, Windows Server 2012, Windows Server 2008, Linux, Mac OS X, VMware VSphere/ESX
Performance Up to 3,500 MB/s
Hot-Swap Support 2 x 400 W, 80 PLUS, load-balancing, hot-swap power modules
Power Requirements 90 to 264 VAC
7.5 to 4 A, 47 to 63 Hz (each module)
System Cooling 2 x hot-swap smart fan modules
Operating Temperature 50 to 104°F / 10 to 40°C
Relative Humidity 10 to 85% non-condensing
Compliance RoHS, CE, TUV, FCC
Certifications VMware VSphere 5
SAN Software Compatibility FibreJet, MetaSAN, SANmp, Stornext, and Xsan
Dimensions 22.0 x 19.0 x 3.5" / 55.9 x 48.3 x 8.9 cm
Weight 44 lb / 20.0 kg (32 lb / 14.5 kg without disk drives)
Packaging Info
Package Weight 80.0 lb
