User manual Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879

Operating instructions and pdf manual for use - Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879 User manual, User manual Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879, Pyle, Pro, PADH879, 300W, 8, 2-Way, PA, Cabinet, Speaker,


User manual for Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Pyle Pro PADH879 300W 8
  • Manufacturer: Pyle Pro
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Pyle Pro
  • Settings and expert assistance
  • Contact Pyle Pro service
  • Troubleshooting
  • Warranty information
  • Price: 58 USD
We recommend checking out our discussion threads on the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879, which address similar problems with connecting and setting up PA Speakers Pyle Pro.



User manual for the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879

The user manual for the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

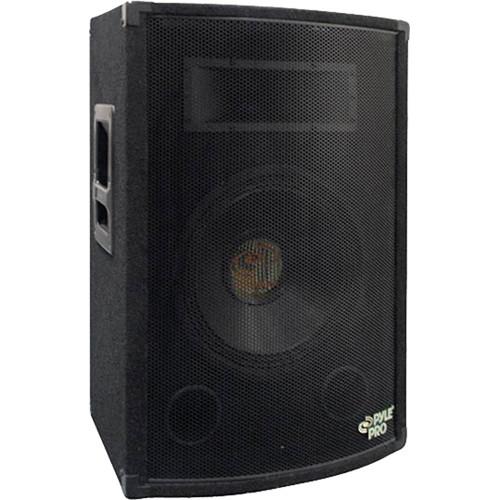

The PADH879 300W 8" 2-Way PA Cabinet Speaker from Pyle-Pro provides high-quality audio for professional DJ and public address applications. An 8" woofer and 1" titanium compression tweeter provide clear audio with a wide frequency response. A 3 x 7" super horn around the tweeter provides a wide dispersion pattern to reach a wide audience. Bass ports in the enclosure help to extend low frequencies. The speaker has a 300W peak power handling capability for a strong, distortion-free performance.

The speaker has Speakon, 1/4", and binding post input connectors in parallel for wide compatibility with a variety of sound systems and devices. The cabinet is made from heavy-duty MDF with a metal grille and reinforced corners for road-worthy durability. Heavy-duty integrated handles provide convenient transportation, while a 35mm pole socket on the bottom makes it easy to mount on top of a subwoofer or on a speaker stand.
If you own a Pyle Pro pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Pyle Pro PADH879 300W 8Download user manual for Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879
(PDF file, 0.78 MB)
Additional parameters of the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879:
Active or Passive Passive
Frequency Response 50Hz - 20kHz
Power Capacity 150W RMS, 300W Peak
Maximum Sound Pressure Level (SPL) Not Specified by Manufacturer
Nominal Sensitivity 96dB
Impedance 8 Ohms
Crossover 5kHz
Low Frequency Driver 8" (203mm) Woofer with a 1.5" Kapton Voice Coil and a 40 oz Magnet
High Frequency Driver 1" (25mm) Horn-Loaded Titanium Compression Tweeter with a 20 oz Magnet
Enclosure Material Heavy-Duty MDF with Carpet Covering, Reinforced Corners, Metal Grille, and Integrated Handles
Mounting 35mm Pole Socket
Input Connections 2 x Speakon Inputs
2 x 1/4" Inputs
2 x Binding Post Inputs
Dimensions (WxDxH) 13.5 x 12 x 19" (343 x 305 x 483mm)
Weight 23.5 lbs (10.68kg)
Packaging Info
Package Weight 23.5 lb
Box Dimensions (LxWxH) 20.6 x 14.6 x 13.3"
The user manual for the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pyle Pro users keep a unique electronic library for Pyle Pro pa speakerss, where you can use our link to download the user manual for the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879.

The user manual lists all of the functions of the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pyle Pro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pyle Pro PADH879 300W 8" 2-Way PA Cabinet Speaker PADH879. User manuals are also available on the Pyle Pro website under Pro Audio - Live Sound - PA Speakers.
