User manual Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400

Operating instructions and pdf manual for use - Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400 User manual, User manual Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400, Pyle, Pro, PDWM3400, UHF, Wireless, Microphone, System, PD


User manual for Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400
  • Manufacturer: Pyle Pro
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Pyle Pro
  • Settings and expert assistance
  • Contact Pyle Pro service
  • Troubleshooting
  • Warranty information
  • Price: 110 USD
We recommend checking out our discussion threads on the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400, which address similar problems with connecting and setting up Wireless Systems Pyle Pro.



User manual for the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400

The user manual for the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

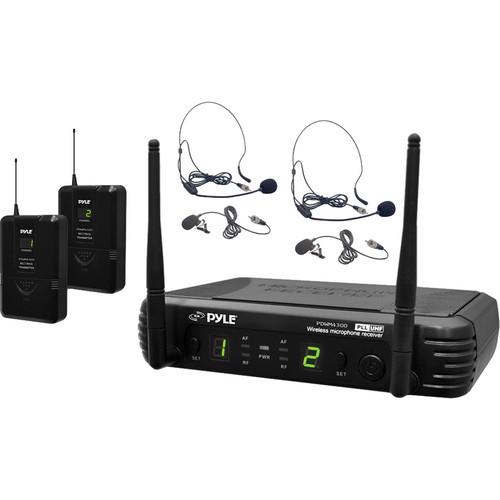

The 673 to 697.975 MHz Pyle Pro PDWM3400 UHF Wireless Microphone System with Two Bodypacks, Two Headset Microphones, and Two Lavalier Microphones (673 to 697.975 MHz) is designed for recording and live sound reinforcement applications such as for concerts, theater, fitness classes, public speaking, and more. The system consists of a UHF wireless receiver that utilizes the phase lock loop-synthesized control technique to offer two simultaneous audio channels on eight selectable UHF transmission channels between 673 and 697.975 MHz. Two foldable and adjustable antennas help provide a reception range of 164'. Multiple systems can be used in the same area on different channels without interference.

The front panel of the receiver features a power button, and channel selector buttons for audio channels A and B, as well as radio frequency and audio level indicator lights. The back of the panel features volume control knobs for channels A and B, as well as a balanced XLR output connector and an unbalanced 1/4" phone output connector.

The system comes with two bodypack transmitters with channel selector controls and displays, as well as a low battery warning indicator light. Each transmitter is powered by two AA batteries. For capturing vocals, the system also includes two hands-free headset microphones and two lavalier microphones with built-in clothing clips.
If you own a Pyle Pro wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400:
System
Operation Range 164'
Channels Up to eight UHF channels
Output 1x 1/4" TRS Phone jack
1x balanced XLR jack
Power Supply 110/220 V
Receiver
RF Frequency Range 673 to 697.975 MHz
Image & Spurious Rejection > 70 dB
Receiving Sensitivity -105 dB
Signal / Noise -105 dB
Border Upon Channel Rejection > 70 dB
THD < 1%
Audio Output Level 0 to 300 mV
Power Requirements 13 to 15 VDC nominal 500 mA
Dimensions (W x D x H) 6.80 x 5.30 x 1.70" (17.3 x 13.5 x 4.32 cm)
Weight Not specified by the manufacturer
Bodypack Transmitter
RF Frequency Range 673 to 697.975 MHz
RF Output > 10 dBm
Modulation FM
Deviation ± 40 kHz
Spurious Emission > 55 dBc
Current < 40 mA
Power Requirements 2x 1.5 V AA (not included)
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 11.6 x 7.6 x 4.6"
The user manual for the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pyle Pro users keep a unique electronic library for Pyle Pro wireless systemss, where you can use our link to download the user manual for the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400.

The user manual lists all of the functions of the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pyle Pro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400. User manuals are also available on the Pyle Pro website under Pro Audio - Live Sound - Wireless Systems.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400

Post new comment to Pyle Pro PDWM3400 UHF Wireless Microphone System PDWM3400

Subject: System Set up
Date: 04.08.2016 18:42:35Author: Julie
Just received the system. What do I need to do to get it running? The instruction manual is unclear.
