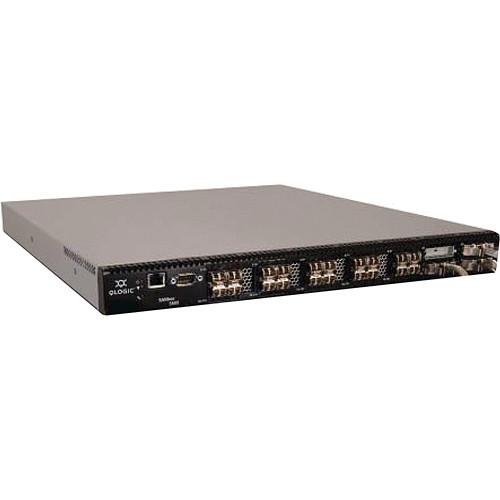

The Q-Logic SANbox SB5800V-08A-E Fiber Channel Stack Switch is a single power unit including eight 8GB active device ports which are expandable to twenty ports and four 10GB stacking active ports that are upgradeable to 20GB speed. This switch is specifically manufacturered and qualified for use with EMC systems. The dual speed Q-Logic SANbox SB5800V-08A-E provides superior performance at a price per port that is competitive with single speed, nonstacking edge switches.
If you own a Q-Logic network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Q-Logic SANbox SB5800V-08A-E Fiber Channel Stack SB5800V-08A-E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Q-Logic SANbox SB5800V-08A-E Fiber Channel Stack SB5800V-08A-E:
Fiber Channel
Fiber Channel Protocols Physical interface (FC-PI-3)
Line services (FC-LS)
Framing and signaling (FC-FS-2)
Generic services (FC-GS/FC-GS-2/FC-GS-3/FCGS-4/FC-GS-5) except for enhanced zoning
Switch fabric (FC-SW-2/FC-SW-3/FC-SW-4)
Arbitrated loop Rev. 4.6 (FC-AL)
Arbitrated loop-2 Rev. 7.0 (FC-AL-2)
Fiber loop attachment (FC-FLA)
Tape technical report (FC-Tape)
Virtual interface architecture mapping (FC-VI)
Fabric element MIB specification (RFC 2837)
Fiber alliance MIB specification (Version 4.0)
Methodologies for interconnects (FC-MI-2)
Device attach (FC-DA; security protocols (FC-SP)
Fiber Channel Classes of Service Class 2, Class 3 and Class F (inter-switch frames) connectionless
Modes of Operation Fabric, public loop, broadcast
Ports Per Chassis Eight to twenty 8Gb/s ports (upgradable in 4-port increments)
Four 10/20Gb/s XPAK MSA-compliant ports (10Gb/s default; upgradable to 20Gb/s)
Multiswitch Fabric Support All topologies including stack, cascade, cascaded loop and mesh
Multiple 10/20Gb/s or 8Gb/s links
Adaptive trunking and intelligent path selection
Port Types All ports are universal, auto-discovering, selfconfiguring and assume the following states:
F_Port, FL_port, E_port, G_Port, and GL_Port
Media & Performance
Fabric Port Speed 2/4/8Gb/s, 10/20Gb/s full duplex. All ports auto negotiate with slower devices or ports
Fabric latency less than 0.2 μs
Cut-through routing
Fabric Point-to-Point Bandwidth 1700Mb/s full duplex on 8Gb/s ports
5100Mb/s full duplex on 20Gb/s ports
Aggregate Bandwidth 544Gb/s per chassis; nonblocking architecture
Maximum Frame Sizes 2,148 bytes (2,112 bytes payload)
Per-port Buffering ASIC-embedded memory (nonshared)
Guaranteed 16-credit, multiread port buffer, up to 13km at 2Gb/s and 2km at 10Gb/s
Extended distance through credit donation
Clip Splitting Hot-pluggable, industry-standard 3.3V SFP+ transceivers for 8Gb/s ports
Hot-pluggable, industry-standard XPAK optics or copper stacking cables for 10/20Gb/s ports
Compatible with 4Gb/s and 2Gb/s SFPs
Supported SFP Types Shortwave / longwave (optical) and active copper
Maximum Media Transmission Ranges Device ports (2Gb/s)
- Shortwave optical: 500 m (1,640 ft.)
- Longwave optical: 10 km (6.2 mi.)
Stacking ports (10Gb/s)
- Shortwave optical: 300 m (984 ft.)
- Longwave optical: 2 km (1.2 mi.)
Cable Types 50/62.5 micron multimode fiber optic
9 micron single-mode fiber optic
Interoperability Compatible with FC-SW-2 compliant switches including Brocade, Cisco and McDATA
Interoperable with leading SAN management applications
Fabric Management
Management Methods QuickTools web applet
CLI
Enterprise Fabric Suite (optional)
API, GS-4 management server (including FDMI), SNMP, RADIUS, FTP, TFTP and SMI-S
Access Methods 10 / 100 Ethernet baseT (RJ45), serial port (RS‑232 with DB9) and inband (Fiber Channel)
Diagnostics Power-on self test
Optional SANdoctor fabric diagnostics software
Fabric Services Simple name server, hardware-based zoning, RSCN, I/O StreamGuard, multichassis in-order delivery, automatic path selection, FDMI, NPIV support and IPv6 support
User Interface LEDs, command line console and web utilities
Mechanical/Power/Cooling Single integrated power supply
Optional rail mount kit
Front-to-back air flow
RoHS compliant
Environmental Requirements
Operating Temperature 41 - 104° F (5 - 40° C)
Non-Operating Temperature -4 - 158° F (-20 - 70° C)
Operating Humidity 10 - 90% noncondensing
Non-Operating Humidity 10 - 95% noncondensing
Operating Altitude 0 - 10,000 ft.
Non-Operating Altitude 0 - 50,000 ft.
Operating Vibration 5 - 500 Hz, 0.27 g, 5 sweeps
Non-Operating Vibration 2 - 200 Hz, 0.5 g, 5 sweeps
Operating Shock 3.5 g, 3 ms, half sine, 20 repetitions
Non-Operating Shock 50 g, 4216 mmps, 13 msec, 3 axis
Power
Power Requirements 100 - 240 VAC; 50 - 60 Hz
Power Load 1A at 120 VAC; 0.5A at 240 VAC
Power Consumption 73 W nominal; 83 W typical maximum
General
Agency Approval Product Safety: US / Canada: UL / cUL, 60950 - 1
Europe: EN60950, CB Scheme - IEC 60950 - 1, CE, TUV, Low voltage directive
Russia: GOST R

EMI / EMC: Meets Class A emissions and immunity requirements for USA, Canada, Europe, Australia, New Zealand, Korea and Japan
Dimensions (HxWxD) 1.7 x 17 x 20" (43.2 x 432 x 500 mm)
Weight 15 lb (6.8 kg)
