User manual QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US

Operating instructions and pdf manual for use - QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US User manual, User manual QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US, QNAP, TS-253A, Two-Bay, NAS, Enclosure, TS-253A-4G-US, Video

User manual for QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US

QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US
  • Manufacturer: QNAP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - NAS Enclosures
  • Safety instructions
  • Startup and operation of the nas enclosures
  • Tips for setting up your QNAP
  • Settings and expert assistance
  • Contact QNAP service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD

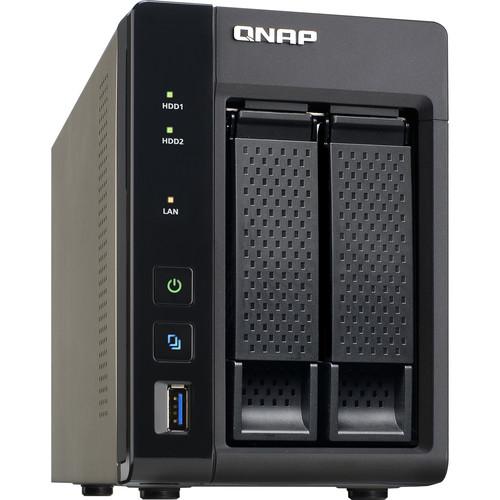

QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US
Click to enlarge image
We recommend checking out our discussion threads on the QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US, which address similar problems with connecting and setting up NAS Enclosures QNAP.


User manual for the QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US

The user manual for the QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

The QNAP TS-253A Two-Bay NAS Enclosure runs on the QTS 4.2 operating system and is able to function as a NAS server for data backup, file archiving and synchronization, remote access, and home entertainment. It is designed for SMB users and is compatible with Windows, Mac, Linux, and UNIX systems. The TS-253A is also able to perform on-the-fly and offline video transcoding; including Full HD 1920x1080 content and playback of 4K content with 7.1 channel surround sound via the HDMI ports.

The TS-253A is powered by a 1.6 GHz Intel Celeron N3150 processor that comes with four cores so you can run multiple functions simultaneously. The CPU can also achieve speeds of up to 2.08 GHz, the built-in 4GB of DDR3L RAM allows quick access to frequently-used files and programs, and network connectivity is achieved via two Gigabit Ethernet ports.

This 2-bay enclosure has the ability to natively house both 3.5" or 2.5" SATA III hard drives or SSD drives. In terms of data redundancy, a variety of RAID modes are supported including 0, 1, single disk, and JBOD. Read speeds of the TS-253A can reach up to 224 MB/s when configured in RAID 0. Additionally, data can be protected with AES 256-bit encryption while keeping the same read speeds.

QNAP has equipped this NAS enclosure with two HDMI ports along with four USB 3.0 ports. You may connect up to two displays as well as a keyboard and a mouse to control this NAS without the need of another computer. Furthermore, the two HDMI ports utilize the visual performance of integrated Intel HD Graphics to deliver 4K resolutions.

The TS-253A supports data recovery and redundancy options. In addition to backup support on Windows and Mac, it offers real time or scheduled data backup to a remote NAS or FTP server as well as rsync to back up to another remote server on a scheduled basis, such as cloud storage.
If you own a QNAP nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QNAP TS-253A Two-Bay NAS Enclosure TS-253A-4G-US:
Specifications
Hardware Specifications
CPU Intel Celeron N3150 1.6 GHz Quad-Core processor (burst up to 2.08 GHz)
Floating point unit
AES-NI hardware encryption
GPU 8th-gen Intel HD graphics
DRAM 4 GB of DDR3L 1600 MHz RAM (2 x 2 GB)
2 x SODIMM slots
Max RAM: 8 GB
Flash Memory 512 MB DOM
Hard Drive Compatibility 2 x Hot-swappable trays that support 3.5" or 2.5" SATA III (6 Gb/s) or SATA II (3 Gb/s) hard drives or SSDs
RAID RAID 0,1, JBOD, single
LAN Port 2 x Gigabit RJ-45 Ethernet port
USB 4 x USB 3.0 port (1 Front, 3 Rear)
Supports USB printer, pen drive, and USB UPS etc.
HDMI Two, up to 4K 2160P Ultra HD support
Audio Input: 2 x 1/4" (6.3 mm) microphone jacks (dynamic microphones only)
Output: line-out jack
LED Indicators Status, USB, HDD 1, HDD 2
LCD Panel Mono-LCD display with backlight
Buttons Power, USB One-Touch-Backup, Reset
IR Receiver Supports QNAP RM-IR002 Remote Control and RM-IR003 Remote Control
Interfaces Console port (system maintenance)
Alarm Buzzer System warning
Form Factor Tower
Power Consumption System sleep mode: 1.18 W
HDD standby: 8.38 W
In operation: 14.43 W
Temperature 32 to 104°F / 0 to 40°C
Humidity 5 to 95% RH non-condensing
Wet Bulb: 81°F / 27°C
Power Supply ATX 240 W, 110 to 240 VAC, 50/60 Hz, 5 A
Fan 1 x quiet cooling fan (120 mm, 12 VDC)
Secure Design Kensington security slot for theft prevention
Dimensions (HxWxD) 5.91 x 4.02 x 8.50" / 15.01 x 10.21 x 21.59 cm
Weight 3.84 lb / 1.74 kg
Software Specifications
Operating System QTS 4.2 (embedded Linux)
Supported Browsers Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+
Multilingual Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System Internal hard drive: EXT4
External hard drive: EXT4, EXT3, NTFS, FAT32, HFS+
Networking
  • TCP/IP: IPv4 & IPv6
  • Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  • Service binding based on network interfaces
  • Squid proxy server
  • Proxy client
  • DHCP client, DHCP server
  • NTP server
  • Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour discovery
  • USB Wi-Fi adapter support
    • Security
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
  • AES 256-bit external drive encryption
  • Importable SSL certificate
  • Instant alerts via E-mail, SMS, beep, push service, and LCD panel
  • 2-step verification
    • Storage Management
  • Storage Space Utilization monitoring
  • QNAP flexible Volume/LUN with thin provisioning and space reclaim3
  • 2-bay disk volume types
  • Supports storage pools
  • Supports volume/LUN snapshots: Snapshot clone, Snapshot vault, Snapshot replica, Snapshot agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion via a QNAP UX-500P/UX-800P expansion unit
  • JBOD enclosure roaming
  • SSD read-only/read-write cache
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery & RAID recovery
  • Bitmap support
    • All-in-One Server
    Print Server
  • Max number of printers: 3
  • Supports Internet Printing Protocol
  • Print job display and management
  • IP-based and domain name-based privilege control
    • iSCSI (IP SAN)
  • iSCSI Target with multi-LUNs per target (up to 256 Targets/LUNs combined
  • Supports LUN mapping & masking
  • Online LUN capacity expansion
  • Supports SPC-3 persistent reservation
  • Supports MPIO, MC/S
  • iSCSI LUN backup, one-time snapshot, and restoration
  • iSCSI connection and management by Qnap Windows QFinder
  • Virtual disk drive (via iSCSI Initiator)
  • Stack chaining master
  • Max No. of virtual disk drives: 8
    • VPN Server
  • Secure remote access: PPTP、L2TP/IPsec & OpenVPN VPN services
  • Max number of clients: 30
    • VPN Client
  • Supported VPN protocols: PPTP & OpenVPN services
  • PPTP Authentication: PAP, CHAP, MS-CHAP, MS-CHAPv2
  • PPTP Encryption: None, AES 40/128 bit, AES 256 bit
  • OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
  • Transmission package monitor
  • OpenVPN port control
  • OpenVPN link compression
    • Packaging Info
    Package Weight 6.5 lb
    Box Dimensions (LxWxH) 12.5 x 9.9 x 4.5"
