User manual Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2

Operating instructions and pdf manual for use - Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2 User manual, User manual Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2, Quam-Nichols, SYSTEM, 2, Wall, Mount, Speaker, System, SYSTE


User manual for Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2

Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2
  • Manufacturer: Quam-Nichols
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your Quam-Nichols
  • Settings and expert assistance
  • Contact Quam-Nichols service
  • Troubleshooting
  • Warranty information
  • Price: 56 USD
We recommend checking out our discussion threads on the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2, which address similar problems with connecting and setting up Install Speakers Quam-Nichols.



User manual for the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2

The user manual for the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

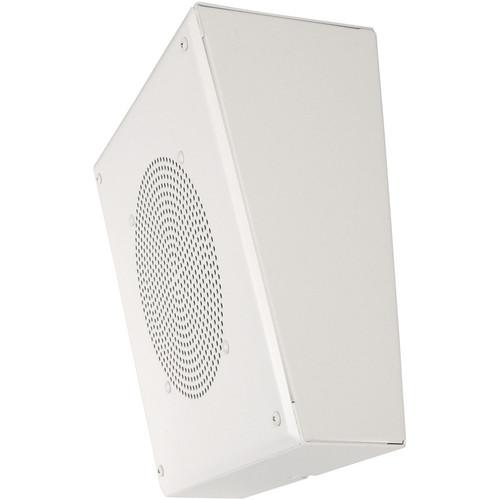

The SYSTEM 2 Wall Mount Speaker System from Quam-Nichols is a complete loudspeaker system consisting of an 8" O.D. dual cone loudspeaker and a 5W 25/70V transformer mounted on a square, screw mount. It also includes a steel baffle with a slanted, steel, vandal-resistant, surface mount enclosure with four 8-32 threaded inserts, a single 1/2" conduit entrance on the back, and 2 Wiremold knockouts. The 8C5PAX dual cone loudspeaker features a 5 oz magnet and an 8Ω nominal impedance. The BS8WS is a 22 gauge steel, square speaker baffle with 4 welded 8-32 x 1” studs on the back surface. The SE2WVP slanted format is a 16 gauge steel, vandal-resistant loudspeaker surface mount enclosure with 4 #8-32 threaded inserts and single 1/2” conduit entrance.
If you own a Quam-Nichols install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2:
Sensitivity 92 dBSPL, 1 W/m average
Power Rating Loudspeaker: 12 W RMS, EIA 426A standard
Output Maximum: 15 W @ 8 Ω
Calculated Maximum: 99 dBSPL 5 W/m
Magnet Type: BeFe Ceramic
Weight: 4.8 oz (136.1 g) nominal
Frequency Response 65 Hz to 17 kHz EIA 426A standard
Coverage Angle Vertical: 90° included angle, -6 dB / 2 kHz, half space nominal
Audio Connections Pre-cut 7" (17.8 cm) color-coded pigtails
Transformer 25/70 V, 16 W / 5-tap, terminal select (5, 2.5, 1.25, 0.63, 0.31 W)
Dimensions Front Plate: 11.62 x 11.62" (29.51 x 29.51 cm)
Top: 5.37" (13.63 cm)
Bottom: 3.00" (7.62 cm)
Weight 10.0 lb (4.5 kg)
Packaging Info
Package Weight 9.1 lb
Box Dimensions (LxWxH) 12.205 x 12.126 x 9.213"
The user manual for the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2 can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Quam-Nichols users keep a unique electronic library for Quam-Nichols install speakerss, where you can use our link to download the user manual for the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2.

The user manual lists all of the functions of the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Quam-Nichols service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Quam-Nichols SYSTEM 2 Wall Mount Speaker System SYSTEM 2. User manuals are also available on the Quam-Nichols website under Pro Audio - Installation Sound - Install Speakers.
