User manual Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN

Operating instructions and pdf manual for use - Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN User manual, User manual Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN, Quested, Q212D, Active, 3-Way, Monitoring, Syste

User manual for Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN

Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN
  • Manufacturer: Quested
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your Quested
  • Settings and expert assistance
  • Contact Quested service
  • Troubleshooting
  • Warranty information
  • Price: 34 USD
We recommend checking out our discussion threads on the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN, which address similar problems with connecting and setting up Studio Monitors Quested.


User manual for the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN

The user manual for the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

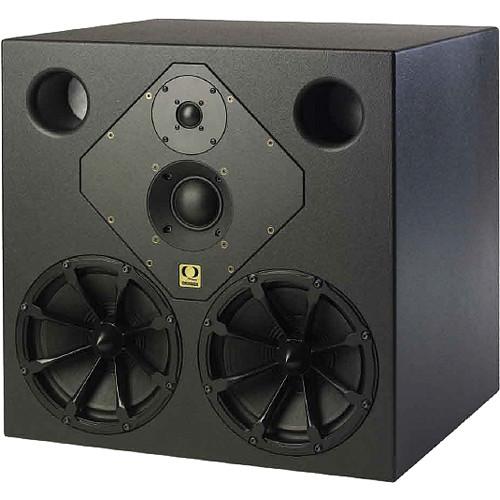

The Q212D Monitoring System from Quested includes a three-way active speaker designed to be main monitors for mid-sized control rooms or as a component of a multichannel system in a large control room. The system comprises two 12" low frequency drivers, one 3" mid frequency driver, and one 1.5" high frequency driver that combine to provide effortless and articulate performance with sound pressure levels of 123 dB. The monitor is supplied with a separate electronics package containing one AP1300 amplifier, two AP800 amplifiers, and the SM748 electronic crossover/loudspeaker management system. The Q212 ships with four IEC power cables.
If you own a Quested studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN:
Specifications
    Q212D
    Driver Bass: 2 x 12" / 38 cm
    Mid: 3" / 7.5 cm
    High: 1.5" / 3.7 cm
    Maximum SPL 126 dB at 1 m
    Frequency Response 20 Hz to 20 kHz ±2 dB
    Input Connections Gold Plated Binding Post: Twin pair
    Accepts 0.2" / 0.4 cm banana plugs or bare wires
    Amplifier (Power) Bass: 1250 W (RMS) into 4 Ohms
    Mid: 450 W (RMS) into 8 Ohms
    High 450: 450 W (RMS) into 8 Ohms
    Crossover Point Low: 450 Hz Linkwitz-Riley 24 dB/oct
    High: 4.5 kHz Linkwitz-Riley 24 dB/oct
    Dimensions (W x H x D) 27.6 x 27.6 x 25.2" / 70.0 x 70.0 x 64.0 cm
    Weight 176.4 lb / 80.0 kg
    AP800
    Power Rating 450 W into 8 ohms
    770 W into 4 ohms
    Damping Factor 400 @ 8 ohms 1 kHz
    Input Sensitivity +7 dBm
    Input Impedance 10 kOhms
    Gain 33 dB
    Frequency Response 20 Hz to 20 kHz
    Signal to Noise Ratio Not specified by manufacturer
    Total Harmonic Distortion (THD) 0.005%
    Input Connections 3-pin XLR
    Output Connectors Shrouded Binding Posts: 4 mm
    Controls Front Panel On/Off, rotary potentiometers, mute
    Controls Rear Panel 2/4 or 4/8 switch, stereo or bridged switch
    Indicators Peak meters, mute, fault/DC & limit, bridged, power, temperature
    Cooling Temperature warnings and 2 fans to assist
    Power Consumption Not specified by manufacturer
    Power Requirements 230 VAC @ 10 A max
    120 VAC @ 20 A max
    Dimensions 19 x 1.75 x 15" (48.2 x 8.8 x 38.1cm)
    Weight 51 lbs (23kg)
    AP1300
    Power Rating Watts RMS per channel
    16 ohms: 400
    8 ohms: 750
    4 ohms: 1250
    3 ohms: 1600
    2 ohms:  1800
    Damping Factor 1 kHz, 8 ohms
    Input Sensitivity 80 dB
    Input Impedance 10 kOhms
    Gain 33 dB
    Frequency Response 20 Hz to 20 kHz
    Signal to Noise Ratio Not specified by manufacturer
    Total Harmonic Distortion (THD) 0.008%
    Input Connectors 3-pin XLR
    Output Connectors Shrouded Binding Posts: 4 mm
    Controls Front Panel Level controls, mute, link switch, signal limiters, temperature
    Controls Rear Panel 2 ohm and bridged LEDs
    Indicators Level indicators, fault indicators, clip warning, 2 ohms, and bridged LEDs
    Cooling Cooling fans and temperature controls
    Power Consumption Not specified by manufacturer
    Power Requirements 230 VAC @ 20.0 A max
    120 VAC @ 38.0 A max
    Dimensions (W x H x D) 18.9 x 5.1 x 18.1" (48 x 13 x 46cm)
    Weight 70.5 lbs (32kg)
    SM-748
    Filter Type Bessel/Butterworth/Linkwitz-Riley 12-24-48 dB/8ve
    Bessel/Butterworth 18 dB/8ve
    Operating Modes Input: 2/4
    Output: 4/6/8
    Crossover Frequencies Parametric EQ (8 per Input / 9 per Output):
    Gain: +15 dB to -30 dB in 0.1 db steps
    Frequency: 19.7 Hz to 32 kHz, 136 octave steps
    Q/BW: 0.4 to 128 / 2.5 to 0.008
    (Sections can be switched to shelving response)

    High and Low-pass Filters (1 of each per output):
    Frequency HPF: 10 Hz to 16 kHz, 1/36 octave steps
    Frequency LPF: 35 Hz to 22 kHz, 1/36 octave steps

    Gain Range Input: +6 dB to -40 dB in 0.1 dB steps
    Output: +15 dB to -40 dB in 0.1 dB steps and mute
    Front Panel Switches 12 x Mute buttons
    12 x Channel edit buttons
    6 x Utility buttons
    3 x Rotary encoders
    Inputs Analog: 4 x XLRf
    Digital: Not specified by manufacturer
    Outputs Analog: 8 x XLRm
    Digital: Not specified by manufacturer
    Maximum Input Level Not specified by manufacturer
    Maximum Output +20 dBm into 600 ohms
    Frequency Response 20 Hz to 20 kHz, +1/2dB (-3dB @ 32kHz)
    Dynamic Range >116 dB, 20 Hz to 20 kHz unweighted
    Noise Not specified by manufacturer
    Display 2 x 24 character LCD
    2 x 6 point input and 8 x6 point output meters
    Dimension 19 x 11.8 x 1.75" (482 x 300 x 45mm)
    Weight 7.3 lbs (3.3 kg)
    Specialties Program limiter and look-ahead "D-Max" limiter per output

    Program Limiter:
    Threshold: +22 dBu to -10 dBu
    Attack: 0.3 to 90 mSec
    Release: 2/4/8/16/32 x Attack time

    D-Max Limiter:
    Attack: 60 µS
    Release: Slow/Medium/Fast



    The user manual for the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Quested users keep a unique electronic library for Quested studio monitorss, where you can use our link to download the user manual for the Quested Q212D Active 3-Way Monitoring System with Amp Q212D/DN.
