User manual for the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800

The user manual for the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

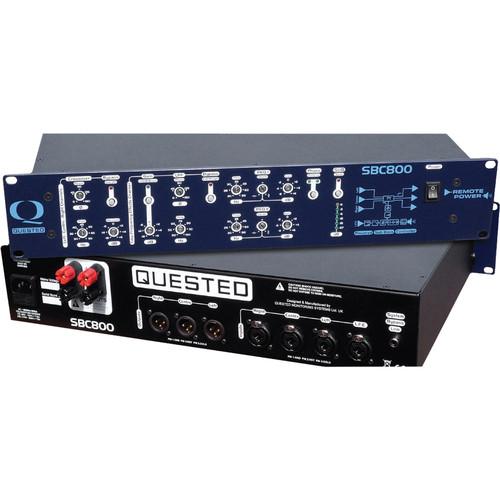

The 800W SBC800 Powered LFE/Sub-Bass and LCR Controller from Quested is a bass management tool for music and film production designed to improve the low frequency response of surround sound or film monitoring systems. It has enough power and connectivity to support up to three X12 or X15 subwoofers (not included). Its back panel features individual LCR inputs and outputs as well as an LFE input, while its front panel provides adjustable controls of gain and phase for each section independently. The SBC800 provides EQ for all outputs and amplification for subwoofer outputs. The mono output is 800W into 4Ω and output level is monitored with an LED display. This unit is rack-mountable (2RU).
If you own a Quested system processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800:
Specifications
    Connectors 4 x XLR and 1/4" combination sockets, inputs female
    3 x XLR outputs, male
    2 pairs of 4 mm banana socket, speaker binding posts +/- , female
    1 x 3.5 mm phone jack, system bypass link and remote switching, female
    1 x IEC, power input
    Impedance XLR and 1/4" Combination Sockets: 10 kΩ, electronically balanced
    XLR Outputs: <100 Ω, electronically balanced
    High Pass Filter -3 dB at 7 Hz, 24 dB/Oct
    Low Pass Filter -3 dB at 100 kHz
    Controls Left, Center, Right (LCR) Channel:
    Phase: 0 - 180°
    Frequency: 30 Hz - 90 Hz, adjustable crossover frequency
    Bypass/Sub-Off: Switches LCR inputs directly to LCR outputs
    Mix Level: -16 dB to +6 dB relative to LCR input

    Low Frequency Effects (LFE) Channel:
    Gain: -16 dB to +6 dB relative to LCR input
    +10 dB Boost: Switched, for LFE input
    Frequency: 50 Hz - 150 Hz, adjustable low pass filtering
    Phase: 0 - 180°
    Bypass: Switched, for LFE section

    Parametric Equalizer (PEQ) Section:
    Frequency: 20 - 90 Hz
    Width: Q Factor 0.5/3.0
    Gain: -6 dB to +6 dB
    Phase/Polarity: 180° phase reversal
    Sub Solo: Mutes all outputs except subwoofers
    Mono Output 800 W @ 4Ω
    400 W @ 8Ω
    Hum and Noise <-105 dB (referred to clip level)
    THD <0.03% at levels up to 1 dB below clip level
    Power Requirements 115 / 230 VAC, 50/60 Hz
    Operation 115 VAC (80 to 127 VAC maximum)
    230 VAC (160 to 255 VAC maximum)
    Power Consumption 45 W (quiescent current)
    Dimensions 19.0 x 3.5 x 11.8" (48.2 x 8.8 x 30.0 cm)
    Weight 23.1 lb (10.5 kg)
    The user manual for the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800 can be downloaded in .pdf format if it did not come with your new system processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Quested users keep a unique electronic library for Quested system processorss, where you can use our link to download the user manual for the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800.

    The user manual lists all of the functions of the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800, all the basic and advanced features and tells you how to use the system processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Quested service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Quested SBC800 Powered LFE/Sub-Bass and LCR Controller SBC800. User manuals are also available on the Quested website under Pro Audio - Installation Sound - System Processors.
