User manual Radial Engineering The JDX Reactor and Phazer Kit R800 1225

Operating instructions and pdf manual for use - Radial Engineering The JDX Reactor and Phazer Kit R800 1225 User manual, User manual Radial Engineering The JDX Reactor and Phazer Kit R800 1225, Radial, Engineering, The, JDX, Reactor, Phazer, Kit, R


User manual for Radial Engineering The JDX Reactor and Phazer Kit R800 1225

Radial Engineering The JDX Reactor and Phazer Kit R800 1225
  • Manufacturer: Radial Engineering
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - In-Line Mic Accessories
  • Safety instructions
  • Startup and operation of the in-line mic accessories
  • Tips for setting up your Radial Engineering
  • Settings and expert assistance
  • Contact Radial Engineering service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Radial Engineering The JDX Reactor and Phazer Kit R800 1225, which address similar problems with connecting and setting up In-Line Mic Accessories Radial Engineering.



User manual for the Radial Engineering The JDX Reactor and Phazer Kit R800 1225

The user manual for the Radial Engineering The JDX Reactor and Phazer Kit R800 1225 provides necessary instructions for the proper use of the product Pro Audio - Recording - In-Line Mic Accessories.

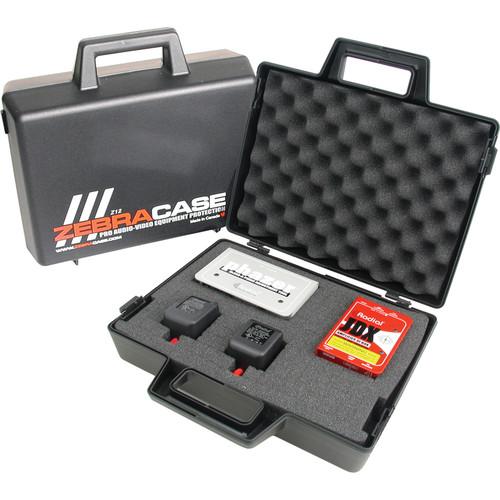

The JDX Reactor and Phazer Kit from Radial Engineering pairs together the JDX Guitar Amp Direct Box and Phazer Class-A Phrase Adjuster in a kit. The JDX Reactor and Phazer Kit is designed to deliver warmer guitar tones for musicians using a guitar amp-head and speaker-cabinet in various environments such as for studio, stage, rehearsals and more
If you own a Radial Engineering in-line mic accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Radial Engineering The JDX Reactor and Phazer Kit R800 1225 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Radial Engineering The JDX Reactor and Phazer Kit R800 1225:
JDX Reactor Guitar Amp Direct Box
Audio Circuit Type Discrete class-A-transformer isolated
Frequency Response Not specified by manufacturer
Dynamic Range 114 dB
Noise Floor -100 dBu below 0 dBu
Maximum Input 600W @ 4 Ω 300 W @ 8 Ω 150 W @ 16 Ω
Maximum Output +14 dBu (clip level)
Thermal Input Limit +49 VAC (from amplifier)
Total Harmonic Distortion (THD) <0.015 % (+10 dBu input @ 1 kHz)
Polarity Reverse: 180 ° (Inverts signal polarity at the XLR output)
Ground Lift Disconnects ground at the input transformer
Filter Active speaker emulation band-pass filter
XLR Configuration AES standard (pin-2 hot)
Power +15 VDC/400 mA adapter
Construction 14 gauge steel chassis and outer shell
Dimensions (W x L x H) 5.00 x 6.25 x 2.00" (127 x 159 x 51 mm)
Weight 2.80 lb (1.28 kg)
Phazer Class-A Phase Adjuster
Audio Circuit Type Active analog phase adjustment
Number of Channels Mono
Frequency Response 20 Hz ~ 20 kHz (± 0.5 dB)
Signal to Noise Ratio 77 dB
Dynamic Range 94 dB
Maximum Input +11.5 dBu @ 1 kHz, 1 % THD+N
Total Harmonic Distortion 0.005 % @ 1 kHz, -10 dBu output
Input Impedance 10 k Ω, balanced
Output Impedance 2 k Ω, balanced
Low Pass Filter Variable range, 300 Hz ~ 3.8 kHz / 3.8 kHz ~ 38 kHz
Ground Lift Disconnects XLR pin-1 at XLR output
Phase Reverse Inverts the signal phase at the output
XLR Configuration AES standard (pin-2 hot)
Connectors 2 x 1/4" (6.3mm) TRS input and output
2 x XLR balanced input and output
Construction 14 gauge steel chassis and outer shell
Power +15 V DC/400 mA power supply
Dimensions (WxHxD) 4.5 x 2.0 x 6.0" (121 x 64 x 147 mm)
Weight 2.8 lb (1.3 kg)
Packaging Info
Package Weight 8.05 lb
Box Dimensions (LxWxH) 14.9 x 13.7 x 5.0"
The user manual for the Radial Engineering The JDX Reactor and Phazer Kit R800 1225 can be downloaded in .pdf format if it did not come with your new in-line mic accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Radial Engineering users keep a unique electronic library for Radial Engineering in-line mic accessoriess, where you can use our link to download the user manual for the Radial Engineering The JDX Reactor and Phazer Kit R800 1225.

The user manual lists all of the functions of the Radial Engineering The JDX Reactor and Phazer Kit R800 1225, all the basic and advanced features and tells you how to use the in-line mic accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Radial Engineering service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Radial Engineering The JDX Reactor and Phazer Kit R800 1225. User manuals are also available on the Radial Engineering website under Pro Audio - Recording - In-Line Mic Accessories.
