User manual Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII

Operating instructions and pdf manual for use - Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII User manual, User manual Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII, Rane, TTM57, MKII, 2-Channel, DJ, Mixer, with, Integ


User manual for Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII

Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII
  • Manufacturer: Rane
  • Basic description and contents of package
  • Product classification: Pro Audio - DJ Equipment - DJ Mixers
  • Safety instructions
  • Startup and operation of the dj mixers
  • Tips for setting up your Rane
  • Settings and expert assistance
  • Contact Rane service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII, which address similar problems with connecting and setting up DJ Mixers Rane.



User manual for the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII

The user manual for the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Mixers.

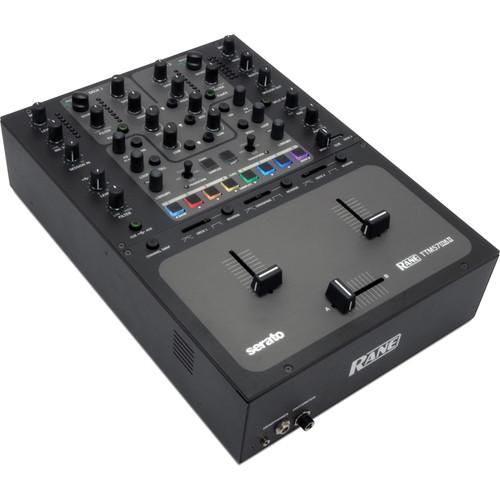

The TTM-57 MKII from Rane is a professional two-channel DJ mixer designed with a 2-port integrated USB interface and control surface for use with Serato Scratch DJ software. The design eliminates the need for the external USB interface box and allows two DJ's to connect simultaneously for quick and easy changeovers.
If you own a Rane dj mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII:
Analog Inputs 4 x stereo unbalanced RCA jacks
Phono or Line level input, rear panel switches for each input
Phono Response: RIAA ±1 dB
Gain: 31 dB at 1 kHz
Rumble Filter: Butterworth 3rd-order infrasonic
Max Phono Input: 126 mV
Max Line Input: 4 Vrms
Audio Converters ADC: 24-bit / 48 kHz
Dynamic Range: 102 dB A-weighted
DAC: 24-bit / 48 kHz
Dynamic Range: 108 dB A-weighted
DSP 32-bit floating point
USB Audio Five stereo record, five stereo playback per USB port
44.1, 48, or 96 kHz, 32-bit floating point
Effects FlexFX Send: Stereo RCA
FlexFX Return: Stereo RCA
Switchable between +4 and -10
Mic Input Balanced XLR/TRS combo jack
Tone Control: Single-knob High / Low
Mic / Line level switch to connect a wireless receiver
Frequency Response Line In to Line Out: 20 Hz to 20 kHz (±0.25 dB)
Dynamic Range 101 dB A-weighted
THD + N <0.01% re 0 dBFS (20 to 20 kHz, 20 kHz BW)
Line Outputs Unbalanced Jacks (RCA & FlexFX): Maximum 4 Vrms
Balanced Jacks (Main 1/4˝): Maximum 8 Vrms
Power Internal Universal Power Supply: 100 to 240 VAC, 50 to 60 Hz, 15 W max
Dimensions (L x W x H) 14.0 x 10.0 x 4.0" / 35.6 x 25.4 x 10.2 cm
Weight 8.0 lb / 3.6 kg
Packaging Info
Package Weight 14.8 lb
Box Dimensions (LxWxH) 19.25 x 15.0 x 7.75"
The user manual for the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII can be downloaded in .pdf format if it did not come with your new dj mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rane users keep a unique electronic library for Rane dj mixerss, where you can use our link to download the user manual for the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII.

The user manual lists all of the functions of the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII, all the basic and advanced features and tells you how to use the dj mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rane service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rane TTM57 MKII 2-Channel DJ Mixer with Integrated TTM57MKII. User manuals are also available on the Rane website under Pro Audio - DJ Equipment - DJ Mixers.
