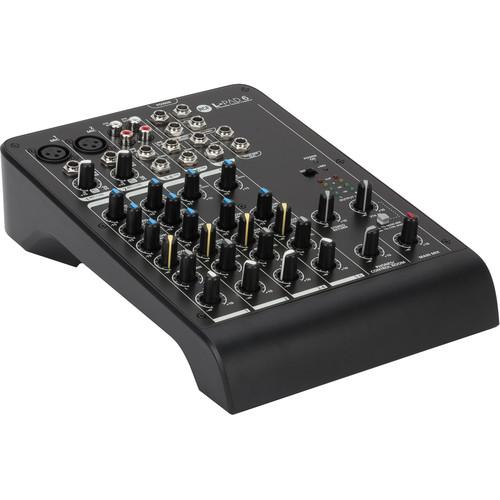

The LIVEPAD L-PAD 6 6-Channel Mixing Console from RCF is a compact audio mixer designed to offer the user enhanced flexibility. RCF Italian engineering has created this mixing tool designed specifically for live audio applications - from the performance of a Rock band or a Jazz quartet, to supporting a conference room or a media center, and almost anything in between.
The L-PAD 6 mixer includes two mic inputs, each with low, mid and high equalization, two stereo line inputs, with two bands of EQ, and a 2-track in and out section with RCA connectors. There's even aux send circuitry and phantom mic powering.
This setup is designed to work well for one man bands, speech, background music, DJs, and parties. All of this in a small, easy-to-carry unit. It's even possible to install the LIVEPAD on a mic stand with the optional dedicated accessories (sold separately). The L-PAD 6 is powered by an included, external PSU 18V, 1000 mA power supply.
If you own a RCF sound reinforcement mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the RCF LIVEPAD L-PAD 6 6-Channel Mixing Console LPAD 6 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RCF LIVEPAD L-PAD 6 6-Channel Mixing Console LPAD 6:
Specifications
Mic/Line Inputs
2 x XLR, balanced Frequency response: 10 Hz to 55 kHz, +/-3 dB Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted Gain range: 0 to -50 dB Max input: +15 dB SNR: <-100 dBr, A-weighted Phantom power: +48 V with switch control
Line Inputs
1/4" TRS, balanced Frequency response: 10 Hz to 55 kHz, +/-3 dB Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted Sensitivity range: +15 to -35 dB
Stereo Input Channels
2 x Pair, 1/4" TRS, unbalanced Frequency response: 10 Hz to 55 kHz, +/-3 dB Distortion (THD + N): <0.03% @ +0 dB, 22 Hz to 22 kHz, A-weighted Sensitivity range: +22 dB SNR: <-100 dBr, A-weighted
Mono Channel Input EQ
High: +/-15 dB @ 12 kHz Mid: +/-15 dB @ 2.5 kHz Low: +/-15 dB @ 80 Hz
Stereo Input Channel Equalization
High: +/-15 dB @ 12 kHz Low: +/-15 dB @ 80 Hz
Two-Track In
Tape Inputs: RCA jack Frequency response: 10 Hz to 55 kHz, +/-3 dB Distortion (THD + N): <0.03% at +0 dB, 22 Hz to 22 kHz, A-weighted Gain Range: OFF to +10 dB
Stereo Return
Input: 1/4" TRS, unbalanced Frequency response: 10 Hz to 55 kHz, +/-3 dB Distortion (THD + N): <0.03% at +0 dB, 22 Hz to 22 kHz, A-weighted Gain Range: OFF to +10 dB SNR: <-100 dBr, A-weighted
Input Impedances
Microphone: 3.6 kOhms All other: 10 kOhms or greater
Output Impedances
Tape out: 1 kOhms All other: 120 Ohms
DSP Section
None
Main Mix
Max. Main Mix output: +22 dBu, unbalanced Aux range: OFF to +10 dB Fader range: OFF to +10 dB Phones/Control Room range: OFF to +10 dB
Hum & Noise: <-80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum
Crosstalk: <-80 dB @ 20 Hz to 22 kHz, A-weighted, 1 channel & MAIN level: 0 dB, other channels: minimum
Power Supply
AC adapter, 18 VAC, 1000 mA Power consumption: 17 W (all loaded)
