User manual for the RDL D-XLR2F Decora Wall Plate with Dual XLR 3-Pin Female D-XLR2F
The user manual for the RDL D-XLR2F Decora Wall Plate with Dual XLR 3-Pin Female D-XLR2F provides
necessary instructions for the proper use of the product A/V Presentation - Cables & Accessories - Floor, Wall & Table Boxes.

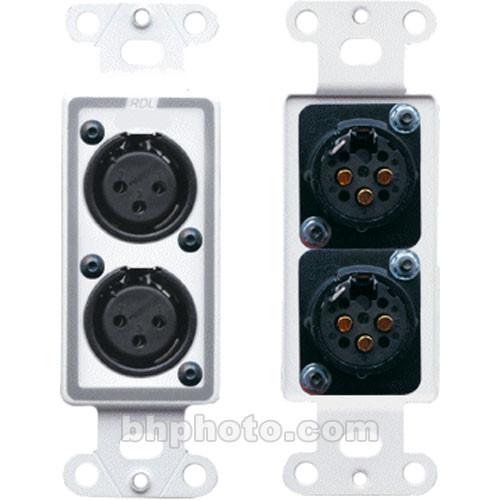

The white D-XLR2F Decora Wall Plate from RDL features two XLR 3-pin female connectors with solder type contacts. This unit can be mounted in WB-1U and WB-2U Universal Wall Boxes (not included).
If you own a RDL floor, wall & table boxes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the RDL D-XLR2F Decora Wall Plate with Dual XLR 3-Pin Female D-XLR2F in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL D-XLR2F Decora Wall Plate with Dual XLR 3-Pin Female D-XLR2F:
Specifications
Connector
2 x XLR 3-pin female jacks
Dimensions (W x H x D)
1.3 x 4.1 x 0.8" (33.0 x 104.1 x 19.6 mm) excluding protrusions
