User manual for the RDL DB-CIJ3D Consumer Stereo Input Jack (Black) DB-CIJ3D
The user manual for the RDL DB-CIJ3D Consumer Stereo Input Jack (Black) DB-CIJ3D provides
necessary instructions for the proper use of the product A/V Presentation - Cables & Accessories - Floor, Wall & Table Boxes.

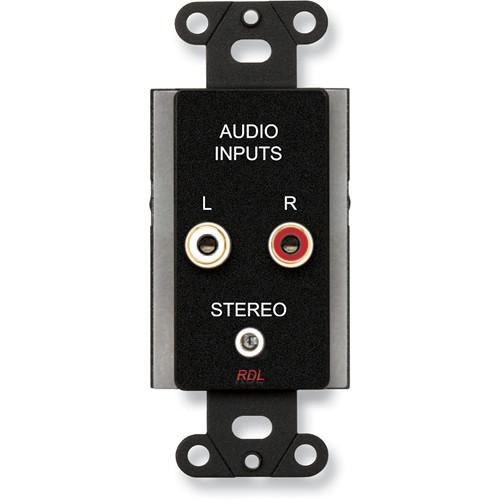

The black DB-CIJ3D Consumer StereoInput Jack from RDL is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10kΩ or higher input impedance line-level module or equipment inputs. It is used in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.
If you own a RDL floor, wall & table boxes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the RDL DB-CIJ3D Consumer Stereo Input Jack (Black) DB-CIJ3D in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL DB-CIJ3D Consumer Stereo Input Jack (Black) DB-CIJ3D:
Specifications
Input Connectors
3 x Phono jacks with gold contacts (left and right), mini-jack 3.5 mm (stereo)
Frequency Response
50 Hz to 20 kHz (±1 dB) 30 Hz to 20 kHz (±2 dB)
Crosstalk
<-80 db (1 khz) <-60 dB (10 Hz to 20 kHz)
THD
< 0.2% (1 kHz)
Output Connector
Detachable terminal block
Ambient Operating Temperature
32 to 131°F (0 to 55°C)
Mounting Box
Dimensions (W x D): 1.80 x 1.75" (4.57 x 4.45 cm) minimum
