User manual for the RDL RU-ADA4D - Audio Distribution Amplifier RU-ADA4D

The user manual for the RDL RU-ADA4D - Audio Distribution Amplifier RU-ADA4D provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Distribution Amplifiers.

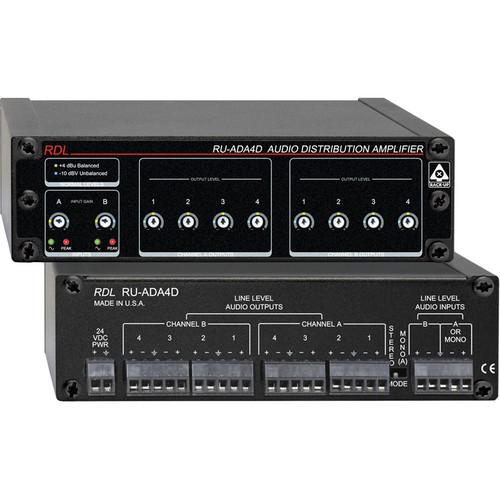

The RU-ADA4D from RDL is a four-channel stereo audio distribution amplifier with input and output gain adjustments and input level metering. The module may be operated in mono to provide up to eight distributed mono signals. The inputs and outputs are connected on rear-panel detachable terminal blocks.

Each of the two line-level inputs accepts either a balanced or an unbalanced signal. Each input is equipped with a front panel trim level. Levels between -14 dBV unbalanced and +9 dBu balanced may be set to the proper operating level as indicated by a dual-LED VU meter. This assures ample headroom at all normal operating levels. The maximum input level is + 25 dBu.

A rear-panel switch selects between stereo and mono operation. In the mono position, input A is used to drive all 8 output channels. When the module is used in a monaural system, only input A must be wired.

Audio outputs are isolated from each other and may be wired balanced or unbalanced. Each of the outputs is provided with a front panel screwdriver adjusted Output Level control. Relative to a balanced +4 dBu output level, this gain potentiometer allows an adjustment range from -9 dB to +6 dB. Relative to an unbalanced -10 dBV output, each output potentiometer allows an adjustment from -3 dB to +12 dB.

The RU-ADA4D offers generous headroom, low distortion, crosstalk isolation, wide frequency response and low noise with high common-mode signal rejection. It provides quality performance for professional audio applications.
If you own a RDL distribution amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RDL RU-ADA4D - Audio Distribution Amplifier RU-ADA4D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL RU-ADA4D - Audio Distribution Amplifier RU-ADA4D:
Specifications
    Audio Input
    Inputs Stereo input (input A /input B) on detachable terminal block
    Input Impedance 20kΩ balanced
    10kΩ unbalanced
    Input Gain -5 dB to +15 dB (rel. +4 dBu balanced)
    -3 dB to +17 dB (rel. -10 dBV unbalanced)
    Input Metering Dual-LED VU meter for Input A and Input B
    Audio Output
    Mono Output Rear-panel switchable (input A feeds all 8 outputs)
    Outputs 4 x stereo (input A /input B) outputs on detachable terminal blocks
    Output Impedance 150Ω balanced
    75Ω unbalanced
    Nominal Output Level +4 dBu balanced
    -10 dBV unbalanced
    Maximum Output Level +24 dBu maximum
    Output Level Adjustment Range -9 dB to +6 dB (rel. +4 dBu, balanced)
    -3 dB to + 12 dBu (rel. -10 dBV, unbalanced)
    Performance
    Frequency Response 10 Hz to 165 kHz ±0.25 dB
    10 Hz to 35 kHz ±0.01 dB
    THD + N < 0.0025% (20 Hz to 20 kHz)
    Headroom > 20 dB (above +4 dBu input or output)
    Noise < -92 dB (below +4 dBu output, 20 Hz to 20 kHz)
    Crosstalk < -90 dB (20 Hz to 5 kHz)
    < -80 dB (5 kHz to 20 kHz)
    CMRR > 90 dB (100 Hz)
    General
    Power Requirement 24 VDC @ 82 mA (idle, nominal), 120 mA max
    Ground referenced
    Operating Temperature Range 32 to 122°F (0 to 50°C)
    Dimensions (W x H x D) 5.74 x 1.64 x 3.54" (14.58 x 4.17 x 9 cm)
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 6.8 x 6.2 x 2.8"
