User manual for Rear View Safety 130° Wireless Backup Camera RVS-7CAM
- Manufacturer: Rear View Safety
- Basic description and contents of package
- Product classification: Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras
- Safety instructions
- Startup and operation of the back-up cameras
- Tips for setting up your Rear View Safety
- Settings and expert assistance
- Contact Rear View Safety service
- Troubleshooting
- Warranty information
- Price: 148 USD
|
We recommend checking out our discussion threads on the Rear View Safety 130° Wireless Backup Camera RVS-7CAM,
which address similar problems with connecting and setting up Back-Up Cameras Rear View Safety.
|
User manual for the Rear View Safety 130° Wireless Backup Camera RVS-7CAM
The user manual for the Rear View Safety 130° Wireless Backup Camera RVS-7CAM provides
necessary instructions for the proper use of the product Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.

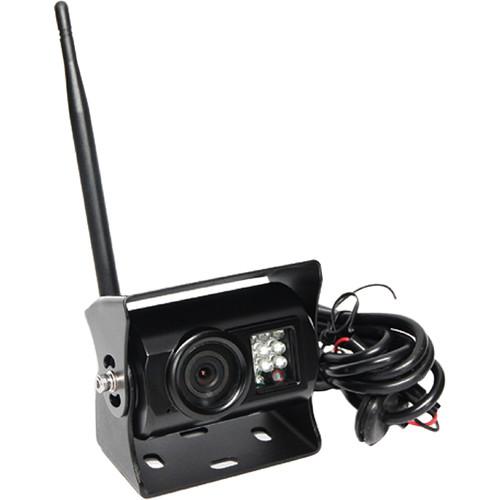

Eliminate blind spots while driving by adding a 130° Wireless Backup Camera from VideoComm Technologies to your existing VideoComm Digital Wireless Camera System. The camera weighs less than a pound and can be mounted to the desired exterior location on your vehicle using self-tapping screws. Encased in an IP68-rated zinc enclosure, the 2.1mm sharp lens offers a viewing angle of 130° and a 480 TVL resolution. Nine infra-red LED lights allow for night vision up to 50' away, and foam is included around the lens to protect the image quality against glare. A built-in power cable and microphone allow the images and sound to be wirelessly sent to a monitor located up to 70' away without interference.
|
If you own a Rear View Safety back-up cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Rear View Safety 130° Wireless Backup Camera RVS-7CAM in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Rear View Safety 130° Wireless Backup Camera RVS-7CAM:
| Material of Construction | Zinc | | Sensor | 1/4" Sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | R = 0.45 to 1.0 | | Resolution | 480 TVL
PAL: 500 x 582
NTSC: 510 x 492 | | Lens | 2.1 mm | | Viewing Angle | 130° | | Sync System | Internal synchronization | | IR Distance | 50.0' / 15.2 m (9 IR LEDs) | | Illumination | 0 Lux (IR On) | | Power Source | 12 to 24 VDC (±10%) | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 1/60 to 1/100,000 sec | | Video Output | 1 Vp-p, 75 ohms | | IR Switch Control | ACDS automatic control | | Impact Rating | 20 G / 100 G | | Compatible Systems | Rear View Safety RVS-W-CAM and RVS-CW-CAM systems | | Operating Temperature & Humidity | -22 to 176°F / -30 to 80°C, 95% RH (max) | | Storage Temperature & Humidity | -22 to 140°F / -30 to 60°C, 95% RH (max) | | Weatherproof Rating | IP68 | | Weight | 1.1 lb / 500.0 g | |
The user manual for the Rear View Safety 130° Wireless Backup Camera RVS-7CAM can be downloaded in .pdf
format if it did not come with your new back-up cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Rear View Safety users keep a unique electronic library
for Rear View Safety back-up camerass,
where you can use our link to download the user manual for the Rear View Safety 130° Wireless Backup Camera RVS-7CAM.
The user manual lists all of the functions of the Rear View Safety 130° Wireless Backup Camera RVS-7CAM,
all the basic and advanced features and tells you how to use the back-up cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Rear View Safety service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Rear View Safety 130° Wireless Backup Camera RVS-7CAM. User manuals are also
available on the Rear View Safety website under Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.
