User manual Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100

Operating instructions and pdf manual for use - Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100 User manual, User manual Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100, Rear, View, Safety, RVS-7707100, Rear, View, Qua


User manual for Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100
  • Manufacturer: Rear View Safety
  • Basic description and contents of package
  • Product classification: Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras
  • Safety instructions
  • Startup and operation of the back-up cameras
  • Tips for setting up your Rear View Safety
  • Settings and expert assistance
  • Contact Rear View Safety service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100, which address similar problems with connecting and setting up Back-Up Cameras Rear View Safety.



User manual for the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100

The user manual for the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100 provides necessary instructions for the proper use of the product Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.

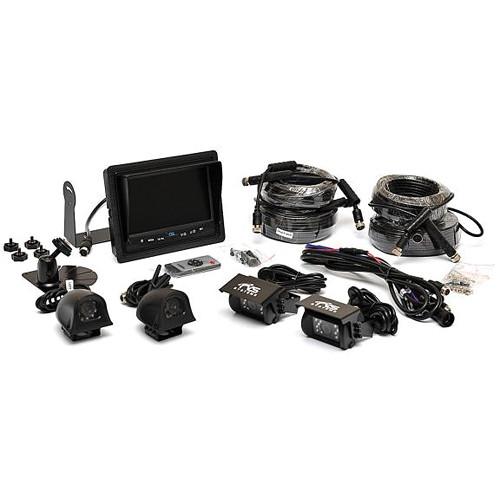

The Rear View Safety RVS-7707100 Rear View Quad Camera System is complete with a crystal clear color 7" (17.78 cm) TFT LCD monitor with Quad View mode and mirror image capability, 2 side cameras with a 120° viewing angle with 50’ (15.24 m) infrared night vision, and 2 heavy-duty 130° angle back-up cameras each with 18 built-in IR illuminators for 50’ (15.24 m) infrared night vision and all the wires, connectors, and mounts you will need. The cameras are completely weatherproof with an IP68 rating. Moreover, these cameras are also shock resistant and have an impact rating of 20G.
If you own a Rear View Safety back-up cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100:
Rear Camera
Resolution 420 TVL (512 x 492 pixels)
Viewing Angle 130° wide angle precision micro lens
Mirror Selectable on / off mirror image function
Illumination 18 high intensity infrared night vision illuminators
Day/Night Vision in night range up to 50' (15.24 m) in total darkness
Connectors Aircraft grade stainless steel weatherproof connectors
Format NTSC
Operation Range 1" (25.4 mm) to infinity fixed focal range
Shock Rating 20G
Vibration Rated for 100G
Dimensions (WxHxD) 3 x 2.5 x 3" (76.2 x 63.5 x 76.2 mm)
Side Camera
Resolution 420 TVL (512 x 492 pixels)
Image Sensor 1/4" Sharp CCD image sensor
Viewing Angle 120° wide angle precision micro lens
Illumination 9 high intensity infrared night vision illuminators
Day/Night Night vision range up to 50' (15.24 m) in total darkness
Connectors Aircraft grade stainless steel weatherproof connectors
Format NTSC
Operation Range 1" (25.4 mm) to infinity fixed focal range
Shock Rating 20G
Vibration Rated for 100G
Monitor
Type High quality Digital 7" (17.74 cm) Color TFT-LCD Wide Screen digital Quad Video Monitor with illuminated controls
Resolution 1440 x 234 resolution
Switching Automatic and manual 4 camera switching capabilities
Dot Pitch 0.107 x 0.372 (H x V)
Contrast 150:1
Brightness 400 cd/m2
Viewing Angle Up: 15°
Down: 35°
Left / Right: 55° maximum viewable monitor offset
Mirror Individual selectable (on / off) horizontal mirror image 360° rotation function for each camera
Image Flip Selectable (up / down) vertical image flip function
Remote Control Full function wireless remote control
Format NTSC and PAL format compatible monitor
Dimensions (W x H x D) 7.2 x 5 x 1.3" (182.88 x 127 x 33.02 mm)
Packaging Info
Package Weight 12.75 lb
Box Dimensions (LxWxH) 12.9 x 10.0 x 7.7"
The user manual for the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100 can be downloaded in .pdf format if it did not come with your new back-up cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rear View Safety users keep a unique electronic library for Rear View Safety back-up camerass, where you can use our link to download the user manual for the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100.

The user manual lists all of the functions of the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100, all the basic and advanced features and tells you how to use the back-up cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rear View Safety service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rear View Safety RVS-7707100 Rear View Quad Camera RVS-7707100. User manuals are also available on the Rear View Safety website under Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.
