User manual for the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813
The user manual for the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813 provides
necessary instructions for the proper use of the product Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.

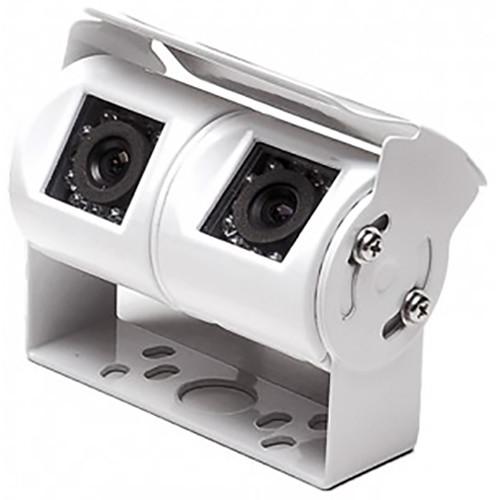

The Rear View Safety Inc RVS-813 Double Lens Backup Camera (RCA Connectors) is a 130° angle double lens backup camera. It features a unique design that allows having 1 mounting with 2 cameras with different viewpoints. The RVS-813 camera boasts a 250,000 pixel, 2.1mm lens with 18 infrared illuminators, which enables you to see in total darkness. The casing of the camera has an IP68 rating, which can withstand all weather conditions. The camera includes two 66' (20.12 m) weatherproof air craft grade cable, which converts to RCA connectors so you can use with any monitor.
|
If you own a Rear View Safety back-up cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813:
| Image Sensor | 1/3" sharp color CCD | | Picture Elements | 250,000 pixels | | Gamma Correction | 0.45 to 1 | | Resolution | 420 TVL, 510 x 492 (H x V) | | Lens | 2.1 mm | | View Angle | 130° | | Sync System | Internal | | IR Distance | 50' (15.24 m) (18 IR LEDs) | | Illumination | 0 lux (LED on) | | Power Source | 12 VDC (±10%) | | S/N Ratio | More than 48 dB | | Electronic Iris | 1/50, 160 to 1/100,000 sec | | Video Output | 1 Vpp 75 Ω | | IR Switch Control | CDS automatic | | Impact Rating | 10G | | Operating Temperature | -40 to 140°F (-40 to 60°C) / RH 95% maximum | | Storage Temperature | -58 to 140°F (-50 to 60°C) / RH 95% maximum | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 3.0" | |
The user manual for the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813 can be downloaded in .pdf
format if it did not come with your new back-up cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Rear View Safety users keep a unique electronic library
for Rear View Safety back-up camerass,
where you can use our link to download the user manual for the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813.
The user manual lists all of the functions of the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813,
all the basic and advanced features and tells you how to use the back-up cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Rear View Safety service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Rear View Safety RVS-813 Double Lens Backup Camera RVS-813. User manuals are also
available on the Rear View Safety website under Surveillance - Vehicle Cameras & GPS Tracking - Back-Up Cameras.
