User manual Reloop PLAY 24-Bit USB DJ Audio Interface PLAY

Operating instructions and pdf manual for use - Reloop PLAY 24-Bit USB DJ Audio Interface PLAY User manual, User manual Reloop PLAY 24-Bit USB DJ Audio Interface PLAY, Reloop, PLAY, 24-Bit, USB, DJ, Audio, Interface, PLAY, Video


User manual for Reloop PLAY 24-Bit USB DJ Audio Interface PLAY

Reloop  PLAY 24-Bit USB DJ Audio Interface PLAY
  • Manufacturer: Reloop
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Reloop
  • Settings and expert assistance
  • Contact Reloop service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD
We recommend checking out our discussion threads on the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY, which address similar problems with connecting and setting up Audio Interfaces & Systems Reloop.



User manual for the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY

The user manual for the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

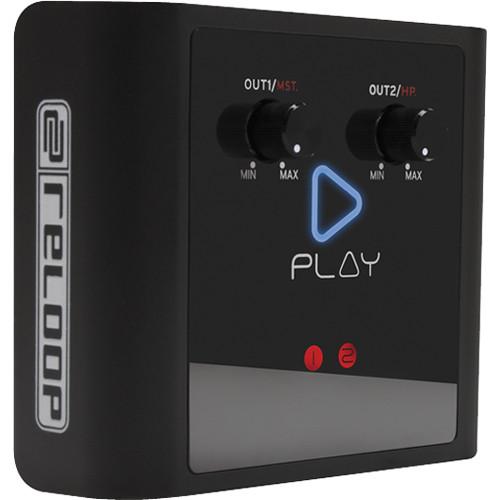

The Reloop PLAY 24-Bit USB DJ Audio Interface is designed for live performance applications. The interface receives audio from a Mac or Windows computer via a high speed low latency USB 2.0 bus powered mini connection at up to 24-bit 96 kHz resolution using ASIO or Core drivers. It can operate in one of two switchable operation modes: external mixer and controller.

In external mixer mode, the audio interface outputs two separate stereo channels via RCA connections on the back of the mixer. This is useful for connecting two channels to a DJ mixer. In controller mode, the interface outputs one channel to an RCA output and the second stereo output to the front panel 1/4" headphone output. This is useful for DJS who play within the computer and need a separate monitor cue output. In both modes, a separate volume control is assigned to the separate outputs. Signal status LED indicator lights provide visual feedback, and a built-in Kensington port allows you to secure the audio interface to a desk or DJ booth.
If you own a Reloop audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Reloop  PLAY 24-Bit USB DJ Audio Interface PLAYDownload user manual for Reloop PLAY 24-Bit USB DJ Audio Interface PLAY
(PDF file, 0.69 MB)
Additional parameters of the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY:
Specifications
    Minimum System Requirements (PC) Windows XP (SP3), Windows 7 (32-/64-bit)
    Pentium III / Intel Core Duo, 1 GHz (minimum)
    512 MB
    Minimum System Requirements (Mac) OS X 10.5/10.6,
    Intel Core Duo family (only Intel Macs)
    512 MB
    Frequency Response Line out: 17 to 20,000 Hz ± 2 dB
    Phones: 17 to 20,000 Hz ± 2 dB
    Output Impedance Line: 47 kΩ
    Headphone: 33 Ω
    Maximum Output With 20 kHz LPF, 1 kHz, A-weighted, THD=0.02%: +7.5 dBV = 9.71 dBu
    Phones: THD <= 1%, > +3.52 dBV (1.5 V) at load = 33 Ω
    S/N Ratio With 20 kHz LPF, A-weighted, 1 kHz: 95 dB
    Phones (with 20 kHz LPF, phones Out = 0 dBV, A-weighted): > 95 dB
    THD + N Phones: < 0.1%
    Channel Separation (R/L) Line (With 20 kHz LPF, A-weighted, 1 kHz): >95 dB at 1 kHz between channels
    Phones (with 20 kHz LPF, A-weighted): >65 dB at 1 kHz between L and R
    Channel Balance Line: within 1 dB
    Phones: within 1 dB
    Power Source USB 5 V, 500 mA
    Dimensions 3.1 x 0.7 x 2.8" (80.0 x 20.0 x 70.0 mm)
    Weight 3 oz (85 g)
    Packaging Info
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 7.7 x 5.4 x 2.8"
    The user manual for the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Reloop users keep a unique electronic library for Reloop audio interfaces & systemss, where you can use our link to download the user manual for the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY.

    The user manual lists all of the functions of the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Reloop service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Reloop PLAY 24-Bit USB DJ Audio Interface PLAY. User manuals are also available on the Reloop website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
