User manual Revo Video Shoulder Support SR-500

Operating instructions and pdf manual for use - Revo Video Shoulder Support SR-500 User manual, User manual Revo Video Shoulder Support SR-500, Revo, Video, Shoulder, Support, SR-500, Video


User manual for Revo Video Shoulder Support SR-500

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Revo  Video Shoulder Support SR-500
  • Manufacturer: Revo
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs
  • Safety instructions
  • Startup and operation of the camcorder supports & rigs
  • Tips for setting up your Revo
  • Settings and expert assistance
  • Contact Revo service
  • Troubleshooting
  • Warranty information
  • Price: 26 USD
We recommend checking out our discussion threads on the Revo Video Shoulder Support SR-500, which address similar problems with connecting and setting up Camcorder Supports & Rigs Revo.



User manual for the Revo Video Shoulder Support SR-500

The user manual for the Revo Video Shoulder Support SR-500 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs.

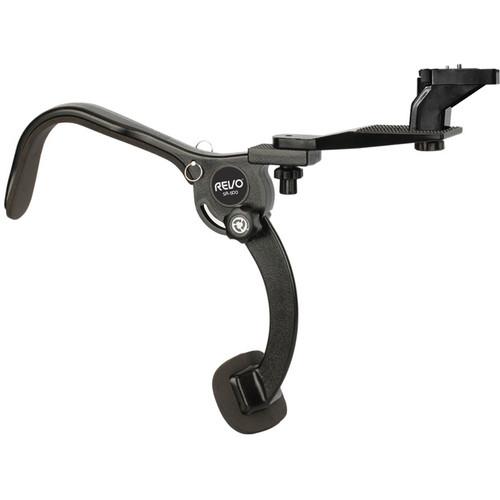

Revo's Video Shoulder Support allows you to keep your DSLR or camcorder fixed steady on your shoulder and will enable you to steadily maneuver the camera, while keeping it focused on a subject.

The rig is both affordable and highly effective, as it wraps tight around your shoulder and balances against your chest, thus providing fixed steadiness. The shoulder mount and chest brace components (the top and bottom parts) are connected by a strong spring-loaded mechanism that causes the two to firmly press against your body vertically. At the same time, a shoulder strap wraps tightly around you horizontally.

The spring-load tension is adjustable by a knob on the side, and the shoulder strap is length-adjustable, so that both can be loosened, to a point at which hand support will be required. Conversely, the tighter you set these, the more fixed the rig will be on your shoulder -- tight enough that you can operate the rig hands-free. This is ideal if you're shooting an event, because you can rest your hands when there's nothing to shoot. Both the shoulder and chest components are foam padded and are made of high-density plastic.

Integrated at shoulder level is a camera baseplate. Included complimentarily are a long plate that attaches to the baseplate and a riser that can attach to the long plate and bring the camera to eye level. Knobbed 1/4" screws are included for attaching these to one another and for mounting a camera. The long plate will extend your camera out about six inches, while also raising it about an inch. The riser will raise your camera approximately three more inches. The riser features a mini quick-release plate that is removable with the flip of a lever. All the plates have rubber pads on them to better support the camera. The rig folds in half and packs into a supplied soft carrying bag.
If you own a Revo camcorder supports & rigs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Revo Video Shoulder Support SR-500 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Revo  Video Shoulder Support SR-500Download user manual for Revo Video Shoulder Support SR-500
(PDF file, 0.32 MB)
Additional parameters of the Revo Video Shoulder Support SR-500:
Material High-density plastic
Foam padding
Load Capacity 6.6 lb on baseplate or long plate (3 kg)
4.4 lb on riser (2 kg)
Dimensions Folds to 21 x 7 x 5" (53 x 18 x 13 cm)
Weight 2.25 lb (1 kg)
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 15.1 x 6.3 x 5.0"
The user manual for the Revo Video Shoulder Support SR-500 can be downloaded in .pdf format if it did not come with your new camcorder supports & rigs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Revo users keep a unique electronic library for Revo camcorder supports & rigss, where you can use our link to download the user manual for the Revo Video Shoulder Support SR-500.

The user manual lists all of the functions of the Revo Video Shoulder Support SR-500, all the basic and advanced features and tells you how to use the camcorder supports & rigs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Revo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Revo Video Shoulder Support SR-500. User manuals are also available on the Revo website under Professional Video - Tripods, Supports & Rigs - Supports & Rigs - Camcorder Supports & Rigs.
