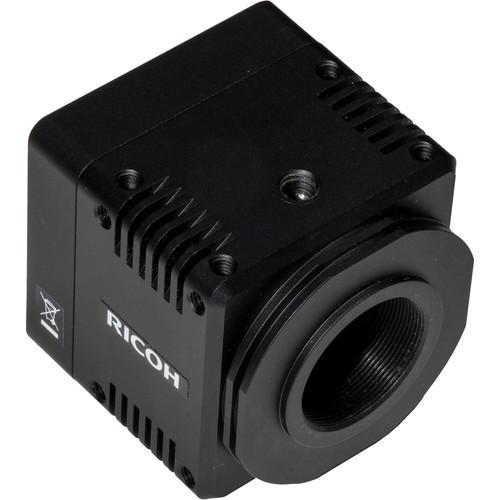

The Ricoh EV-G200B1-3586 2MP Monochrome GigE Vision Extended Depth of Field Camera utilizes the combination of a specialized lens (not included) and image processing algorithm, which provides a depth of field roughly three times that of conventional cameras. This enables capturing images of objects with sharp focus, regardless of the distance from the camera, eliminating the need to frequently adjust the focus or reposition the camera. In addition, subjects in both the background and foreground stay in focus. This camera is suitable for circuit board inspection and inspection in which subjects of varying sizes or depths along a line are captured.
If you own a Ricoh industrial & multi-purpose cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ricoh EV-G200B1-3586 2MP Monochrome GigE Vision Extended 155339 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ricoh EV-G200B1-3586 2MP Monochrome GigE Vision Extended 155339:
Specifications
    Imager 1/1.8" interline UXGA monochrome progressive CCD (ICX274AL)
    Picture Element Active Picture Elements (UXGA): 1624 (H) x 1236 (V)
    Cell Size 4.4 (H) x 4.4 (V) μm
    Lens Mount C-mount
    For Use with EL-CC3586-2M 35mm f/8.6 Fixed Lens
    Vertical Frequency 15.31668 Hz at full resolution
    0.29261 to 61.26674 Hz adjustable via communication (maximum frame rate depends on AOI setting)
    Maximum Frame Rate: 61.26674 Hz, when vertical resolution AOI setting is 230
    Horizontal Frequency 19.176 kHz
    Pixel Frequency 36.818175 MHz
    Minimum Illumination 0.16 lux at f/1.2, 15.31668 Hz
    Synchronization System Internal
    Video Output Format Digital 8-, 10-, or 12-bit raw data
    Exposure Time Preset Continuous Mode: 10 to 16,777,216 μs
    Preset Trigger Mode: 10 to 16,777,216 μs
    Pulse-Width Trigger Mode: 10 μs to unlimited
    Gain 0 to 20.4 dB
    Gamma Gamma 1.0 (factory default) or uploadable gamma table (selectable via communication)
    Input Voltage 10.8 to 26.4 VDC (power/signal connector or Power Over Ethernet connector)

    Power supply from power/signal connector is automatically prioritized.

    Consumption <6.8 W
    Connectors DC iris lens
    RJ45 (GigE Vision Interface with PoE)
    Input/output signal connector for power supply and input/output signal

    Note: The DC iris lens connector is non-functional. It is recommended to use CAT5e or higher Ethernet cable with the RJ45 connector. It is recommended to use Hirose HR10A to 10P-12S connector or equivalent on cable side.
    Operational Temperature 23 to 158°F (-5 to 70°C)

    Temperature of the camera housing (top plate) should not exceed 158°F (70°C).

    Storage Temperature -22 to 149°F (-30 to 65°C)
    Dimensions Camera (W x H x D): 2.0 x 2.0 x 2.1" (50.0 x 50.0 x 53.5 mm) excluding the connector
    Weight Camera: Approximately 6 oz (170 g)
