User manual for the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX
The user manual for the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

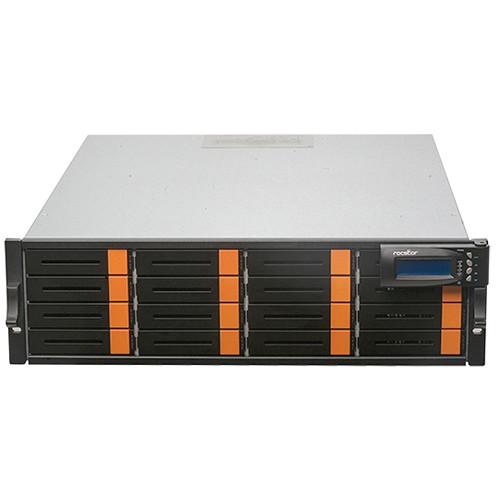

The Rocstor Enteroc S630 SAS Single Controller RAID Enclosure features a single controller along with sixteen 3.5" drive bays in a 3U rack-mountable form factor. Inside its sixteen hot swappable bays are interfaces that can support SAS or SATA 3.5" hard drives. For added reassurance, it is equipped with redundant 500W power supplies and offers RAID support. Additionally, it is equipped with two SAS 6 Gb/s interfaces.
This enclosure is outfitted an 800 MHz dual-core RAID-On-Chip processor that is well designed to manage data. Moreover, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD to provide data redundancy, performance, or both. Further storage expansion is made possible by connecting an optional SAS expansion chassis to the single 6 Gb/s SAS expansion port.
|
If you own a Rocstor nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX:
| Controller | Single | | Host Interface | 2 x 6 Gb/s SAS (SFF-8088) | | Disk Interface | 6 Gb/s SAS, 6 Gb/s SATA | | Expansion | 1 x 6 Gb/s SAS (SFF-8088)
Supports up to 192 disks | | Capacity | Holds 16 disks | | Processor | 800 MHz Dual Core RAID-On-Chip processor | | Cache Memory | 2 GB to 8 GB / 4 GB to 16 GB DDR3-1333 ECC SDRAM | | Battery Backup | Optional | | Management Port | Supported | | RAID Level | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD | | Array Size | Up to 128 | | LUNs | Up to 128 | | Supported Features | Hot spare
Drive roaming
Online rebuild
Variable stripe size
E-mail notification
Online capacity expansion, RAID level / stripe size migration
Online array roaming
Online consistency checker
SMTP manager and SNMP agent
Redundant flash image
Instant availability and background initialization
SMART support
MAID 2.0
Bad block auto-remapping | | Platform | 3U rackmount | | Bays | 16 hot-swap trays
Tray lock | | Indicators | Access / Fail LED | | Backplane | SAS II / SATA III single backplane | | Fans | 2 | | Power | 2 x 500 W with PFC
90 to 264 VAC, 4 to 7.5 A, 47 to 63 Hz | | Humidity (Non-condensing) | 10 to 85% | | Temperature | Operating: 50 to 104°F / 10 to 40°C | | Dimensions (LxWxH) | 23.2 x 19.0 x 3.5" / 590.0 x 482.0 x 88.0 mm | | Weight | 40.1 lb / 18.2 kg | |
The user manual for the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX can be downloaded in .pdf
format if it did not come with your new nas enclosures, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Rocstor users keep a unique electronic library
for Rocstor nas enclosuress,
where you can use our link to download the user manual for the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX.
The user manual lists all of the functions of the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX,
all the basic and advanced features and tells you how to use the nas enclosures.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Rocstor service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Rocstor Enteroc S630 SAS Single Controller RAID R3USDSS6-XXX. User manuals are also
available on the Rocstor website under Computers & Solutions - Drives & Storage - NAS Enclosures.
