User manual Rode RodeLink Wireless Filmmaker Kit RODLNK-FM

Operating instructions and pdf manual for use - Rode RodeLink Wireless Filmmaker Kit RODLNK-FM User manual, User manual Rode RodeLink Wireless Filmmaker Kit RODLNK-FM, Rode, RodeLink, Wireless, Filmmaker, Kit, RODLNK-FM, Video


User manual for Rode RodeLink Wireless Filmmaker Kit RODLNK-FM

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Rode  RodeLink Wireless Filmmaker Kit RODLNK-FM
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM, which address similar problems with connecting and setting up Wireless Systems .



User manual for the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM

The user manual for the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

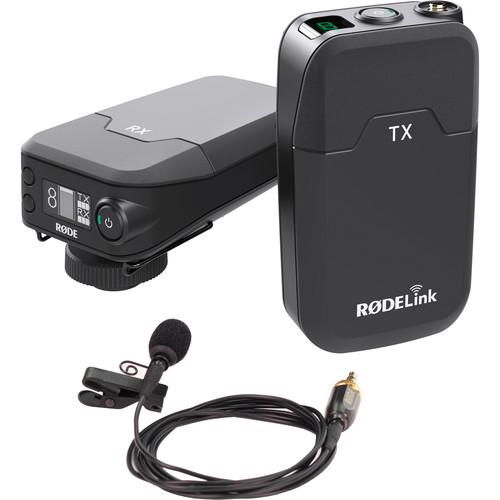

The RodeLink Filmmaker Kit from Rode is a wireless system for film and video production that features a transmitter, receiver, and an included lavalier microphone. The system utilizes a Series II 2.4 GHz 128-bit encrypted digital transmission signal that constantly monitors and hops between frequencies to select the strongest signal. The kit offers a high signal-to-noise ratio and provides a high-resolution 24-bit 44.1 kHz digital transmission of lossless audio at a range of up to 328 ft. Up to 8 systems can be used together simultaneously.
If you own a wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM:
Specifications
    General Specifications
    Transmission Type 2.4 GHz fixed frequency agile system
    Dynamic Range 112 dB
    Range 328 ft (100 m)
    Frequency Range 35 Hz to 22 kHz
    Maximum Output Level 1 Vrms (2.8 V, peak to peak)
    Maximum Input Sound Level 1 Vrms (2.8 V, peak to peak)
    Latency Maximum Latency: 4 ms
    Receiver
    Power Source 2 x AA battery and micro-USB
    Antenna Internal
    Output Connection 3.5 mm TRS jack socket (dual mono with thread lock)
    Output Impedance 300 ohms
    Transmitter
    Power Source 2 x AA battery and micro-USB
    Antenna Internal
    Input Connection Type 3.5 mm TRS jack socket (with thread lock)
    Input Impedance 10 kOhms
    Lavalier Microphone Specs
    Acoustic Principle Pressure gradient
    Active Electronics JFET impedance converter
    Capsule 0.1" / 2.5 mm
    Polar Pattern Omnidirectional
    Frequency Response 60 Hz to 18 kHz
    Output Impedance 3 kOhms
    Max SPL Level 110 dB SPL (@ 1 kHz, 1% THD into 1 ohm load)
    Maximum Output Level 189 dBu (@ 1 kHz, 1% THD into 1 kOhm load)
    Sensitivity -33.5 dB, 1 V/Pascal (21.00 mV @ 94 dB SPL) ±2 dB @ 1 kHz
    Equivalent Noise Level 25 dB-A (A-weighted)
    Physical Dimensions
    Dimensions (H x W x D) Receiver: 4.4 x 2.6 x 2.0" / 11.1 x 6.5 x 5.2 cm
    Transmitter: 4.4 x 2.6 x 1.6" / 11.1 x 6.5 x 4.0 cm
    Lavalier: 47.2 x 0.2 x 0.2" / 120.0 x 0.5 x 0.5 cm
    Weight Receiver: 6.7 oz / 190.0 g
    Transmitter: 6.7 oz / 190.0 g
    Lavalier: 0.04 oz / 1.00 g
    Packaging Info
    Package Weight 1.3 lb
    Box Dimensions (LxWxH) 7.1 x 5.3 x 5.1"
    Rode RodeLink Filmmaker Kit: Hands On Review
    Introducing the RODELink Digital Wireless Audio System
    The user manual for the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for wireless systemss, where you can use our link to download the user manual for the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM.

    The user manual lists all of the functions of the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM. User manuals are also available on the website under Pro Audio - Location Sound - Wireless Systems.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Rode RodeLink Wireless Filmmaker Kit RODLNK-FM

    Post new comment to Rode RodeLink Wireless Filmmaker Kit RODLNK-FM

    Subject: user manual
    Date: 13.12.2021 20:58:44Author: Ken
    please send
    Reply

    Subject: camera shoe mount broken
    Date: 14.09.2021 23:48:34Author: Rebecca
    These mics came with a spare camera shoe mount, but they don't attach to the spiral mount permanently attached to the rodelink device. It's frustrating
    Reply

    Subject: Kit RODLNK-FM
    Date: 18.08.2020 14:38:21Author: Rick
    Hello, could you please send me rodelink filmaker manual in spanish. Thank you in advance

    Reply

    Subject: Wrong Info
    Date: 27.08.2016 14:49:10Author: myrto
    It is not possible to use 8 devices at the same time.Relevant information is available at the FAQ section on Rode's website
    Reply

    Subject: Manual em Portugues Pdf
    Date: 04.06.2016 03:53:24Author: Eddy Diaz
    Bom dia, preciso do manual RODELink FilmMaker em Portugues ou Espanhol.
    Muito obrigado
    Reply
