User manual for the Roland Boutique JU-06 Synthesizer Module JU-06

The user manual for the Roland Boutique JU-06 Synthesizer Module JU-06 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Modules.

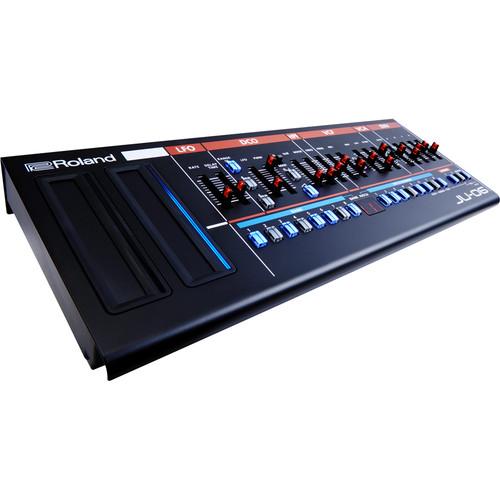

The Roland Boutique JU-06 Synthesizer Module is a recreation of the iconic Juno-106 synthesizer. The new 4-voice JU-06 module features 23 parameters controllable via the front panel and delivers that classic Juno sound, complete with the sought after Juno chorus effect. There are some new additions too, including a faster LFO and continuously variable hi-pass filter (HPF). You can even slide the JU-06 into the optional K-25m keyboard unit for a self-contained, portable synth experience.

The JU-06 also features an on-board 16-step sequencer that lets you quickly try out new ideas such as bass lines and melodies, without the need of even a keyboard controller. It also has a chain mode that allows you to link multiple JU-06 modules using the MIDI ports, adding an additional 4 voices of polyphony.
If you own a Roland synthesizer modules and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland Boutique JU-06 Synthesizer Module JU-06 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland Boutique JU-06 Synthesizer Module JU-06:
Specifications
Polyphony 4 voices
User Memory 64 (8 patches x 8 banks)
Controllers VOLUME knob
Ribbon controllers 1, 2

LFO Section
RATE slider
DELAY TIME slider

DCO Section
RANGE buttons 16', 8', 4'
LFO slider
PWM slider
PWM mode switch
SQUARE, SAW buttons
SUB oscillator slider
NOISE slider

HPF Section
CUTOFF FREQ slider

VCF Section
CUTOFF FREQ slider
RESONANCE slider
Polarity switch
ENV slider
LFO slider
KEY FOLLOW slider

VCA Section
Control signal switch
VCA level slider

ENV Section
Attack Time slider
Decay Time slider
Sustain Time slider
Release Time slider

CHORUS Section
CHORUS 1, CHORUS 2 buttons

BANK 1-8 buttons
PATCH NUMBER 1-8 buttons
MANUAL button

Power switch
Effects Chorus
Delay
Step Sequencer 16 step
16 pattern
Nominal Input Level INPUT jack: -0 dBu
Display 7 segments, 2 characters (LED)
Connectors PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
INPUT jack: Stereo miniature phone type
MIDI: IN, OUT connectors
USB port: MicroB type (Audio, MIDI)
Power Supply Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power
Current Draw 500 mA (USB Bus power)
Expected Battery Life Rechargeable Ni-MH battery: Approx. 6 hours under continuous use (This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use)
Options Keyboard Unit: K-25m
Dimensions 11.8 x 5.0 x 1.8" / 300.0 x 128.0 x 45.0 mm
Weight 33.2 oz / 940.0 g
Packaging Info
Package Weight 3.2 lb
Box Dimensions (LxWxH) 13.937 x 7.008 x 2.913"
The user manual for the Roland Boutique JU-06 Synthesizer Module JU-06 can be downloaded in .pdf format if it did not come with your new synthesizer modules, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Roland users keep a unique electronic library for Roland synthesizer moduless, where you can use our link to download the user manual for the Roland Boutique JU-06 Synthesizer Module JU-06.

The user manual lists all of the functions of the Roland Boutique JU-06 Synthesizer Module JU-06, all the basic and advanced features and tells you how to use the synthesizer modules. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Roland service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Roland Boutique JU-06 Synthesizer Module JU-06. User manuals are also available on the Roland website under Pro Audio - Musical Instruments - Synthesizer Modules.
